Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  4.0寸480*800分辨率IPS全視角高亮/TFT-H040B5WVIIL4N45

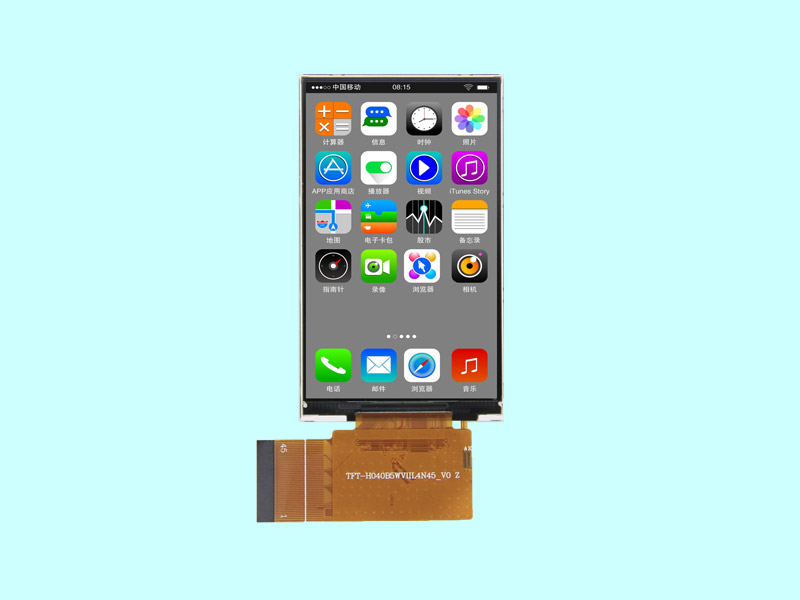

  • Model : 4.0 inch/ 480*800 resolution/ IPS /TFT-H040B5WVIIL4N45

    Product type:TFT LCD

    Show contents:480x800

    Outline size(mm) :57.14x96.85x2.1

    Size of View Window(mm):4.0

    Display size(mm) :4.0

    Effective size(mm):51.84x86.4

    Product application:Instruments and apparatus

    Visual angle:Full View

    Backlight type or brightness:400cd/m2

    Connection PIN Number:FPC-45PIN

    Interface mode:RGB

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:2.8v

    Driver chip model:ILI9806E

Product description

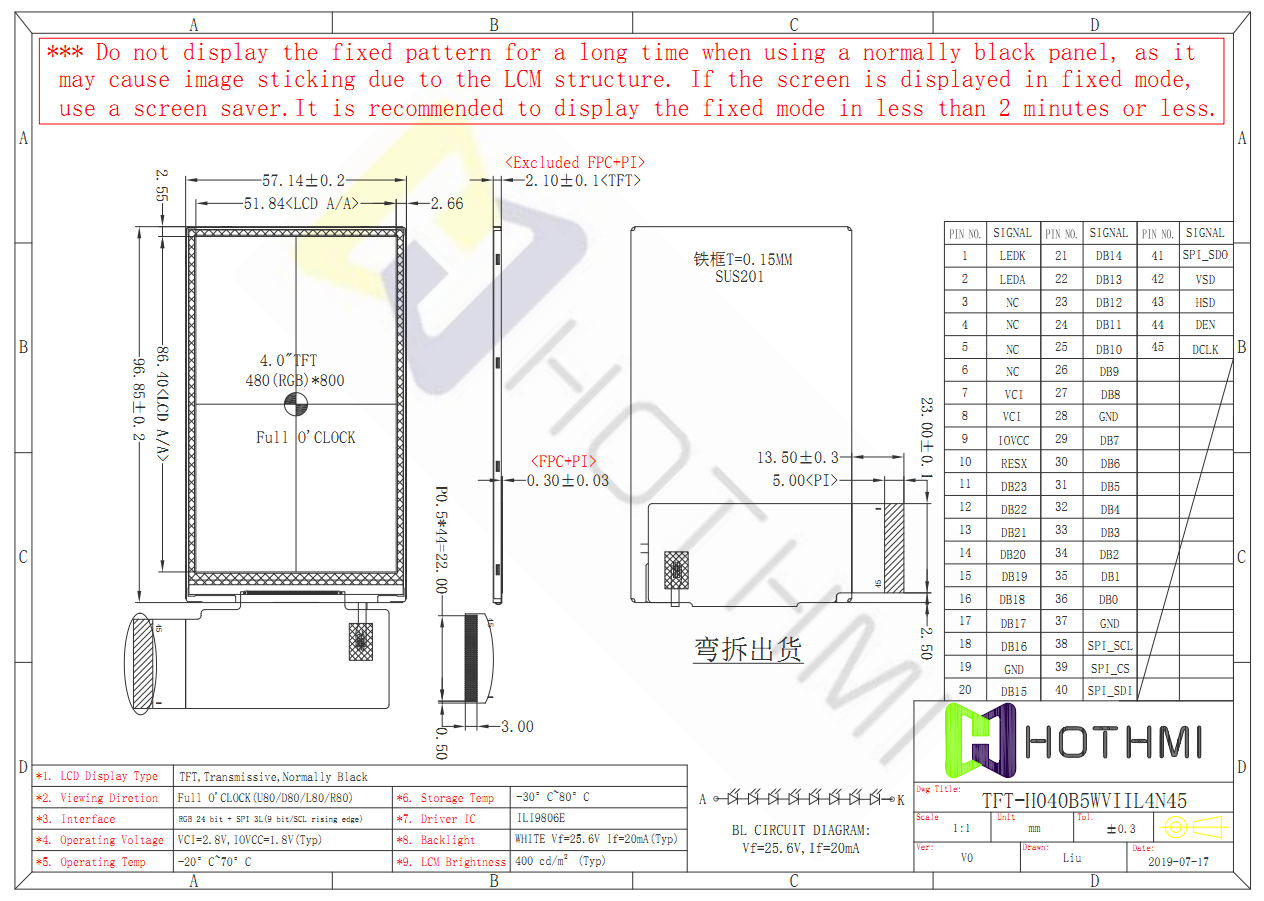

4.0 inch/ 480*800 resolution/ IPS /TFT-H040B5WVIIL4N45image.png
