Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  2寸方屏TFT/320*240分辨率/RGB接口/TFT-H020A1LQTIL7N40-V0
  • Model : 2.0 inch TFT/320*240Resolution/RGB/TFT-H020A1LQTIL7N40-V0

    Product type:TFT LCD

    Show contents:320x240

    Outline size(mm) :46.1x40.96x2.53

    Size of View Window(mm):2.0

    Display size(mm) :2.0

    Effective size(mm):40.8x30.6

    Product application:Instrumentation

    Visual angle:Full view

    Backlight type or brightness:700cd/m2

    Connection PIN Number:FPC-40PIN

    Interface mode:RGB

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3v

    Driver chip model:ILI9342C

Product description

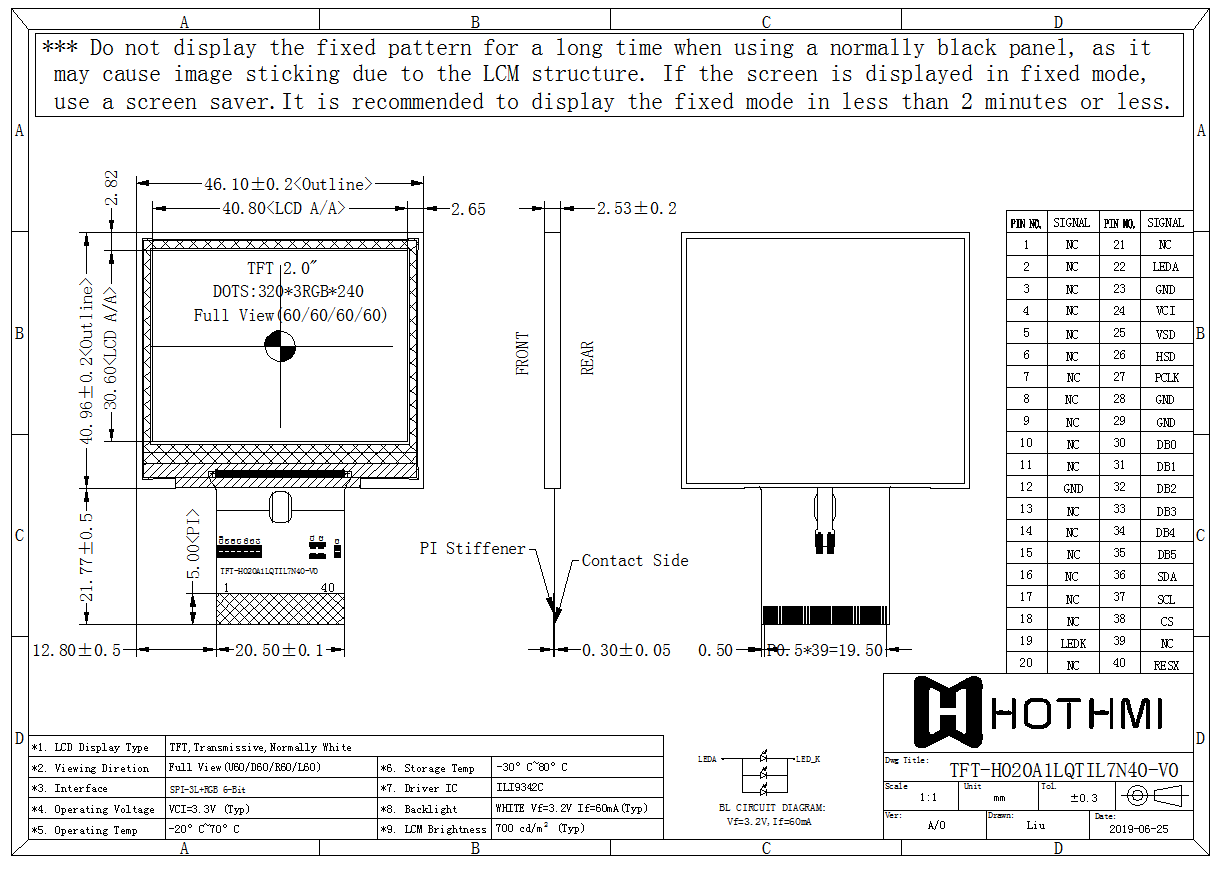

2.0''TFT/320*240Resolution/SPI/TFT-H020A1LQTIL7N40-V0image.png
