With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

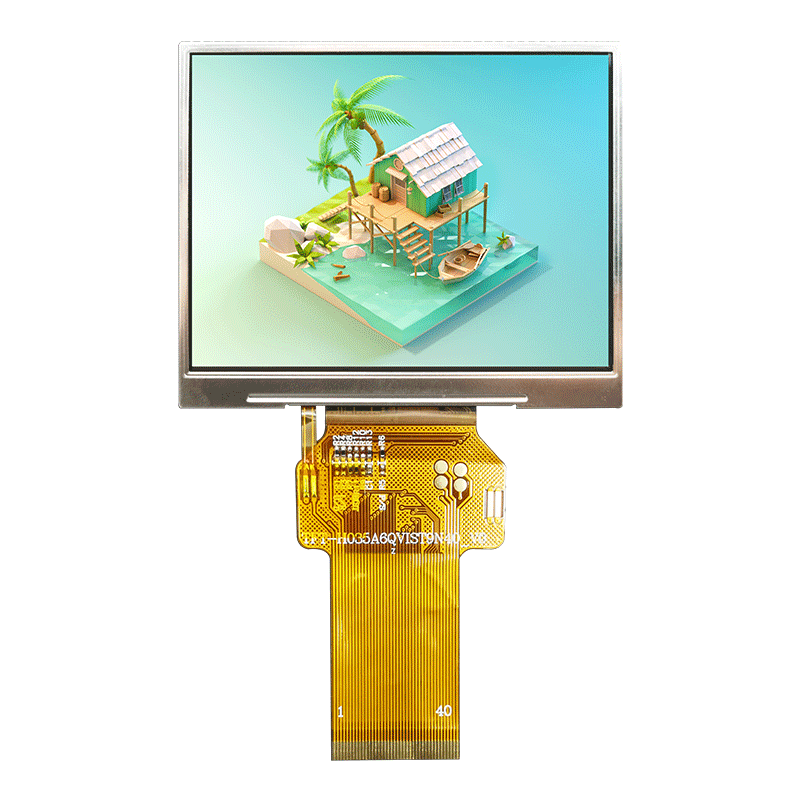

| 3.5 inch TFT /320*240 resoliution/Super bright/Full view/RGB Interface/TFT-H035A6QVIST9N40 | TFT horizontal screen | 320x240 |
|
76.84x63.84x3.4 | 3.5 | 3.5 | 70.08x52.56 | Full View | 900cd/m2 | FPC-40PIN | RGB | 8/24-bit TTL | -20~70℃ | 3.3V | ST7272A | |

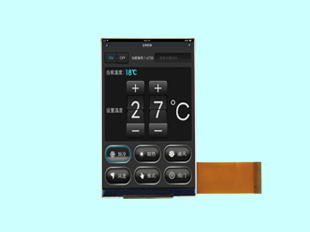

| 3.5 inch TFT /480*800 resoliution/Full view/TFT-H035A7WVIST3N40 | TFT vertical screen | 480x800 |
|
51.30x86.60x2.11 | 3.5 | 3.5 | 45.36x75.60 | Full View | 500cd/m2 | FPC-40PIN | SPI | RGB +9b_SPI(fall)/16b_SPI(rise) | -20~70℃ | 3.3V | ST7701S | |
| 4.3 inch TFT /800*480 resolution/Full view/MCU Interface/TFT-H043A12SVILT5N40 | TFT LCD | 800x480 |
|
105.5x67.2x2.95 | 4.3 | 4.3 | 95.040x53.856 | Full View | 500cd/m2 | FPC-40PIN | MCU | Can be equipped with CTP and RTP | -20~70℃ | 3.3V | SSD1963 | |
| 2.8 inch TFT/240*320 resolution/12H viewing angle/full compatible interface/with CTP capacitive touch/TFT-H028C2QVTST4C45 | TFT LCD | 240x320 |
|
50.00x69.20x2.45 | 2.8 | 2.8 | 43.20x57.60 | 12H | 350cd/m2 | FPC-45PIN | SPI | With CTP capacitive touch chip | -20~70℃ | 3.3V | ST7789V | |
| 2.8 inch TFT /240*320 resoliution/TN/MCU serial/TFT-H028B7QVTST3N40 | TFT LCD | 240x320 |
|
50.00x69.20x2.45 | 2.8 | 2.8 | 43.20x57.60 | 12H | 350cd/m2 | FPC-40PIN | MCU | MCU8/16 | -20~70℃ | 3.3V | ST7789V | |
| 2.8 inch TFT /240*320 resoliution/12H/MCU interface/TFT-H028B6QVTST3N40 | TFT LCD | 240x320 |
|
50.00x69.20x2.45 | 2.8 | 2.8 | 43.20x57.60 | 12H | 400cd/m2 | FPC-40PIN | SPI | MCU8/16,SPI3L/4L | -20~70℃ | 3.2v | ST7789V | |
| 2.4 inch TFT /240*320 resoliution/highlight/LCD screen of handheld detector/Full View/SPI 4-line serial/TFT-H024B11QVIST8N41 | TFT LCD | 240x320 |
|
42.52x59.86x2.20 | 2.4 | 2.4 | 36.72x48.96 | Full View | 800cd/m2 | FPC-41PIN | SPI | MCU 8/9/16/18 ,SPI 3L/4L | -20~70℃ | 2.8V | ST7789V | |
| 2.4 inch TFT/Full view/MIPI Interface/240*320 resolution/TFT-H024A9QVIFT8N20 | TFT | 240x320 |
|
42.52x59.86x2.20 | 2.4 | 2.4 | 36.72x48.96 | Full View | 800cd/m2 | FPC-20PIN | MIPI | Can be equipped with RTP | -20~70℃ | 3.2v | JD9852 | |
| 0.96 inch oximeter standard screen/80*160 resolution/TFT-H010A11AIST4N10 | TFT | 80x160 |
|
13.50x27.95x2.03 | 0.96 | 0.96 | 10.80x21.696 | Full view | 400cd/m2 | FPC-10PIN | SPI | SPI 3L/4L | -20~70℃ | 3.2V | ST7735S | |
| 2.4 inch TFT /240*320 resoliution/full view/SPI 4-line serial/TFT-H024C4QVIST5N14 | TFT | 240x320 |
|
42.52x59.86x2.20 | 2.4 | 2.4 | 36.72x48.96 | Full View | 500cd/m2 | FPC-14PIN | SPI | SPI 4L | -20~70℃ | 2.8V | ST7789V |
