With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5.2-inch 416x1280 resolution TFT full-color LCD display | RGB interface | STM32/RK series display TFT-H052A01ZAIST5N40_V1-0 | TFT | 416x1280 |
|
43.55x131.28x2.1 | 5.2 | 5.2 | 40.75x125.38 | IPS | 500 | 40PIN | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7701S | |

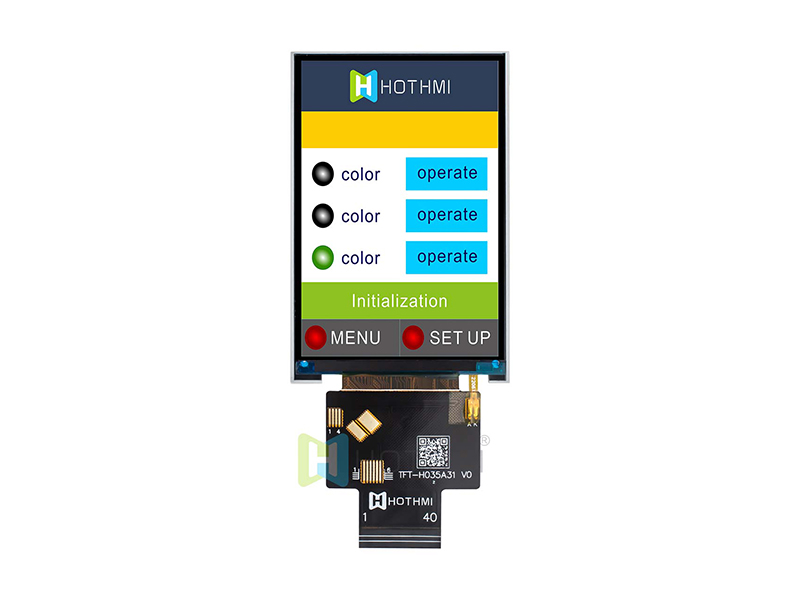

| 3.5-inch full-view MCU interface TFTLCD color display TFT-H035A31HVIIL4N40 | TFT | ILI9488 |
|
54.46x82.94x1.69 | 3.5 | 3.5 | 48.96x73.44 | IPS | 450cd/m2 | FPC-40 pin | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ILI9488 | |

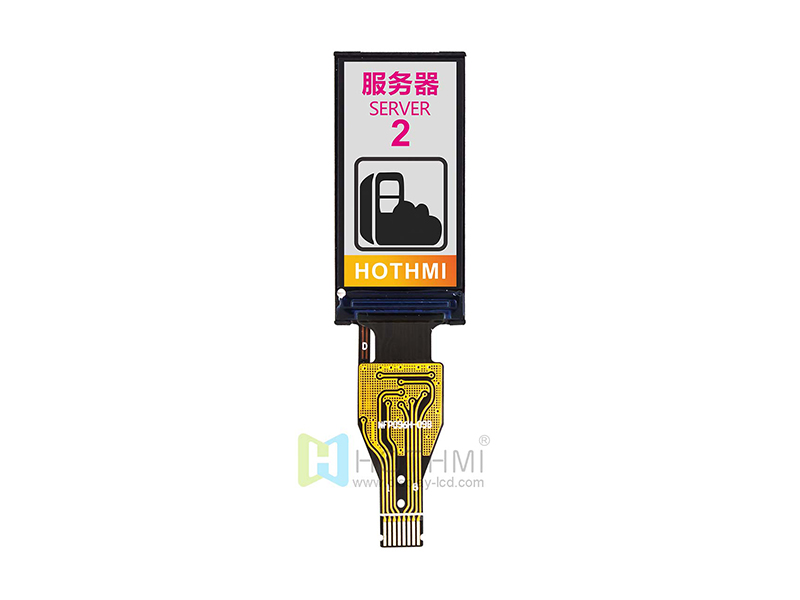

| 0.96-inch 80x160 serial interface IPS full-view color TFT display TFT-H010W21AIST4N8 | TFT | 80x160 |
|
13.5x27.95x1.46 | 0.96 | 0.96 | 10.8x21.7 | IPS | 400 | 8 PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7735S | |

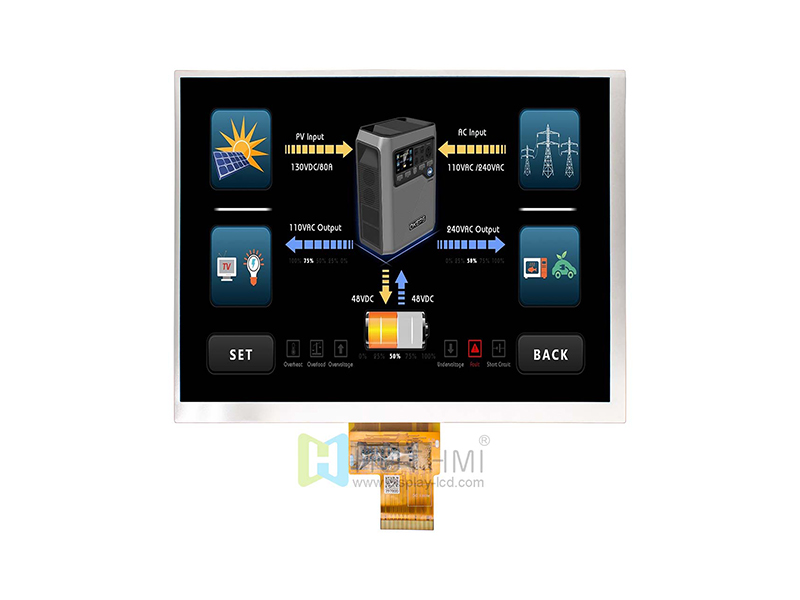

| 8.0 inch 1024x768 resolution full viewing angle LVDS interface color TFT LCD TFT-H080D13XGIYZ5N40 | TFT | 1024x768 |
|
174x136x2.65 | 8.0 | 8.0 | 162.05x121.54 | IPS | 500 | 162.05x121.54 | LVDS | Anti-static ESD 8KV | -20~70℃ | +3.3V | T.B.D | |

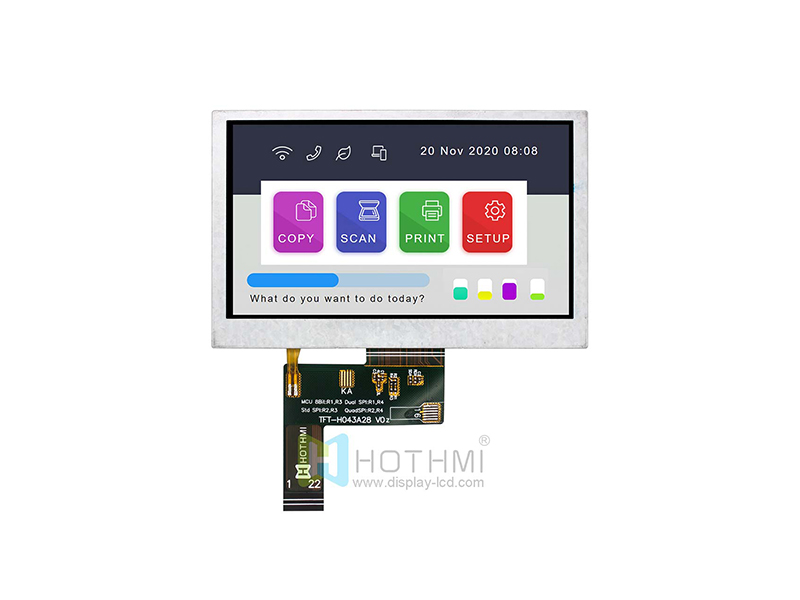

| 4.3-inch 480x272 high brightness QSPI interface TFT display TFT-H043A28WQISTKN22 | TFT | 480x272 |
|
105.46x67.16x2.8 | 4.3 | 4.3 | 95.04x53.86 | IPS | 1000 | 22PIN | QSPI/MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | NV3041 | |

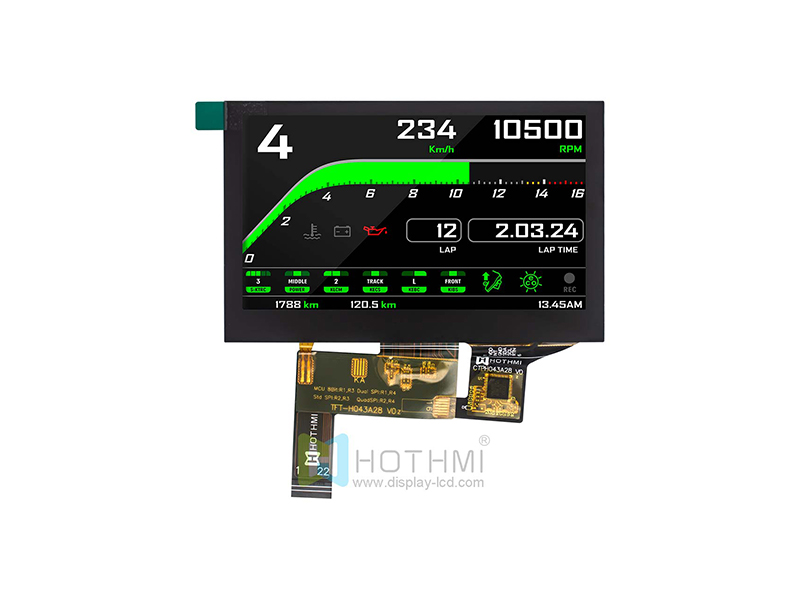

| 4.3-inch 480x272 Capacitive Touch IPS TFT LCD/NV3041/Wide Temperature QSPI/MCU/C8051/Arduino/STM32 TFT-H043A28WQIST8C22 | TFT | 480x272 |
|
105.46x67.16x4.6 | 4.3 | 4.3 | IPS | 800cd/m2 | FPC-22PIN | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | NV3041 | ||

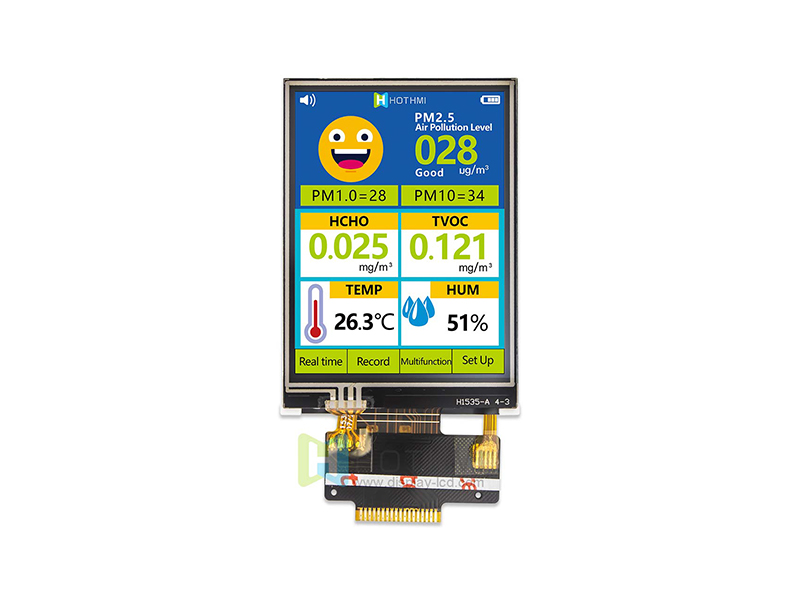

| 2.4-inch Resistive Touch TFT/240x320 Color Display/ST7789/C8051/Arduino/STM32 TFT-H024B26QVTST3R18 | TFT | 240x320 |
|
42.72x60.26x3.65 | 2.4 | 2.4 | 36.72x48.96 | IPS | 350cd/m2 | FPC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | FPC-18PIN | |
| 2.4-inch full-color TFT LCD /240x320 color display/ST7789 /3.3V/C8051/Arduino/STM32 TFT-H024B26QVTST4N18 | TFT | 240x320 |
|
42.72x60.26x2.5 | 2.4 | 2.4 | 36.72x48.96 | IPS | 450cd/m2 | FPC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | -20~70℃ | |

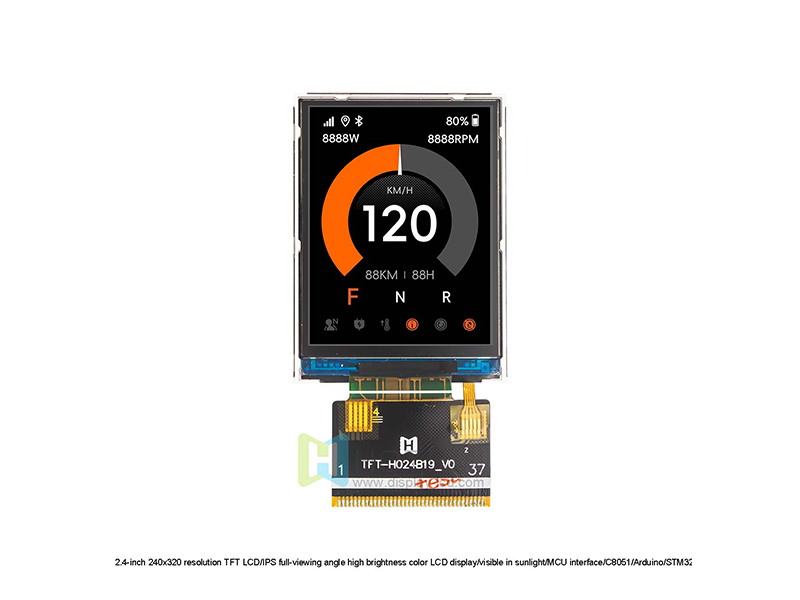

| 2.4-inch 240x320 resolution TFT LCD/IPS full-viewing angle high brightness color LCD display/visible in sunlight TFT-H024B19QVISTTN37 | TFT Display | 240x320 |
|
42.72.0x60.26x2.5 | 2.4 | 2.4 | 36.72x48.96 | IPS | 1700cd/m2 | FPC-37PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7789V | |

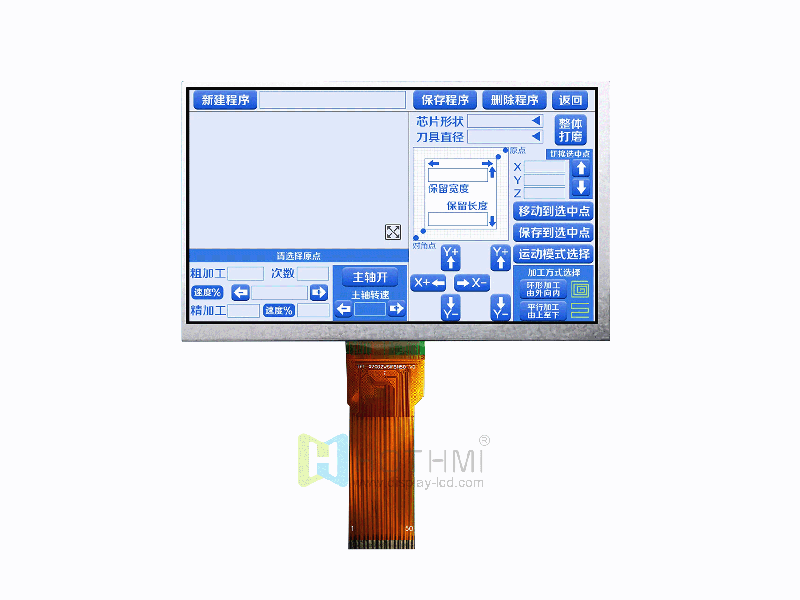

| 7.0-inch 1024x600 full-color TFT LCD/TTL interface LCD display/sunlight viewable/EK79001+EK73215 TFT-H070A2WSIFT8N50 | TFT Display | 1024x600 |
|
164.9x100x5.5 | 7.0 | 7.0 | 154.21x85.92 | IPS | 800cd/m2 | FPC-50PIN | TTL | Anti-static ESD 8KV | -20~70℃ | +3.3V | EK79001+EK73215(TFT) |
