Product type：TFT
Show contents：480x272
Outline size(mm) ：105.46x67.16x4.6
Size of View Window(mm)：4.3
Display size(mm) ：4.3
Product application：Instruments
Visual angle：IPS
Backlight type or brightness：800cd/m2
Connection PIN Number：FPC-22PIN
Interface mode：MIPI
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：+3.3V
Driver chip model：NV3041

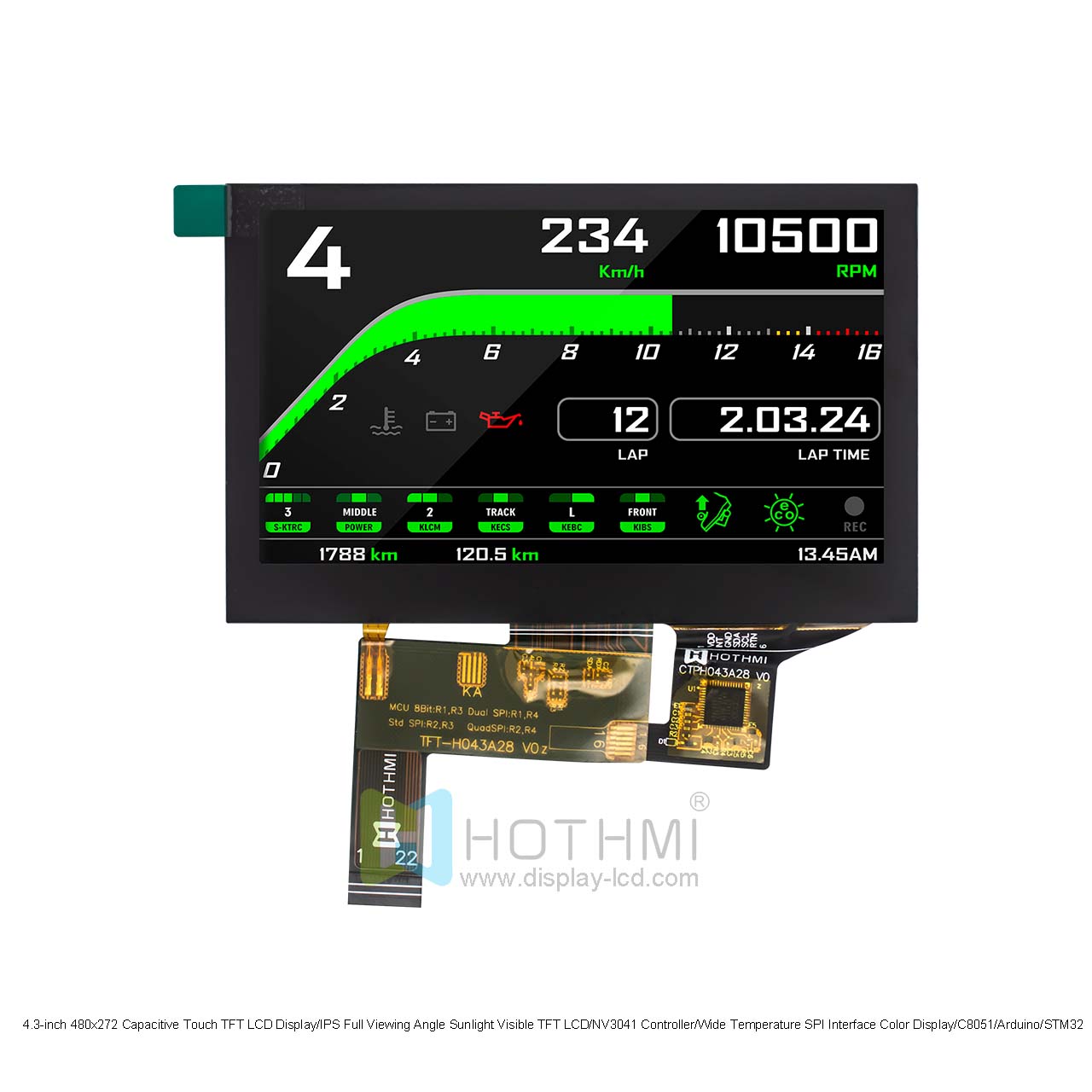

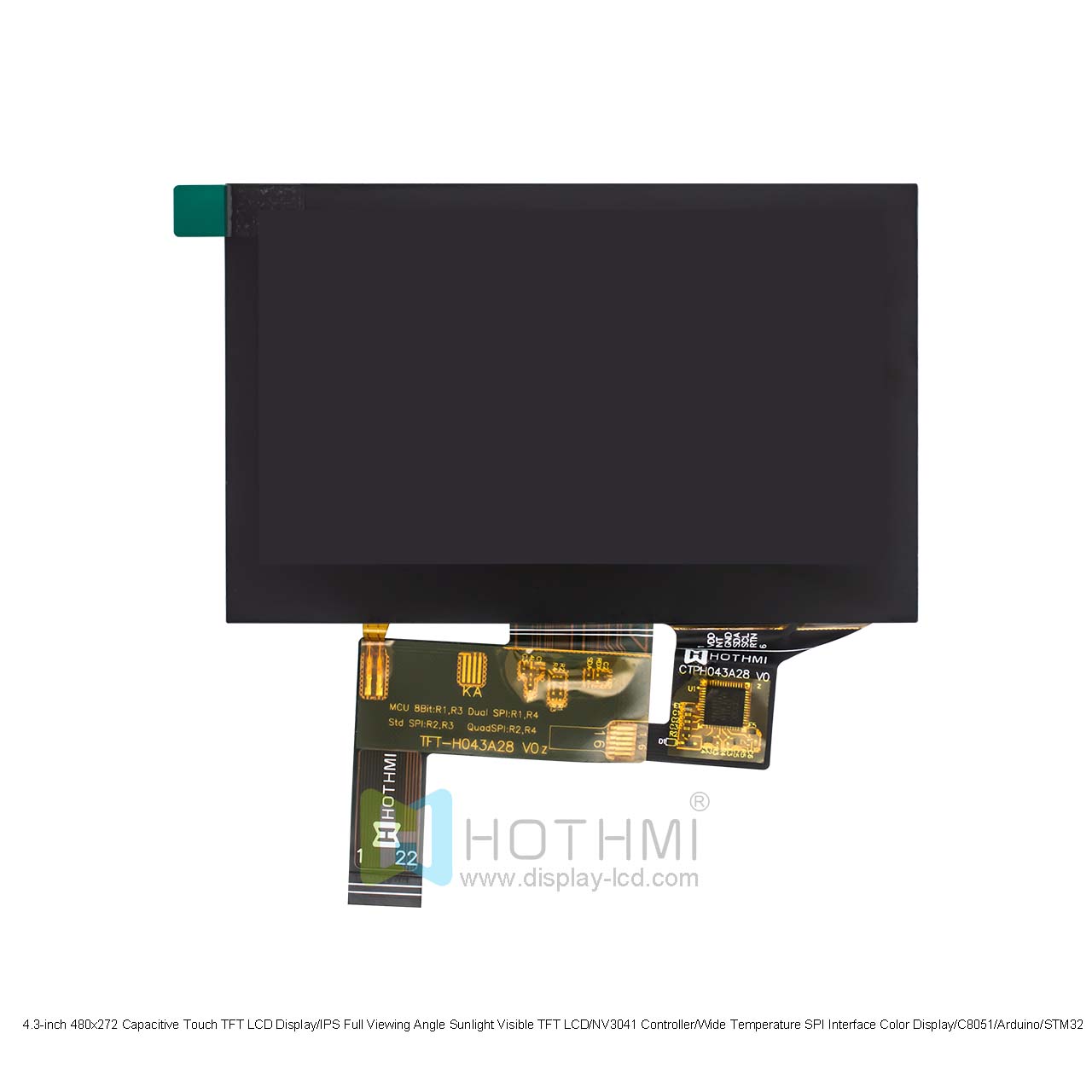

TFT-H043A28WQIST8C22 is a 4.3-inch IPS TFT LCD display with a resolution of 480x272 pixels. The display has a high contrast ratio of 800:1, which can present deep blacks and vivid colors. IPS technology enables full viewing angles, and the display provides amazing clarity, excellent high-quality color reproduction, better image consistency, and high contrast at full viewing angles. This model does not have touch function, and our product has capacitive touch. Built-in NV3041 controller, the controller optimizes the function of the display, ensuring smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. QSPI/MCU interface is used to transfer data to the display. Applicable to C8051/Arduino/STM32 series. Suitable for a wide range of applications including industrial control systems, home automation and portable electronics. This LCD uses FPC connection to ensure easy electrical connection. Our displays are RoHS compliant and adhere to strict environmental and safety standards.
