Location：Home  >  Product center  >  TFT display  >  TFT round screen | TFT square screen | long strip TFT display  >  1U機箱顯示屏 | 7寸長條形TFT | 280*1424分辨率| 全視角| MIPI接口 | TFT-H070A10ZBIOT6N40
  • Model : 7.0 inch TFT /280*1424 resoliution/Full view/MIPI Interface/TFT-H070A10ZBIOT6N40

    Product type：TFT LCD

    Show contents：280x1424

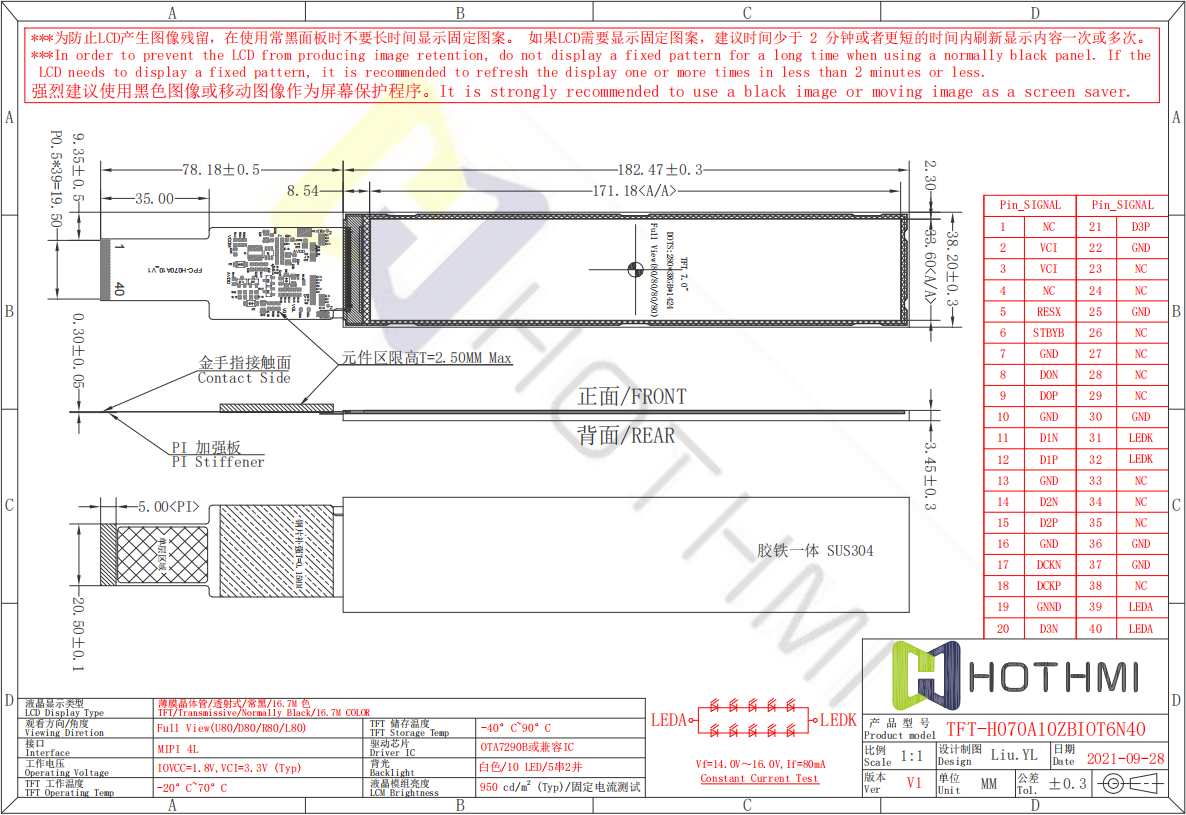

    Outline size(mm) ：182.47x38.20x3.45

    Size of View Window(mm)：7.0

    Display size(mm) ：7.0

    Effective size(mm)：171.18x33.60

    Product application：Instruments and apparatus

    Visual angle：Full View

    Backlight type or brightness：600cd/m2

    Connection PIN Number：FPC-40PIN

    Interface mode：MIPI

    Working temperature：-20~70℃

    Power supply voltage：3.3V

    Driver chip model：OTA7290B或兼容IC

Product description
