  • Model : 2.4-inch TFT display screen | 240 * 320 | IPS full view | full compatible interface | tft-h024a7qvist8n45

    Product type：TFT LCD

    Show contents：240x320

    Outline size(mm) ：42.52x59.86x2.2

    Size of View Window(mm)：2.4

    Display size(mm) ：2.4

    Effective size(mm)：36.72x48.96

    Product application：Instruments and Apparatuses

    Visual angle：Full view

    Backlight type or brightness：850cd/m2

    Connection PIN Number：45PIN

    Interface mode：SPI

    Special instructions：Anti-static ESD 8KV

    Working temperature：-20~70℃

    Power supply voltage：3.0V

    Driver chip model：ST7789V

Product description

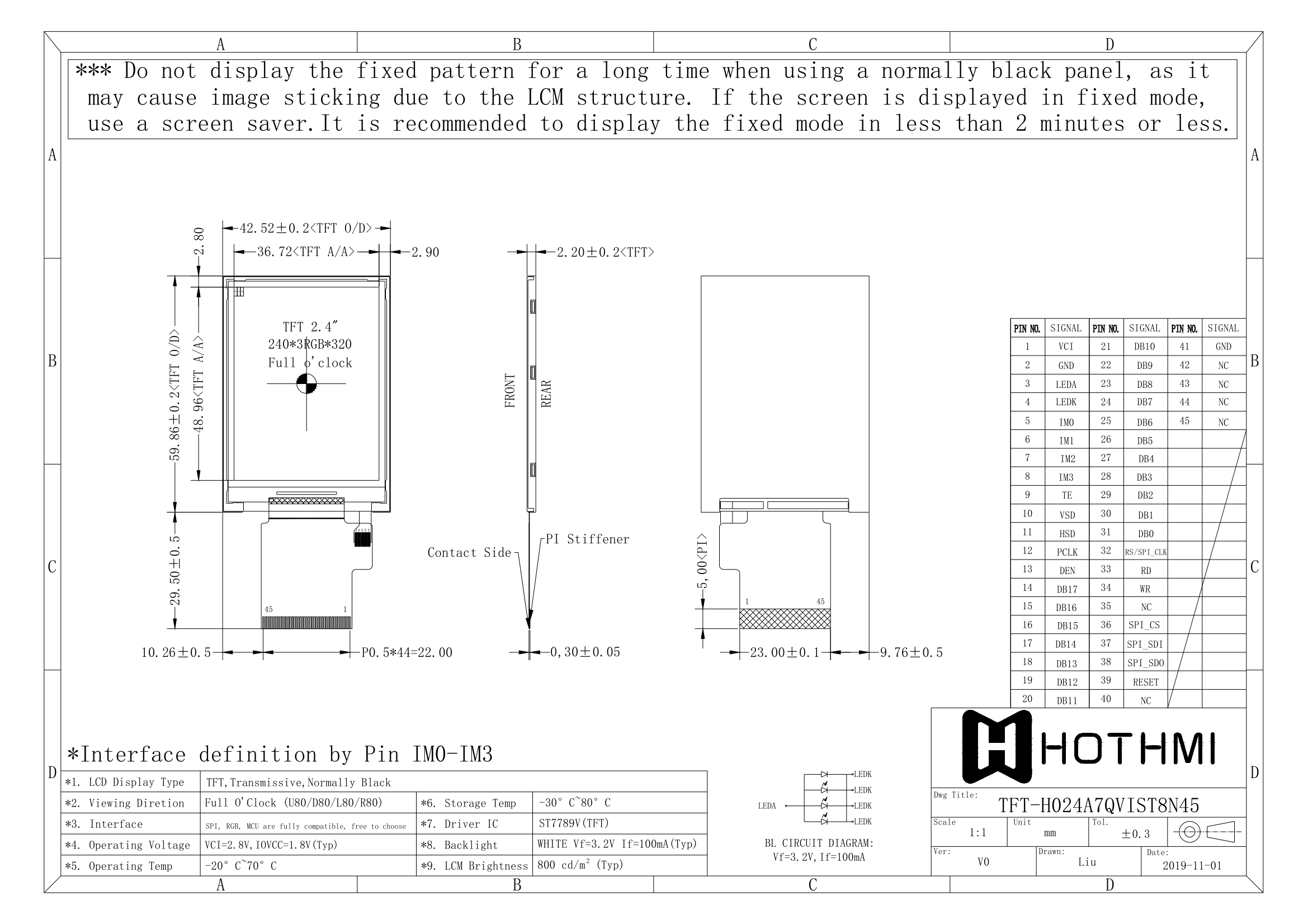

2.4-inch TFT display screen | 240 * 320 | IPS full view | full compatible interface | tft-h024a7qvist8n45TFT-H024A7QVIST8N45_V0_1.png
