Product type：Graphic LCD Module
Show contents：320x240
Outline size(mm) ：160X109X13.49
Size of View Window(mm)：122.0x92.0
Display size(mm) ：115.17x86.37
Point spacing(mm)：0.36x0.36
Product application：Instruments
Visual angle：6H
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V

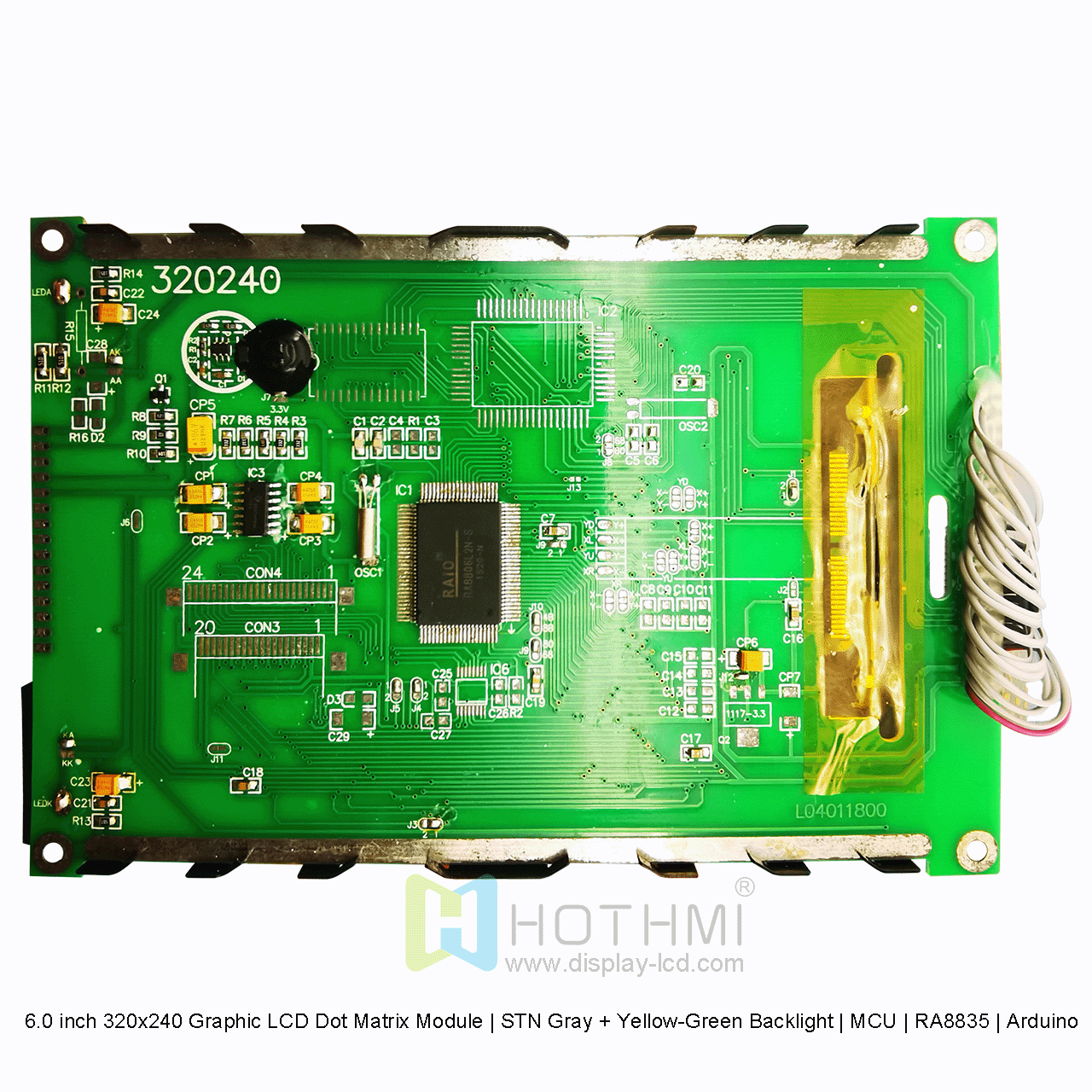

Driver chip model：RA8835

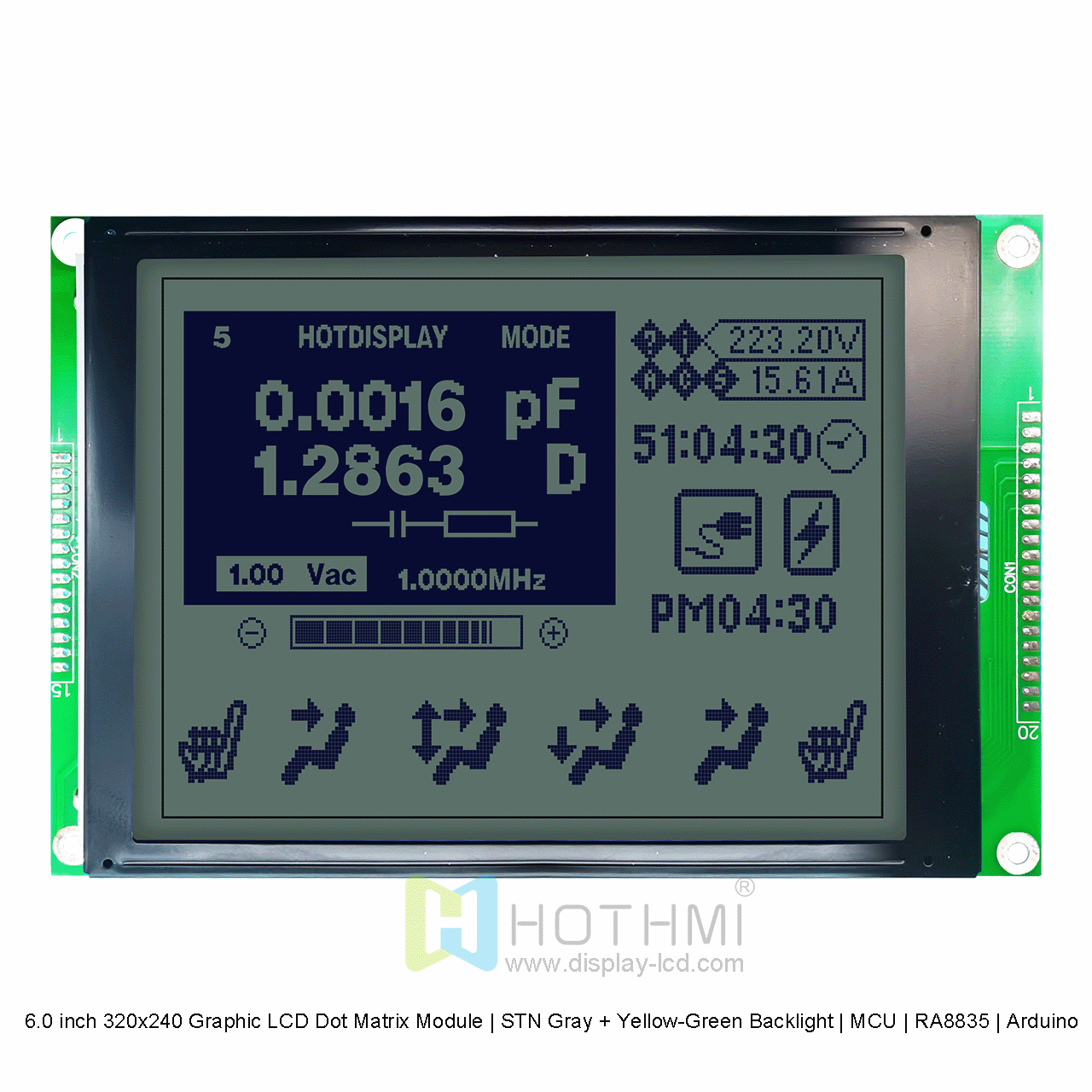

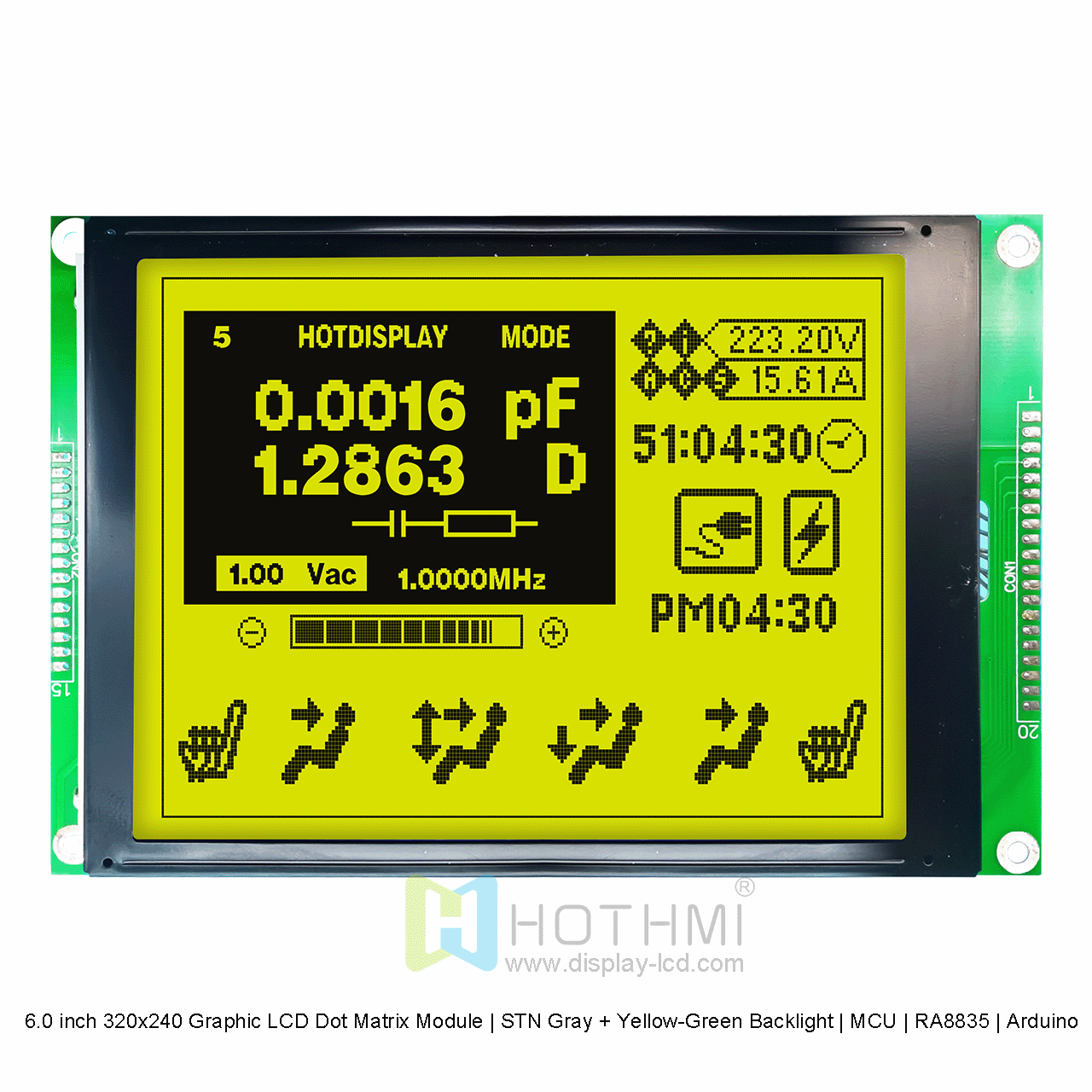

This HOT Display 320x240 Graphic LCD Module displays illuminated dark gray pixels on a yellow-green background. This translucent LCD display is carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective polarizer to reflect the content to the viewer, making the screen easy to read. When there is no yellow-green backlight, the display effect is black pixels on a light gray background. In darker environments, the LCD has a strong backlight built in to provide high contrast and show clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
The graphic LCD display module has a built-in negative voltage. It is also fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This product model is designed to withstand harsh operating conditions and will not operate properly when used in temperatures ranging from -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates at 5V, and is RoHS compliant.
