Location:Home  >  Product center  >  Graphic lattice LCD module  >  Standard COB LCD Module  >  6.0寸320x240圖形LCD液晶點陣模組 | STN+ | MCU | RA8835 | 5 v |灰底藍字 | Arduino HTM320240A-11W-A5P
  • Model : 6.0 inch 320x240 Graphic LCD Liquid Crystal Dot Matrix Module | STN+ | MCU | RA8835 | 5v | Arduino HTM320240A-11W-A5P

    Product type:Graphic LCD Module

    Show contents:320x240

    Outline size(mm) :160X109X13.49

    Size of View Window(mm):122.0x92.0

    Display size(mm) :115.17x86.37

    Point spacing(mm):0.36x0.36

    Product application:Instruments

    Visual angle:6H

    Connection PIN Number:16PIN

    Interface mode:MCU

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:+3.3V

    Driver chip model:RA8835

    PDF download
Product description

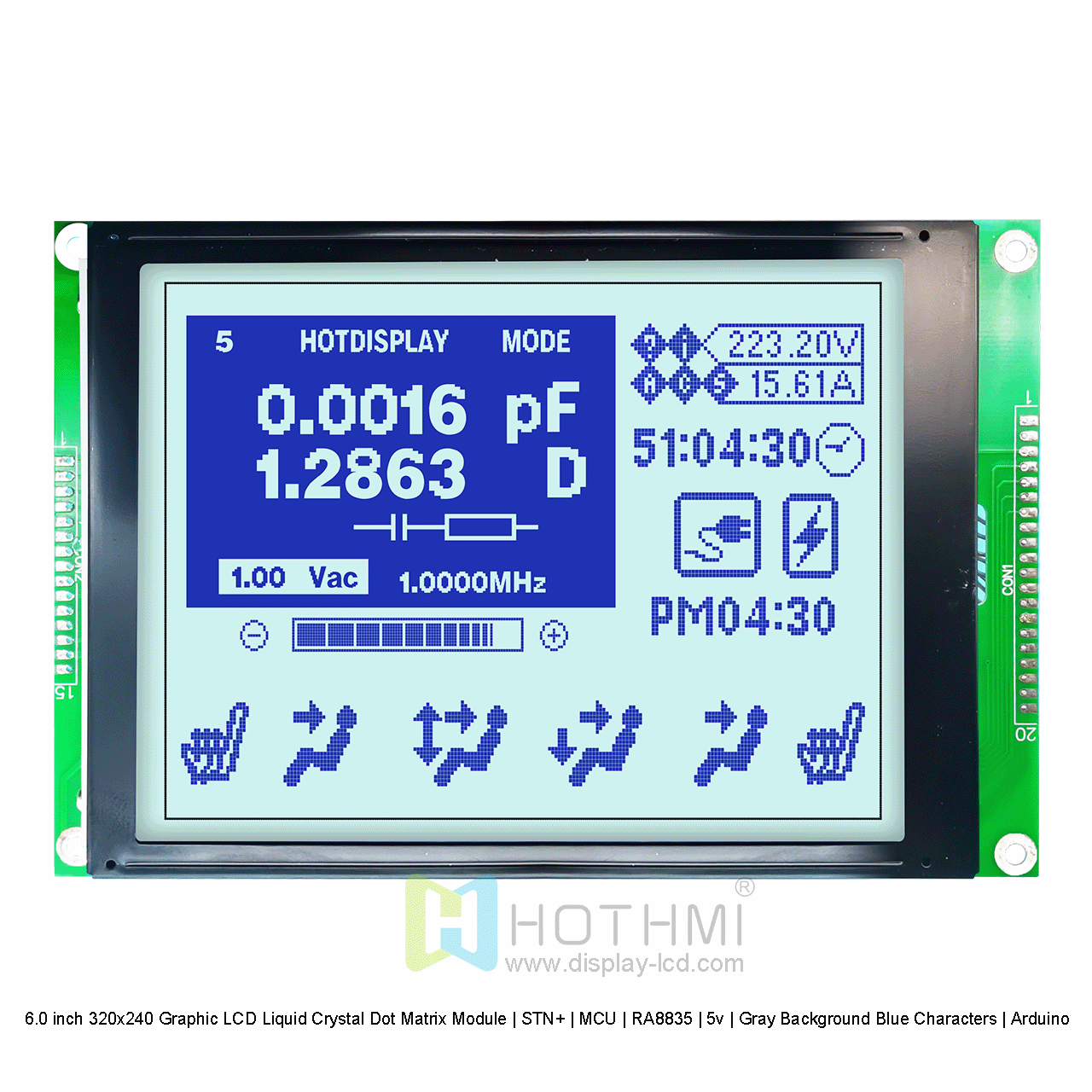

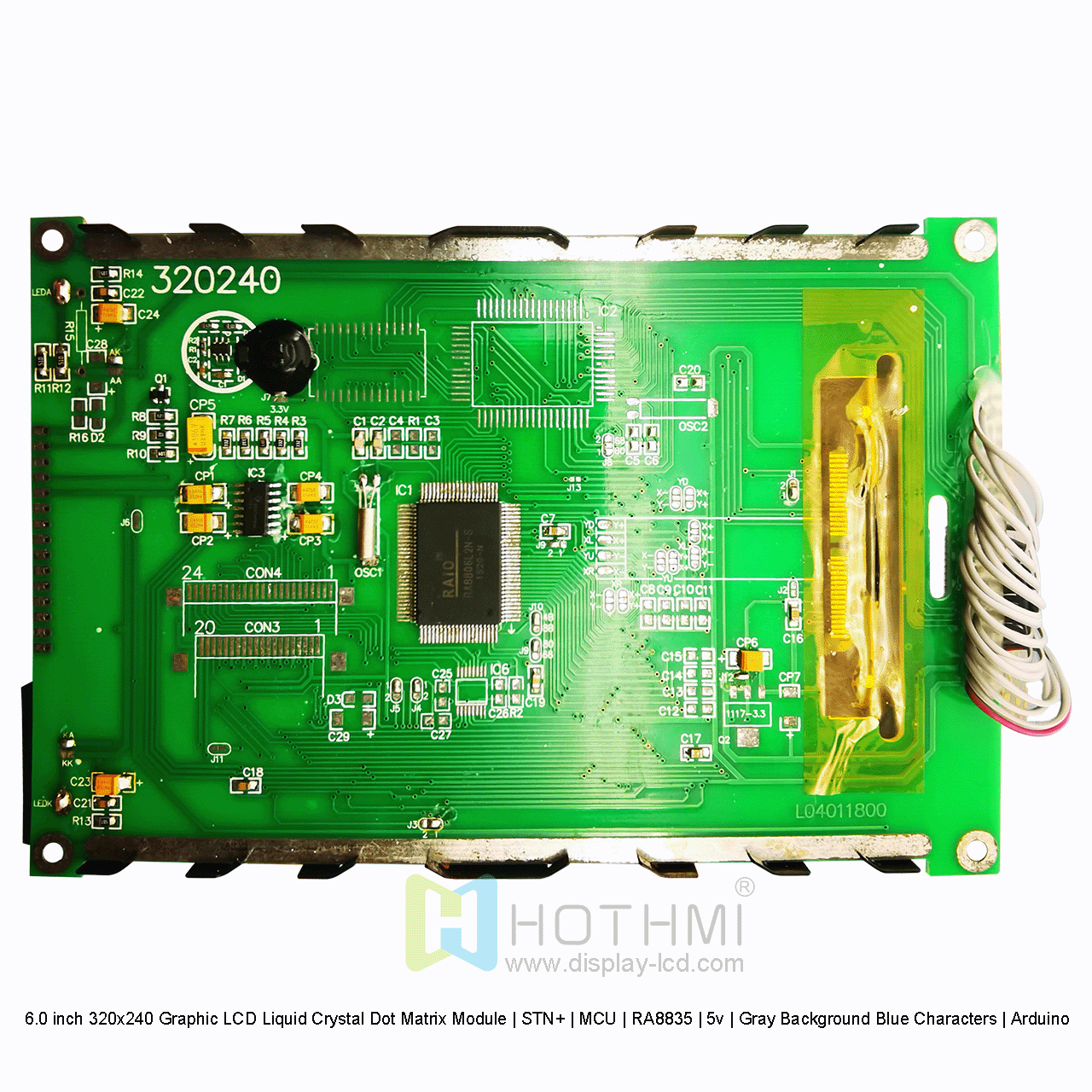

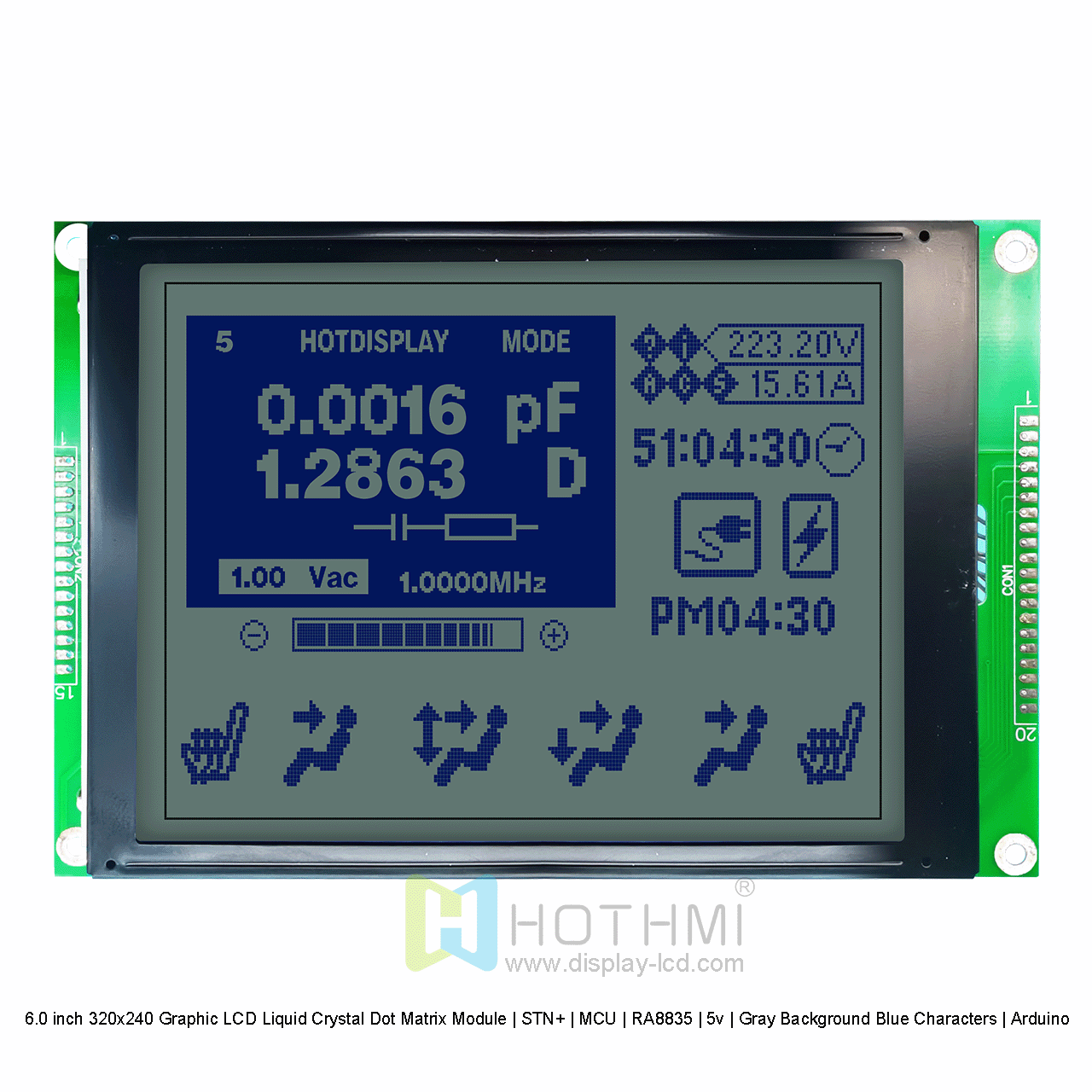

6.0 inch 320x240 Graphic LCD Liquid Crystal Dot Matrix Module | STN+ | MCU | RA8835 | 5v | Gray Background Blue Characters | Arduino

This HOT Display 320x240 Graphic LCD Display Module displays illuminated dark blue pixels on a light gray background. This translucent LCD display is carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective polarizer to reflect the content to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions. Equipped with a multi-language font library, the data is complete and easy to use.

The graphic LCD display module has a built-in negative voltage. It is also fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh operating conditions and will not function properly when used in temperatures ranging from -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates at 5V, and is RoHS compliant.
