Product type：Graphic LCD Module
Show contents：240x128
Outline size(mm) ：144..0x104.0x14.6
Size of View Window(mm)：114.0x64.0
Display size(mm) ：107.95x57.55
Point spacing(mm)：0.45x0.41
Product application：Instruments
Visual angle：6H
Connection PIN Number：21PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：RA6963

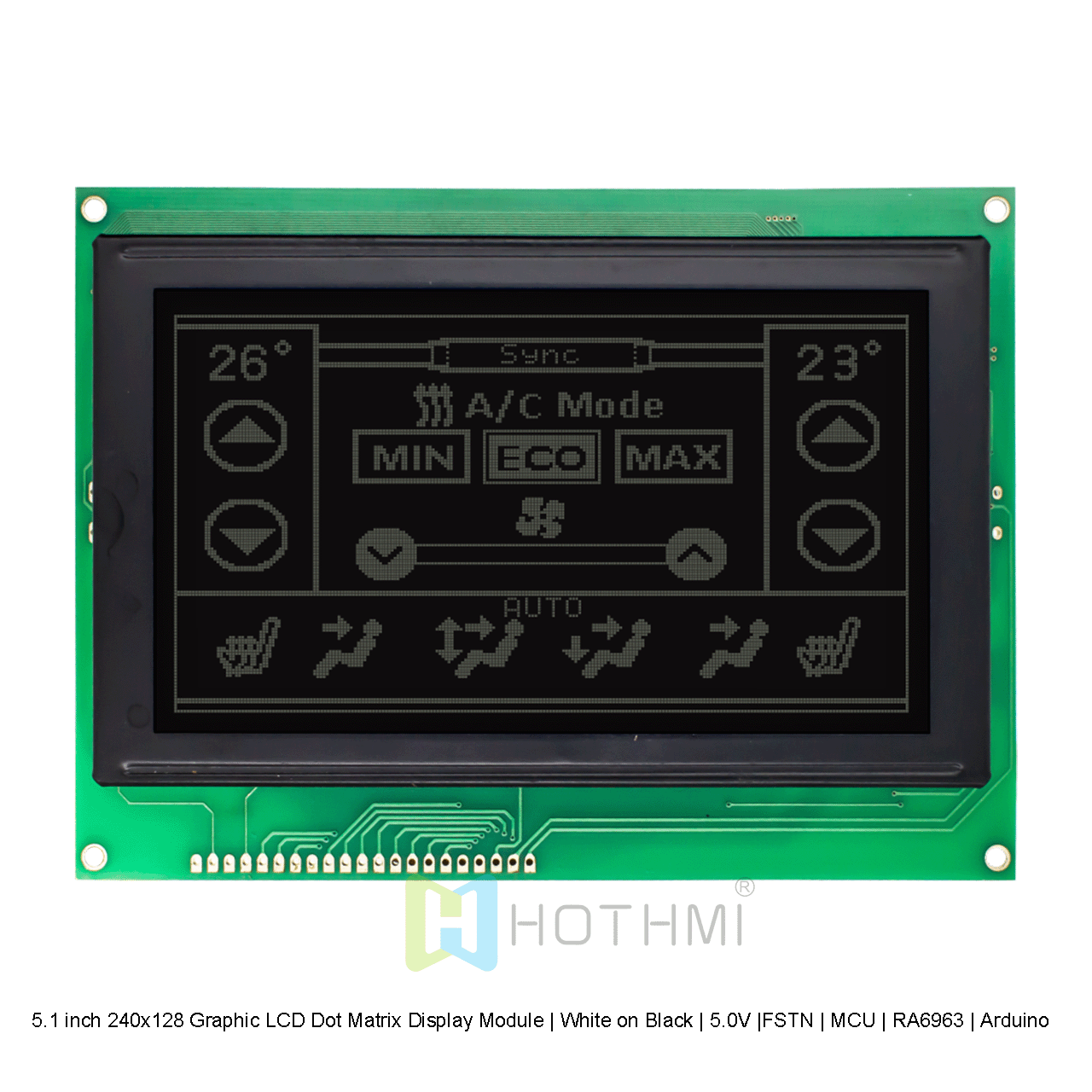

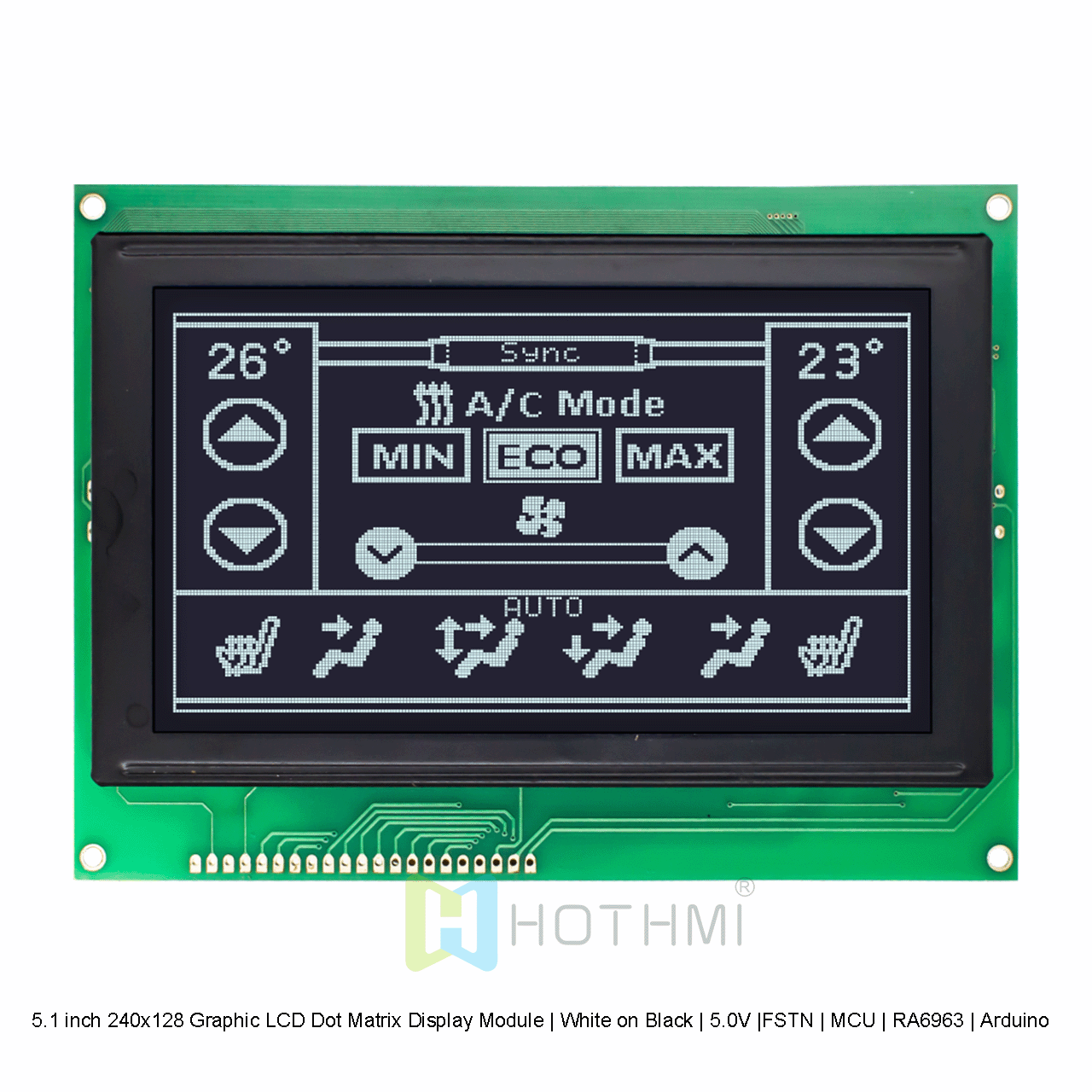

The 5.1 inch 240x128 Graphic LCD Dot Matrix Display Module displays white pixels on a black background. This translucent LCD display is designed so that in a well-lit environment, the reflective nature of the polarizer reflects the image to the viewer's eyes, making the image clearly visible. In a dark environment, the LCD has a strong backlight built in, and the transmissive nature of the polarizer allows the backlight to pass through, providing high contrast and showing clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. With multi-language word lists available, this product model is designed to withstand harsh operating conditions and performs well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates on a 5V supply voltage, and is RoHS compliant.
