The liquid crystal display module and the liquid crystal module refer to components for assembling a liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, and a structural member.
The technical specifications of the liquid crystal display module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

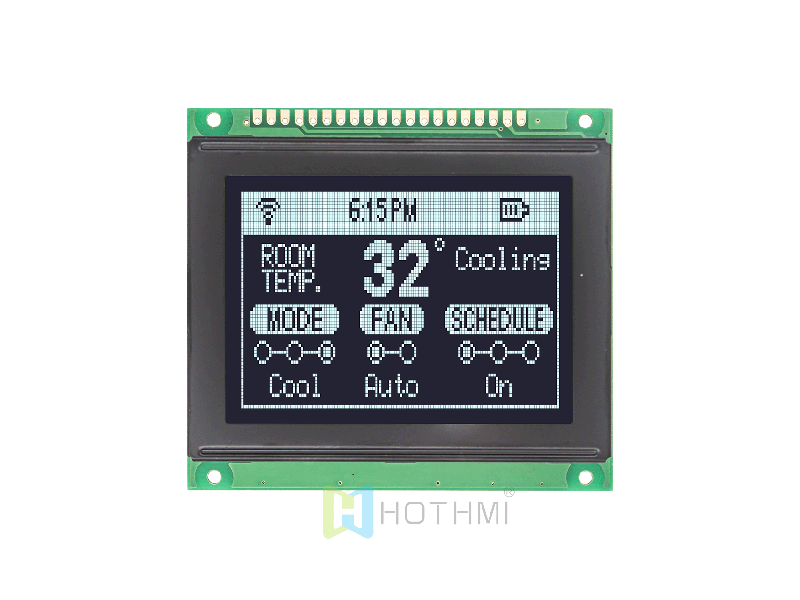

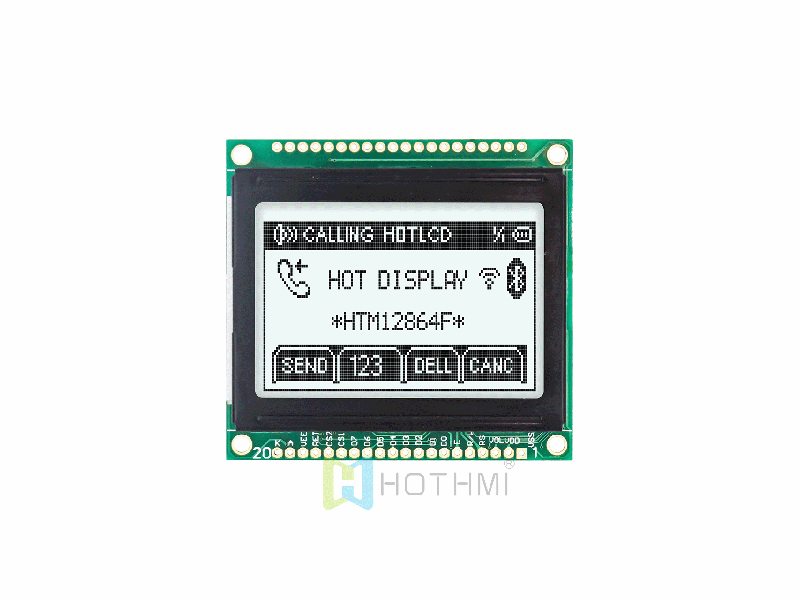

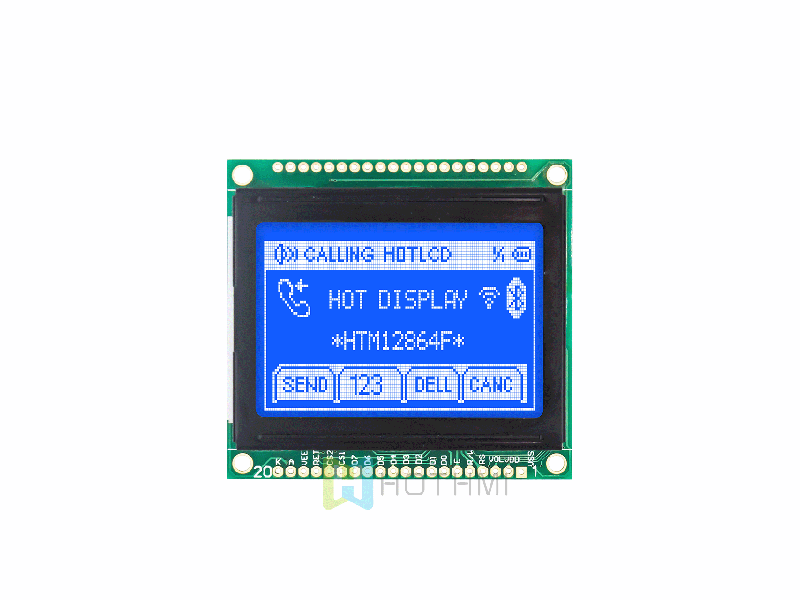

| 2 inch 128x64 graphic LCD LCM/white characters on blue background/multiple language fonts/STN- /MCU interface /5.0V HTM12864F-25W-A5P | Graphic LCD Module | 128x64 |
|
54X50X6.5 | 43.5x29 | 40.92x24.92 | 0.32x0.39 | 6H | white | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | KS0108 | |
| 2-inch display module | 128 x 64 graphic LCD COB module | KS108 | FSTN positive display | White background with gray text HTM12864F-31W-A5P | Graphic LCD Module | 128x64 |
|
54X50X6.5 | 43.5x29 | 40.92x24.92 | 0.32x0.39 | 6H | white | 20PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | KS0108 | |

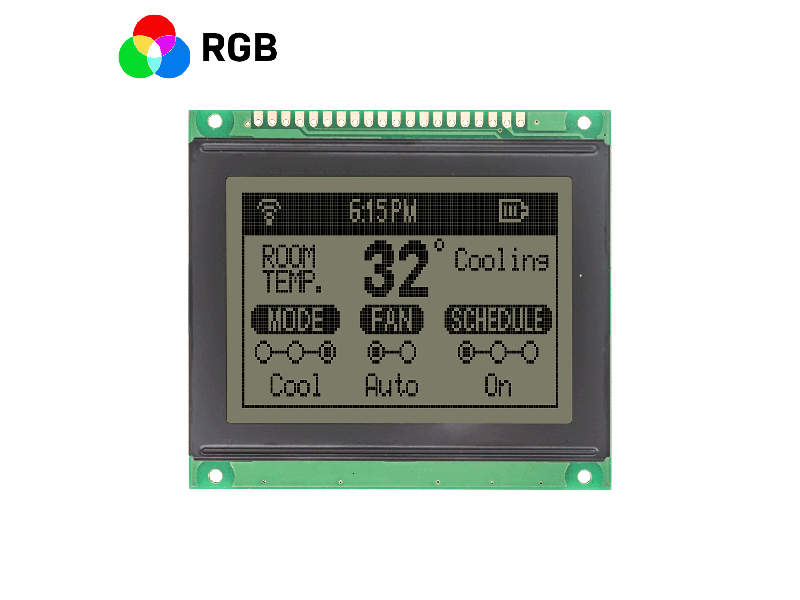

| 3-inch 128x64 Graphic LCD Module | Monochrome LCD Display Module | FSTN+Red, Green and Blue Backlight | Arduino HTM12864D-35S-A5P | Graphic LCD Module | 128X64 |
|
78.0x70.0x12.5 | 62.0x44.0 | 56.28x38.36 | 0.60x0.4 | 6H | R/G/B | 20PIN | MCU | Anti-static ESD 8KV | 0~50℃ | 5.0V | KS0108 | |

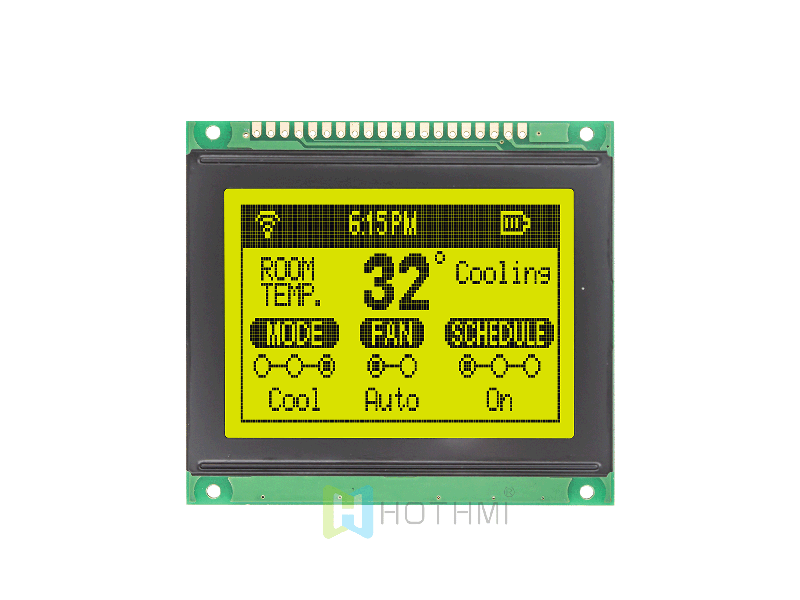

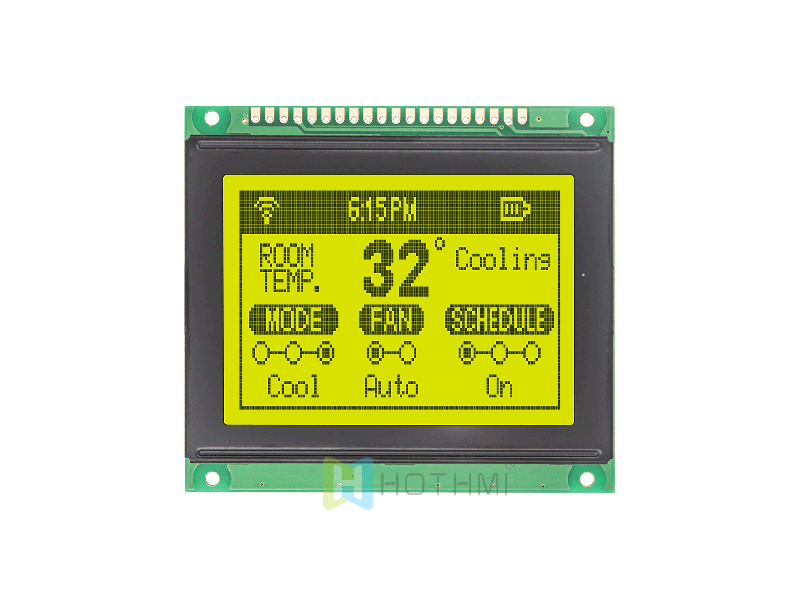

| 3" graphic LCD module | Yellow-green backlight | Arduino graphic LCD display | 128x64 KS0108 controller module | STN positive display HTM12864D-11Y-A5P | Graphic LCD Module | 128x64 |
|
78.0x70.0x12.5 | 62.0x44.0 | 56.28x38.36 | 0.60x0.4 | 6H | YG | 20PIN | MCU | Anti-static ESD 8KV | 0~50℃ | 5.0V | KS0108 | |
| 3"128x64 LCD display | Graphic dot matrix display | Compatible with KS0108 | Blue text on gray background | Arduino HTM12864D-11W-A5P | Graphic LCD Module | 128x64 |
|
78.0x70.0x12.5 | 62.0x44.0 | 56.28x38.36 | 0.60x0.4 | 6H | white | 20PIN | MCU | Anti-static ESD 8KV | 0~50℃ | 5.0V | KS0108 | |
| 3 inch Arduino Graphic LCD Display | 128x64 Graphic Dot Matrix LCD Module | Compatible with KS0108 | DFSTN Negative Display HTM12864D-41W-A5P | Graphic LCD Module | 128x64 |
|
78.0x70.0x12.5 | 62.0x44.0 | 56.28x38.36 | 0.60x0.4 | 6H | white | 20PIN | MCU | Anti-static ESD 8KV | 0~50℃ | 5.0V | KS0108 | |
| 3" Yellow Green Graphic LCD Display/128x64 Graphic LCD Display Module/For Arduino/KS0108 or compatible HTM12864D-01Y-A5P | Graphic LCD Module | 128x64 |
|
78.0x70.0x12.5 | 62.0x44.0 | 56.28x38.36 | 0.60x0.4 | 6H | YG | 20PIN | MCU | Anti-static ESD 8KV | 0~50℃ | 5.0V | ST7567 | |

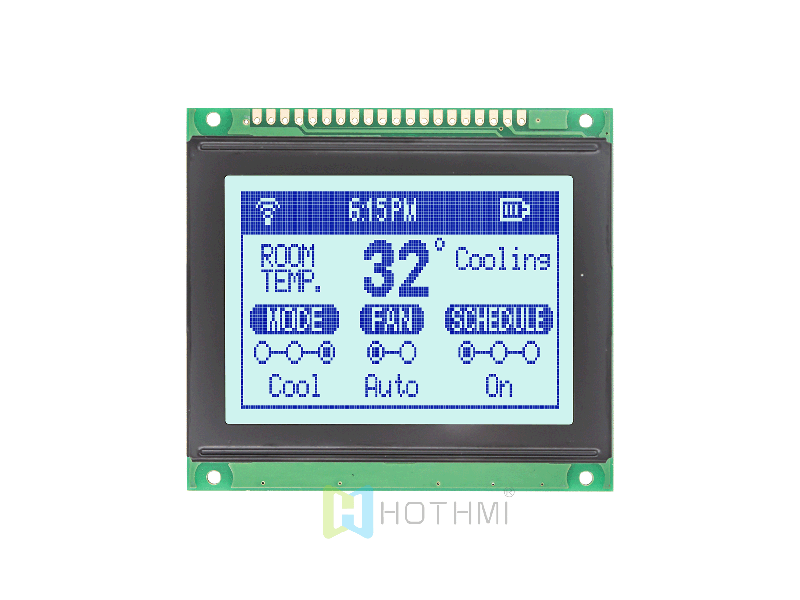

| 3.0"128x64 LCM graphic display module | FSTN Positive | Gray text on white background | 5.0v | Arduino HTM12864D-31W-A5P | Graphic LCD Module | 128x64 |
|
78.0x70.0x12.5 | 62.0x44.0 | 56.28x38.36 | 0.60x0.4 | 6H | white | 20PIN | MCU | Anti-static ESD 8KV | 0~50℃ | 5.0V | KS0108 | |

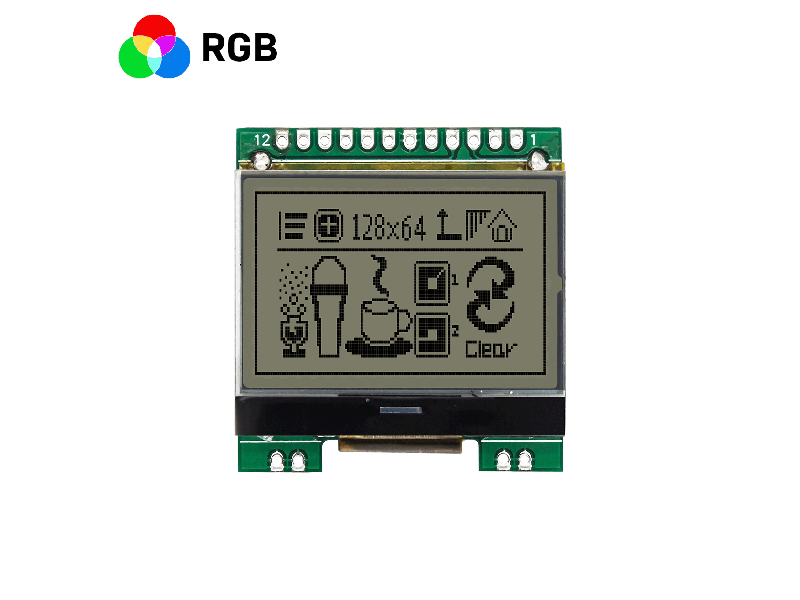

| 1.7-inch graphic dot matrix module/128x64 resolution/red, green and blue backlight/ST7567 control chip/SPI HTM12864C-35S-N3S-V06 | Graphic LCD Module | 128x64 |
|
39.0x40.8x6.2 | 36x23.5 | 33.25x20.45 | 0.32x0.26 | 6H | R/G/B | 12PIN | SPI | Anti-static ESD 8KV | -40~70℃ | +3.3V | ST7567 | |
| 128x64 Yellow-green backlight graphic LCD module/graphic COB module/1.7-inch graphic LCD display/ST7567 controller/SPI HTM12864C-11Y-N3S-V06 | Graphic LCD Module | 128x64 |
|
39.0x40.8x6.2 | 36x23.5 | 33.25x20.45 | 0.32x0.26 | 6H | YG | 12PIN | SPI | Anti-static ESD 8KV | -40~70℃ | +3.3V | ST7567 |
