The intelligent serial screen (resistive touch) is a new series of products introduced by Xin Hongtai HOTLCD. It has a wide range of display sizes. The products are widely used in various industrial industrial control fields with excellent product performance.
All display and operation of Xin Hongtai intelligent LCD module are based on the variable configuration file preset in the module. When using, the interface designed by the computer can be switched into the intelligent display module through the interface to switch and refresh between different display interfaces.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.3-inch high brightness TFT/4.3-inch IPS UART smart serial port screen/800x480 COF-H043A26-UART-A01 | UART board module |
|
105.5x67.15x3.05 | 4.3 | 4.3 | 95.04x53.86 | IPS | 1000cd/m2 | UART | Anti-static ESD 8KV | -30~80℃ | 5.0V | ||||
| 4.3-inch UART smart serial port TFT LCD display moduleIPS full-view HTM-H043A10-A5-UART | TFT Module | 800x480 |
|
122.5x73.2x5.0 | 4.3 | 4.3 | 95.04x53.86 | IPS | 500cd/m2 | UART | Anti-static ESD 8KV | -20~70℃ | 5.0V | |||
| 4.3-inch UART smart capacitive touch TFT display module /IPS full-view TFT HTM-H043A10-A5C-UART | TFT Module | 800x480 |
|
122.5x73.2x7.9 | 4.3 | 4.3 | 95.04x53.86 | IPS | 500cd/m2 | UART | Anti-static ESD 8KV | -20~70℃ | 5.0V | |||
| 4.3-inch UART smart serial screen/480x272 resolution/IPS full-view TFT with board module HTM-H043A10-A5-UART | TFT Module | 480X272 |
|
122.5x73.2x5.0 | 4.3 | 4.3 | 95.04x53.86 | IPS | 500cd/m2 | Smart UART with board, pins assembled | UART | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||

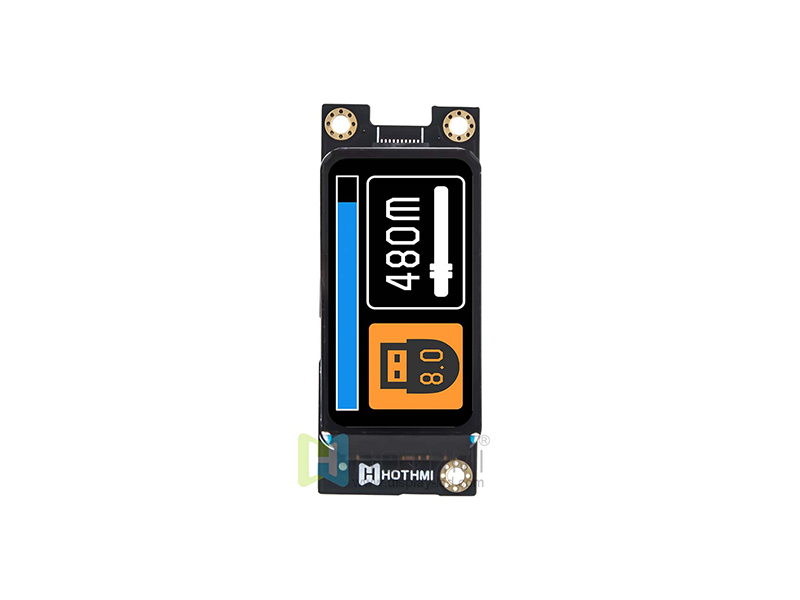

| 1.5 inch 172x320/Smart IPS Color TFT Display/RS485 Interface Serial Port Display HTM-H015A06-485-A01 | TFT Module | 172x320 |
|
19.65x48.0x9.2 | 1.5 | 1.5 | 14.65x32.83 | IPS | 300cd/m2 | 6pin | RS485 | IPS | -20~70℃ | 5.0V | ST7796 | |

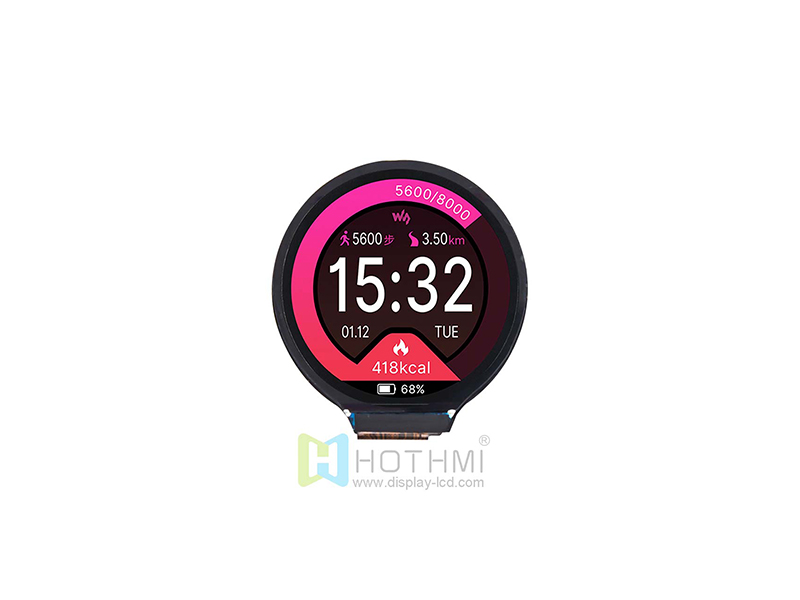

| 1.3-inch 240X240 round TFT color display module/IPS panel smart serial port display HTM-H013A6-UART-A02 | UART board module | 240x240 |
|
35.6X37.74X6.31 | 1.3 | 1.3 | 32.4X32.4 | IPS | 300cd/m2 | 4pin | UART | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7796 | |
| 3.5-inch 320x480 UART sunlight readable capacitive touch intelligent serial port display HTM-H035A12-A9C-UART | UART board module | 320x480 |
|
57.0x98.0x7.35 | 3.5 | 3.5 | 48.96x73.44 | IPS | 48.96x73.44 | 6pin | UART | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7796 | |
| 5.0-inch IPS full-view resistive touch screen module/intelligent UART display module/800x480 resolution HTM-H050A1-UART-A5R | TFT Module | 480x800 |
|
143.0x80x9.6 | 5.0 | 5.0 | 108.0x64.8 | IPS | 600cd/m2 | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0V | |||
| 5.0-inch HMI Smart UART 800x480 IPS Full Viewing Angle Display/Capacitive Touch TFT LCD Display Module HTM-H050A1-UART-A5C | TFT Module | 800X480 |
|
143.0x80x9.9 | 5.0 | 5.0 | 108.0x64.8 | IPS | 600cd/m2 | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0V | |||
| 5.0 inch IPS TFT LCD display module/800x480 smart UART TFT LCD/HMI TFT HTM-H050A1-UART-A5 | TFT Module | 800X480 |
|
143.0x80x8.1 | 5.0 | 5.0 | 108.0x64.8 | IPS | 700cd/m2 | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0V |
