Product type：oled module
Show contents：64x128
Outline size(mm) ：24.0x30.0x2.42
Size of View Window(mm)：0.96
Display size(mm) ：0.96
Point spacing(mm)：0.17x0.17
Effective size(mm)：10.86X21.74
Product application：Instruments
Visual angle：IPS
Backlight type or brightness：90cd/m2
Connection PIN Number：7 PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-40~85℃
Power supply voltage：+3.3V
Driver chip model：SSD1312

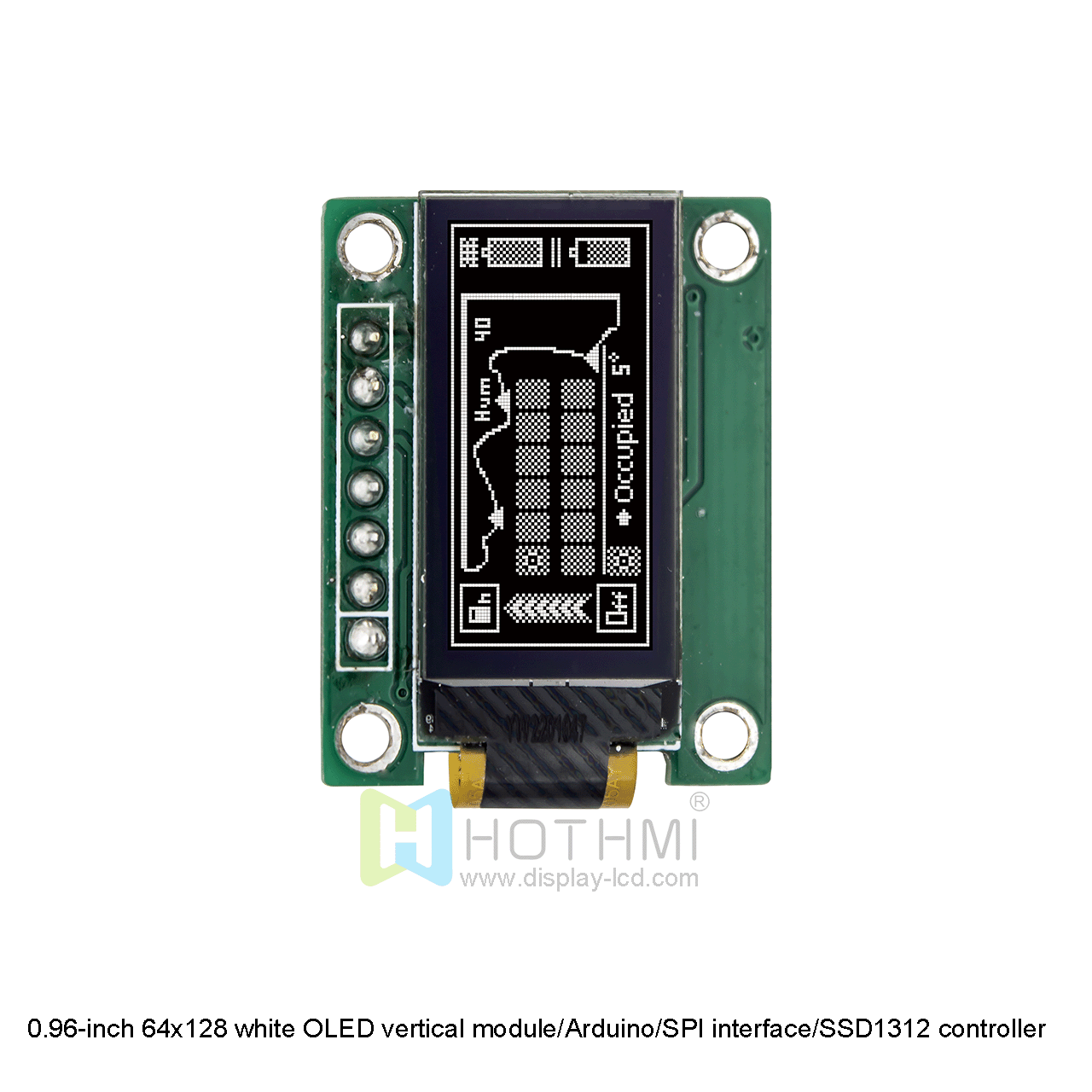

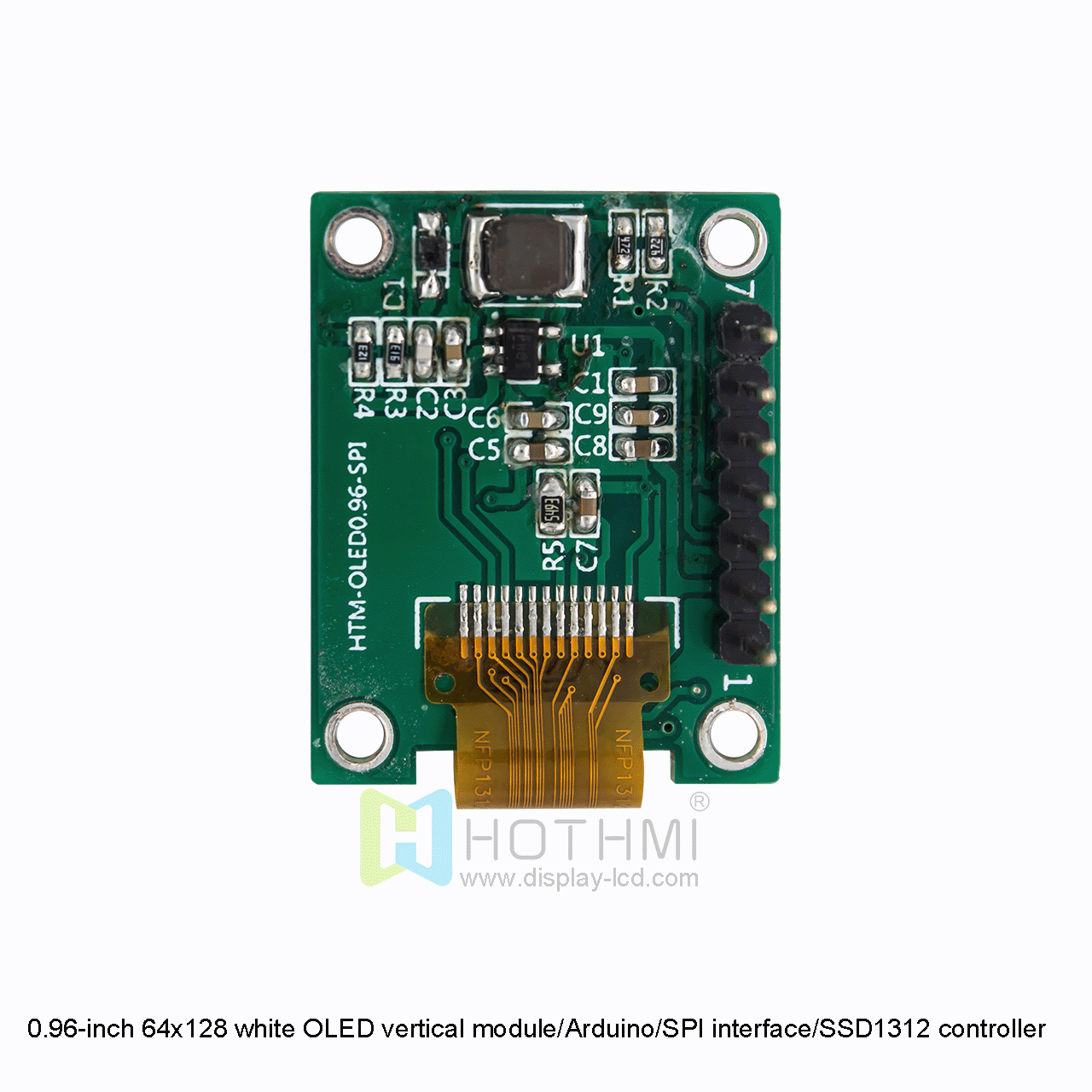

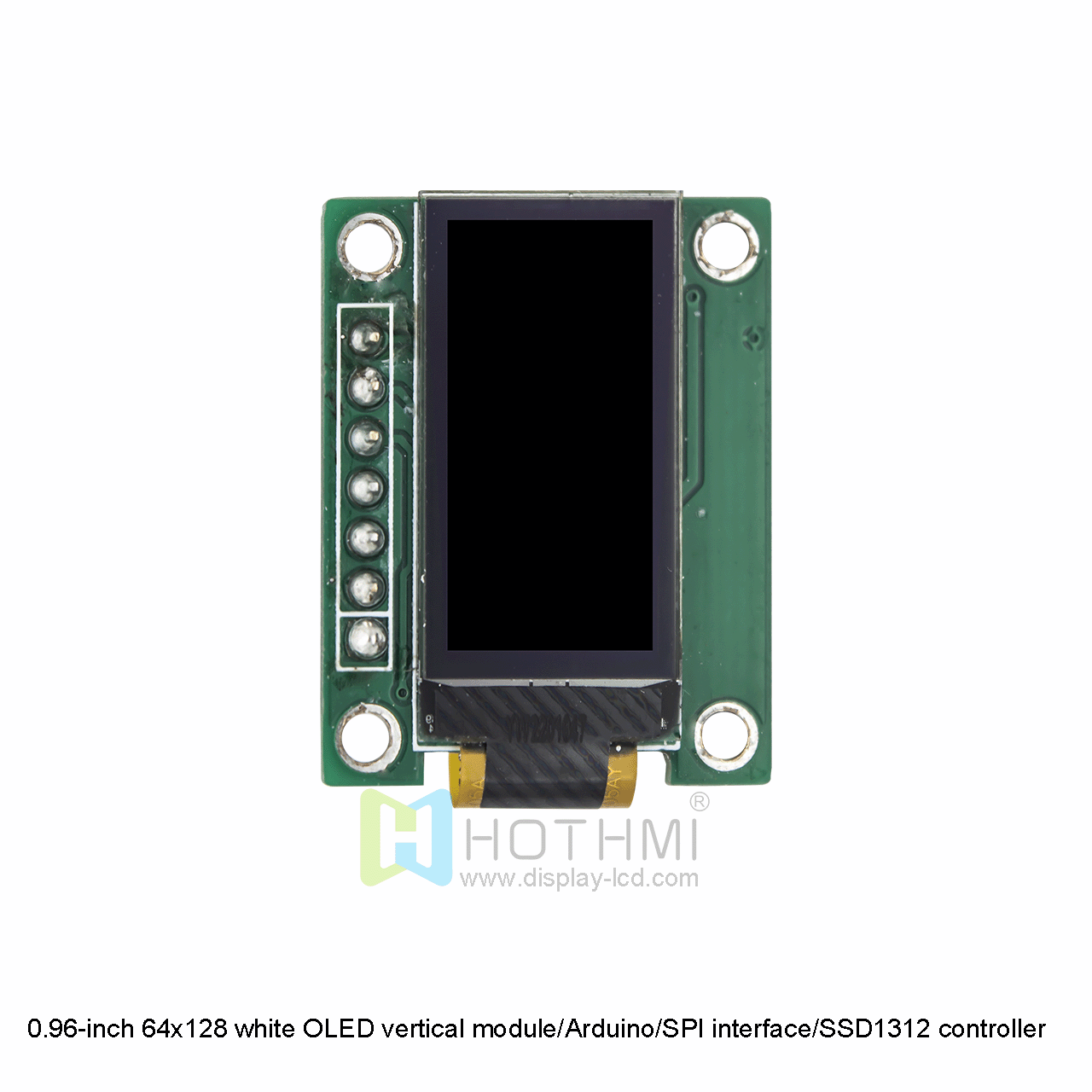

This product belongs to OLED. OLED display technology is self-luminous and is designed to provide high visibility and ensure easy reading from any angle in different environments. This model has a resolution of 64x128 and belongs to a graphic OLED display. The viewing effect has a high contrast and presents bright white graphics on a deep black background. This product display is designed as a vertical screen for adaptation products. We also have yellow, green and blue options for the same product. With this OLED, you can expect the fastest response time. It is a passive matrix display with a built-in SPI interface option, which is fully compatible with Arduino and integrates seamlessly with many different electronic systems for a variety of applications. The display also comes with a 7-pin connector and a built-in SSD1312 controller. The HTM-OLED096-SPI-W model is designed to withstand extreme working conditions and performs well when used in a temperature range of -40 to 85 degrees Celsius. It requires 3.3V power to operate and is RoHS compliant.
Highlights: 1. Self-luminous display, no backlight required, low power consumption.
2. Display color contrast is sharp.
3. With driver board, easy to use.
4. Structural features: vertical screen.
