Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  2.4英寸彩色TFT顯示屏/插接FPC/240x320分辨率/MCU接口/ST7789控制器 TFT-H024A24QVTST3N37
  • Model : 2.4-inch color TFT display/plug-in FPC/240x320 resolution/MCU interface/ST7789 controlle TFT-H024A24QVTST3N37

    Product type:TFT

    Show contents:240x320

    Outline size(mm) :42.72x60.26x2.5

    Size of View Window(mm):2.4

    Display size(mm) :2.4

    Effective size(mm):36.72x48.96

    Product application:industrial control systems, handheld electronic devices,

    Visual angle:U40/D20/L45/R45

    Backlight type or brightness:350cd/m2

    Connection PIN Number:FPC-37 pin

    Interface mode:MIPI_1L

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:+2.8 V

    Driver chip model:ST7789

    PDF download
Product description

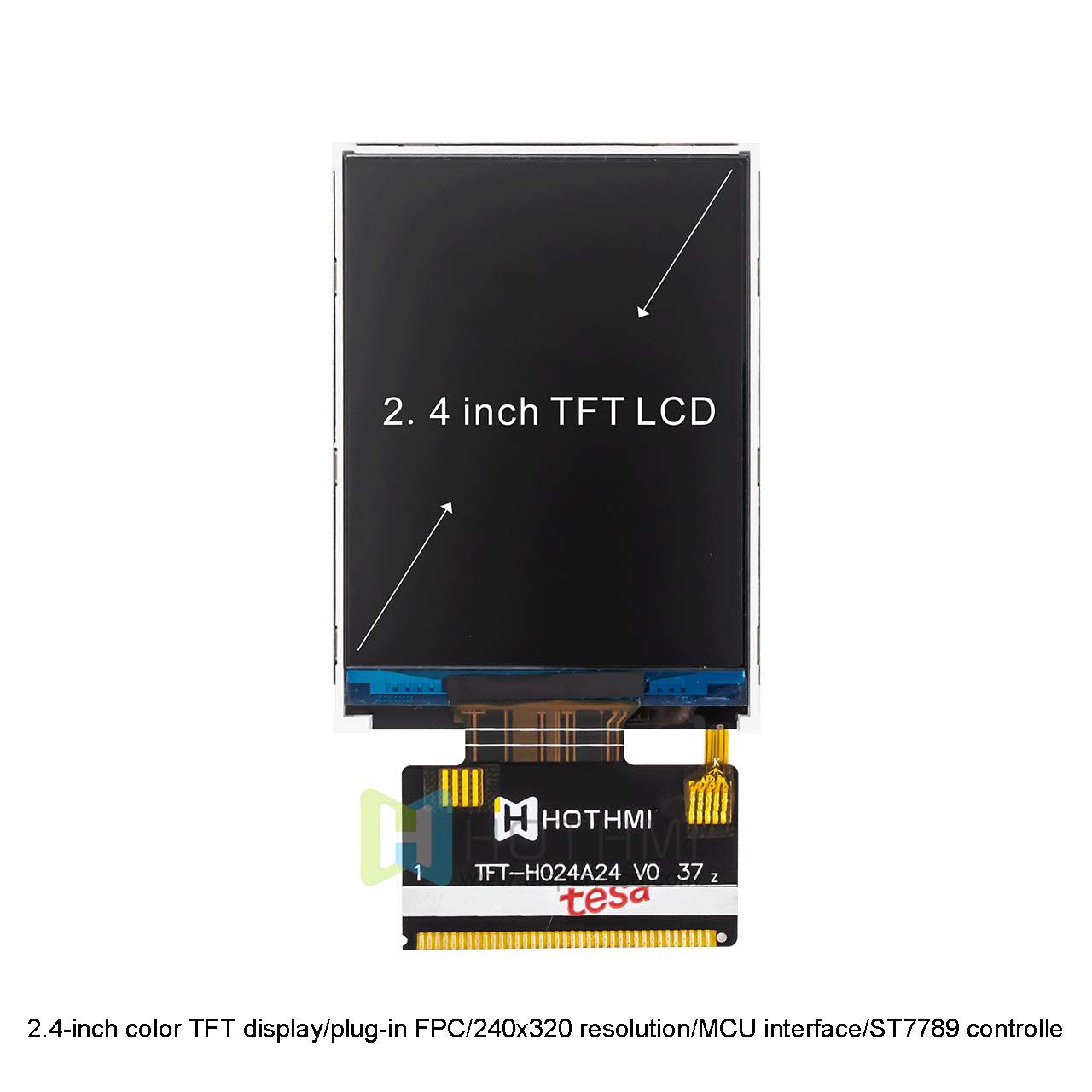

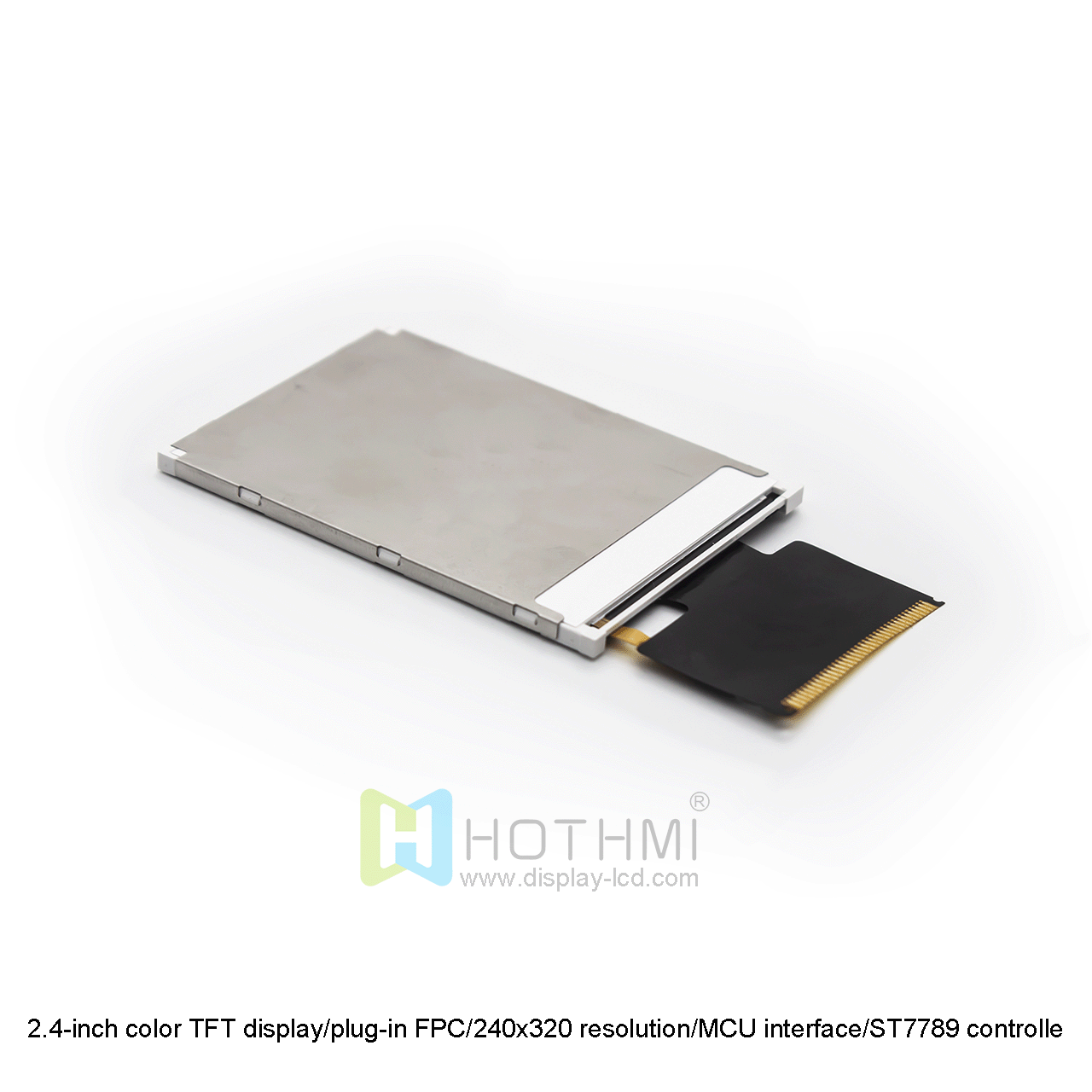

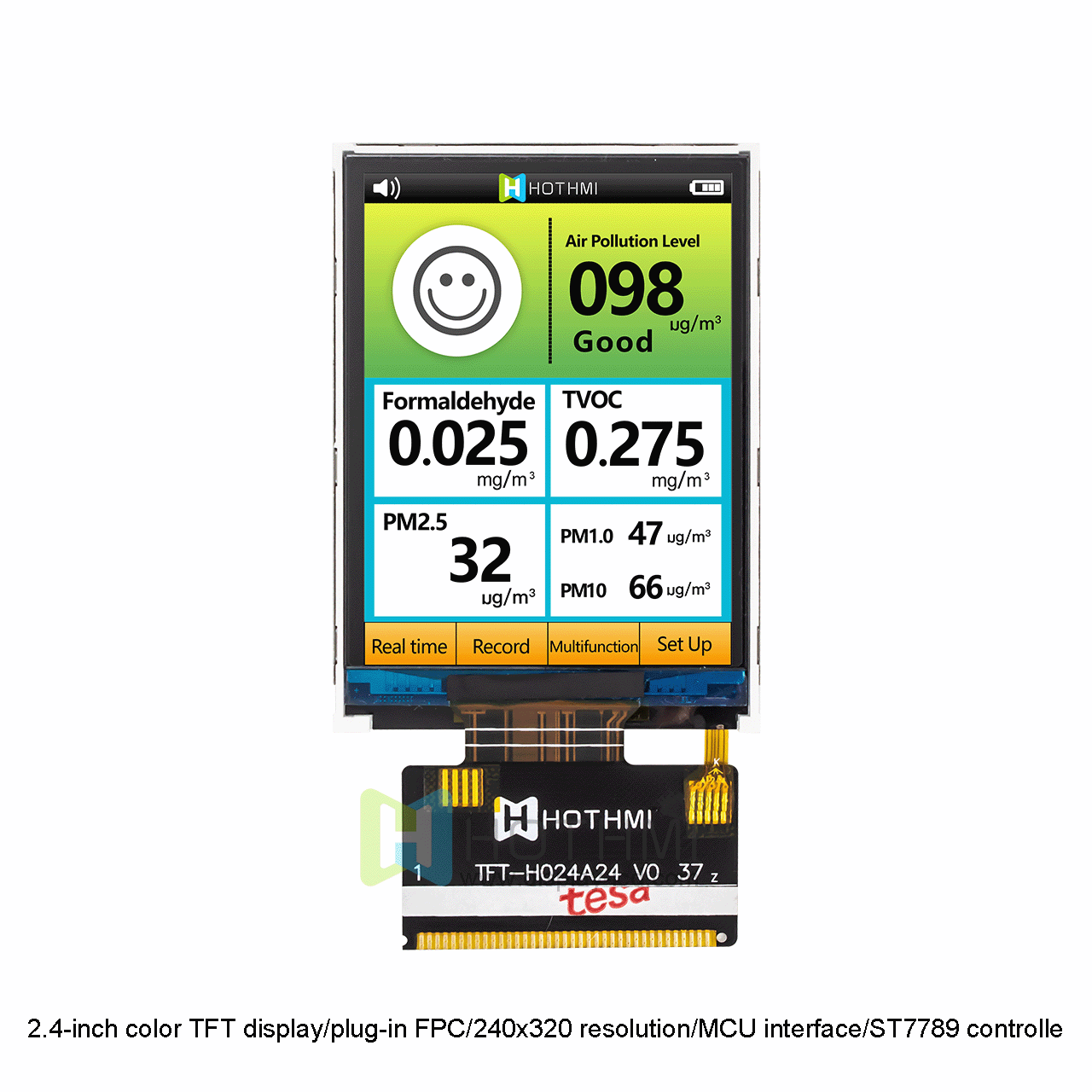

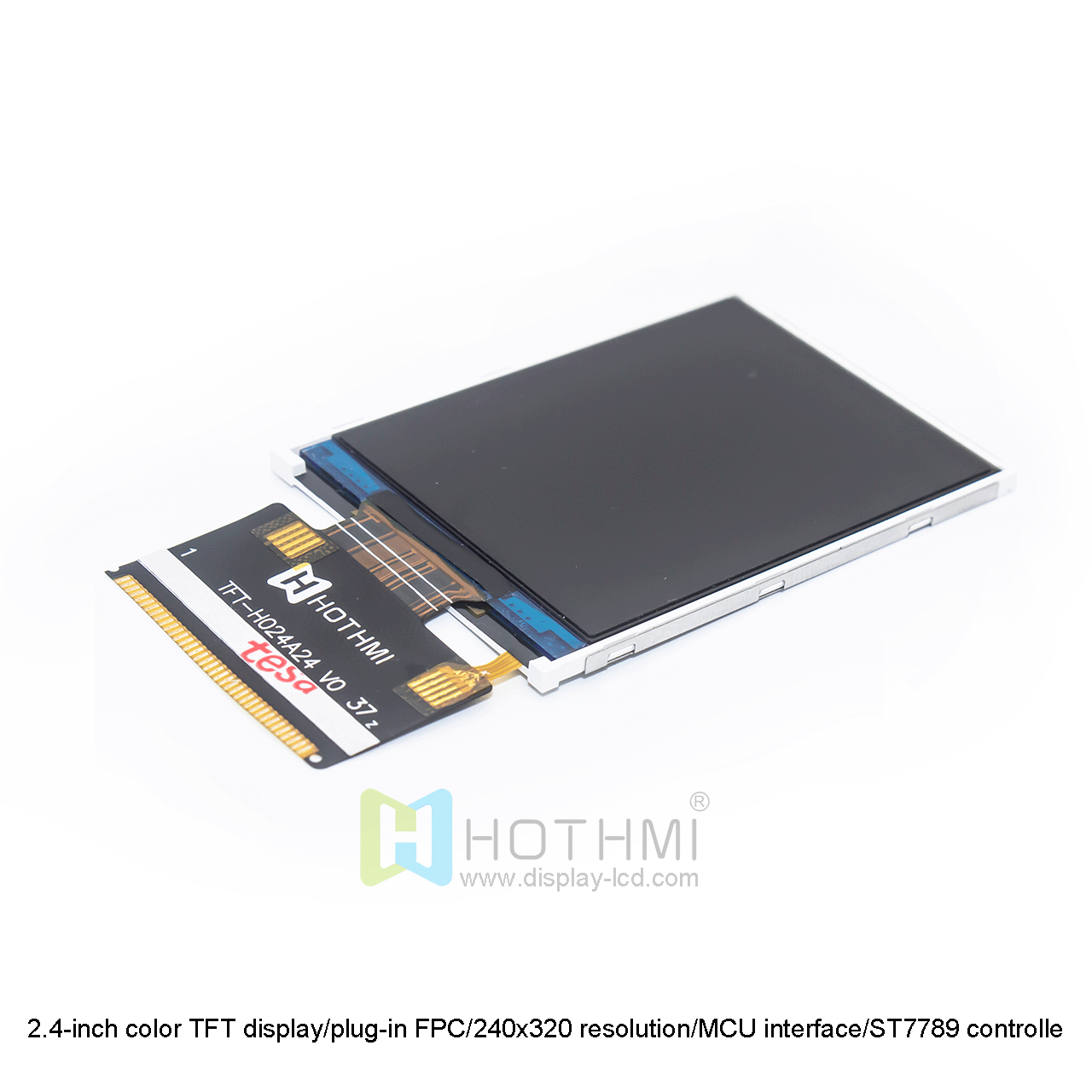

2.4-inch color TFT display/plug-in FPC/240x320 resolution/MCU interface/ST7789 controller

2.4-inch color TFT display/plug-in FPC/240x320 resolution/MCU interface/ST7789 controller TFT-H024A24QVTST3N37 is a 2.4-inch color display. The best viewing angle is U40/D20/L45/R45. The standard brightness LED backlight is 350 nits, which is moderately bright. This transmissive LCD requires a 2.8 voltage power supply and includes an MCU 8 bit or MCU 16 bit interface. It uses a flexible cable FPC cable, which is easy to connect and remove. It has multi-touch and is sensitive and smooth, making it a great choice for projects that require simple touch functions. The touch screen will allow users to interact with your application intuitively and create opportunities for interactive menus, control systems, or more engaging user experiences. Some industries and applications include industrial control panels, acreage meters, consumer products, home appliances, etc. This display has a very high cost-effectiveness and is suitable for end-product applications. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
