Product type：COG Graphic LCD
Show contents：128X64
Outline size(mm) ：87.6x50.4x0.3
Size of View Window(mm)：70.0x37.0
Display size(mm) ：65.27x32.63
Point spacing(mm)：0.51x0.51
Product application：Instruments
Visual angle：6H
Backlight type or brightness：STN- white backlight
Connection PIN Number：FPC-20PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3 V
Driver chip model：ST7565R

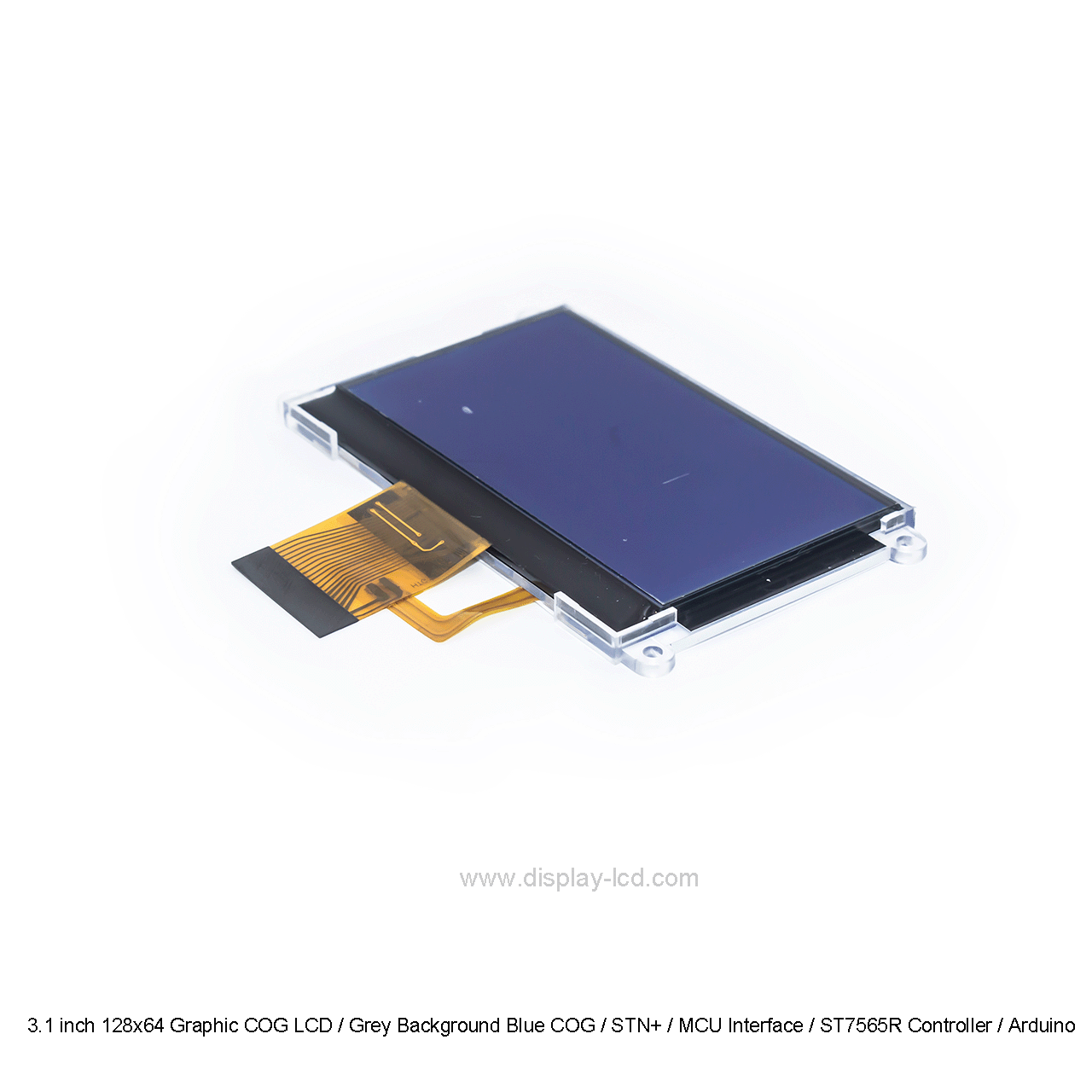

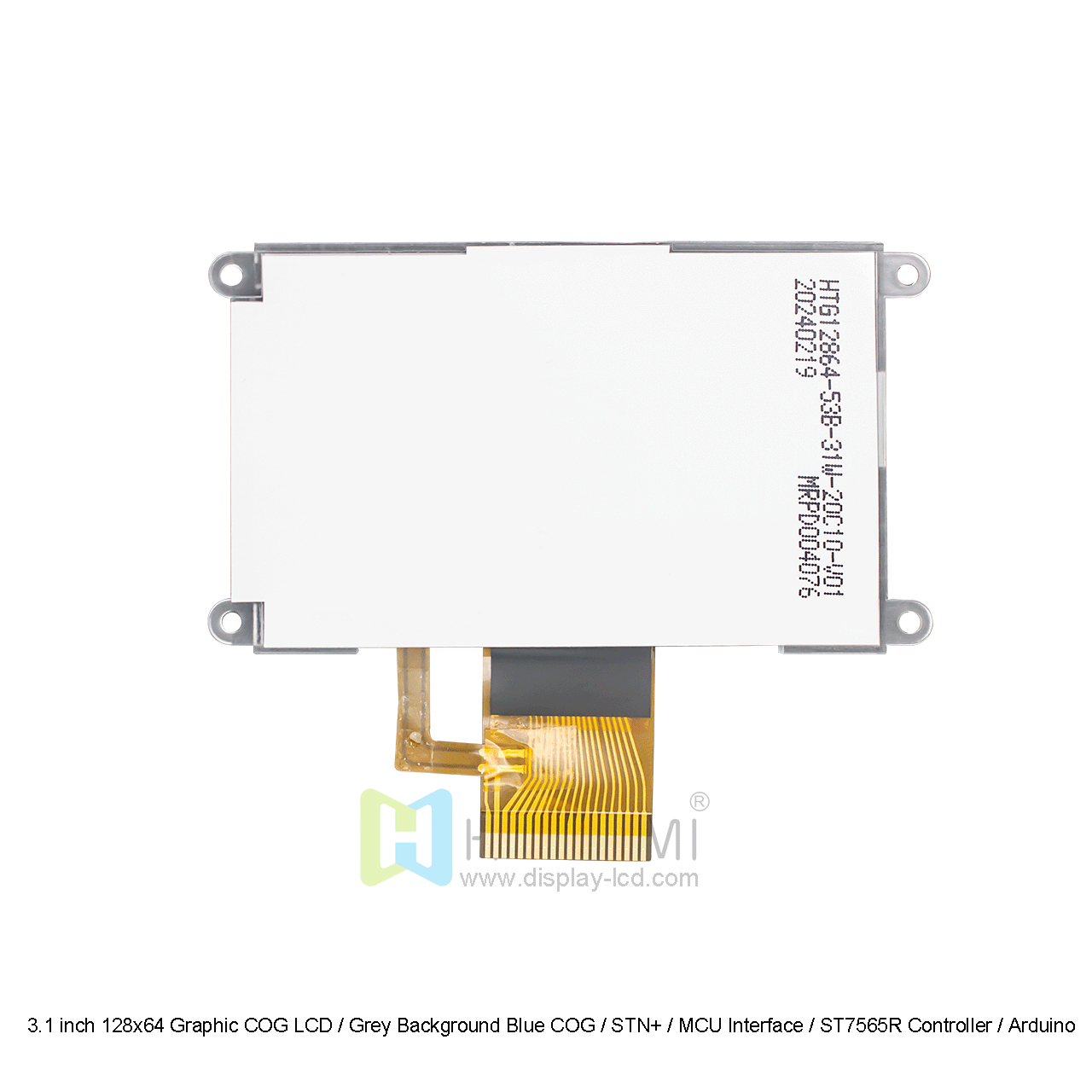

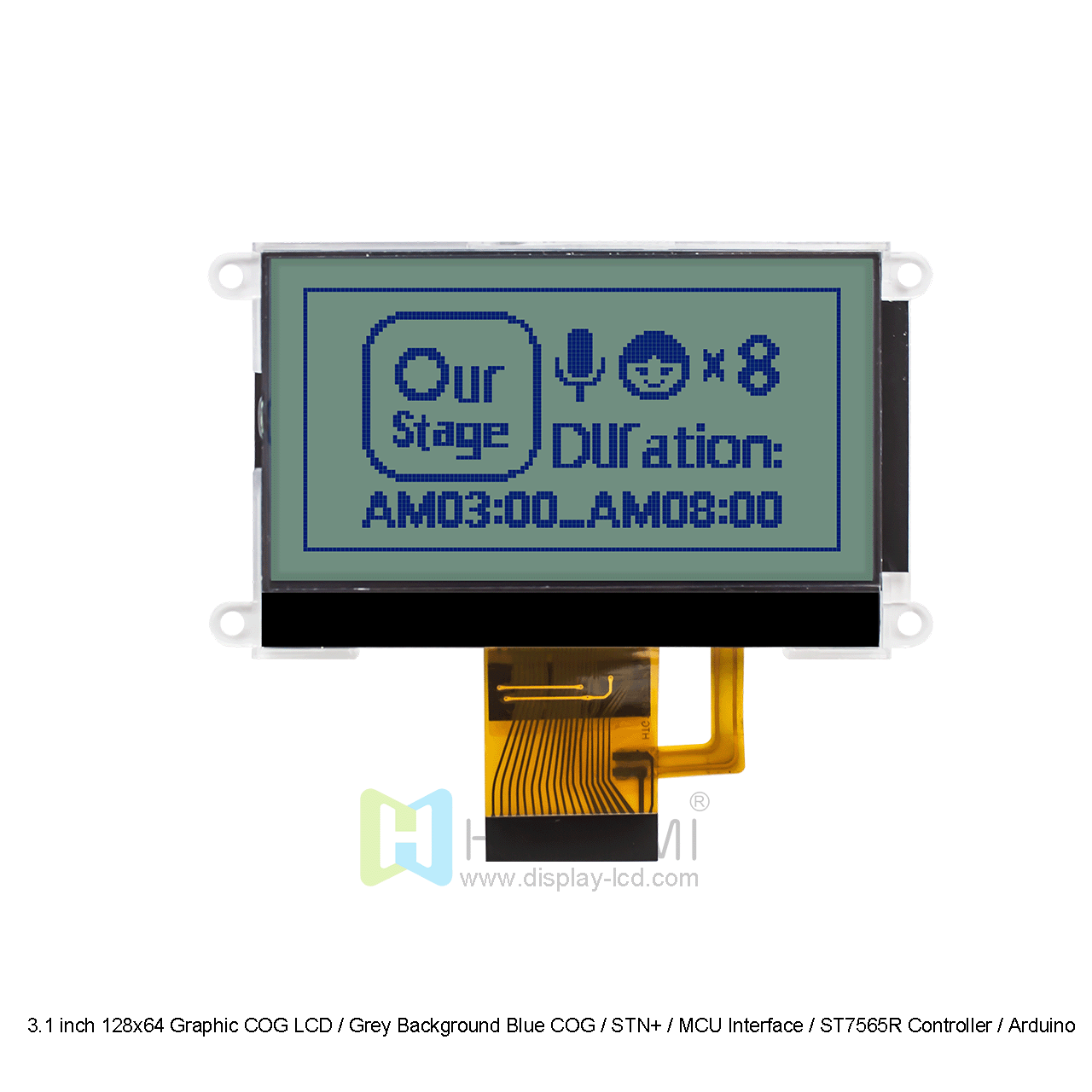

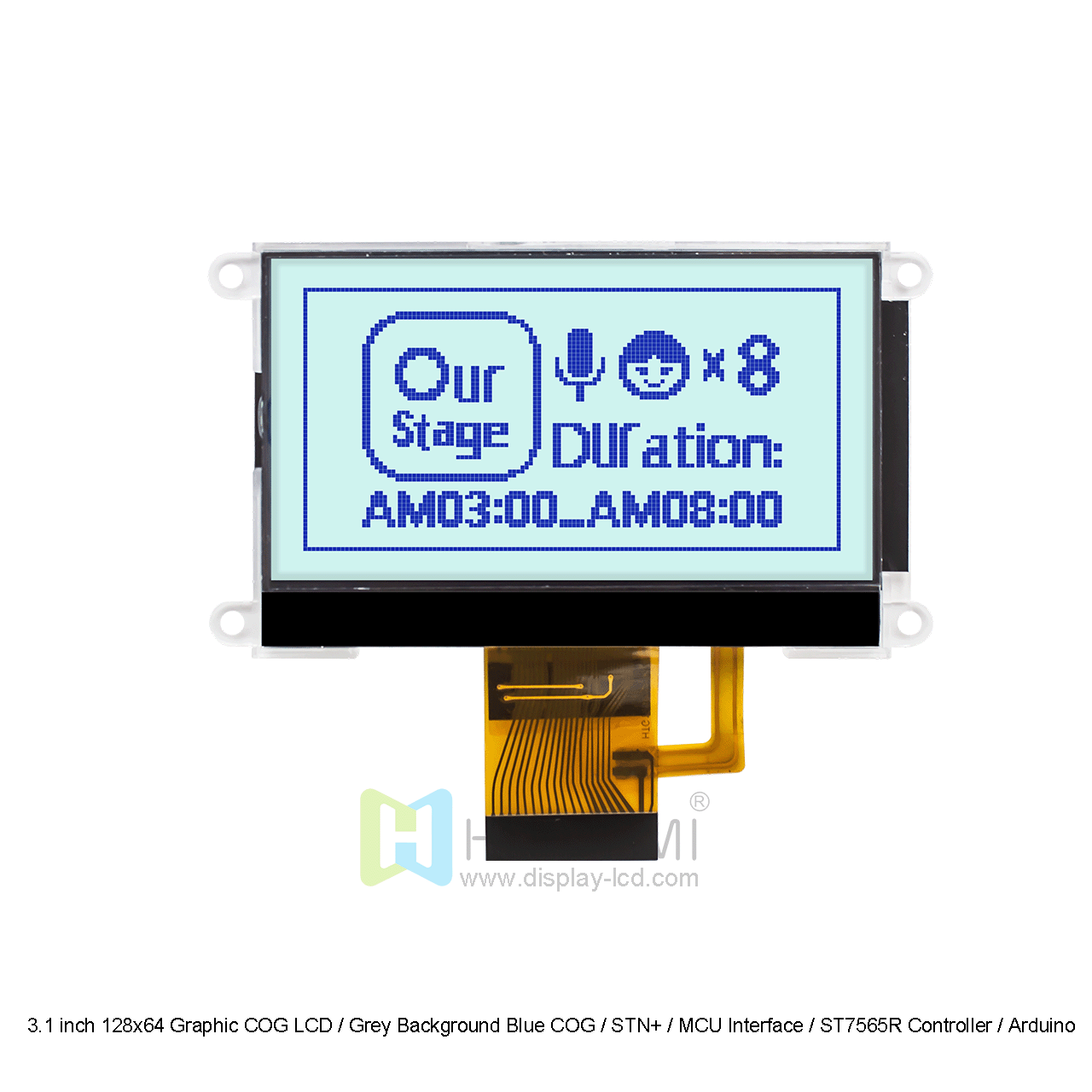

The Hot Display 128x64 Graphic Chip-on-Glass (COG) LCD module displays dark blue pixels on a grey background. This transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of lighting conditions.
This Graphic LCD Display Module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a wide range of applications. This model is designed to withstand harsh operating conditions and operates abnormally when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, it operates on a 3V supply voltage, and is RoHS compliant.
