Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  0.85寸128x128分辨率TFT/0.85寸迷你彩色顯示屏/IPS視角/4線SPI /GC9107 TFT-H085W01QQIGC2N12

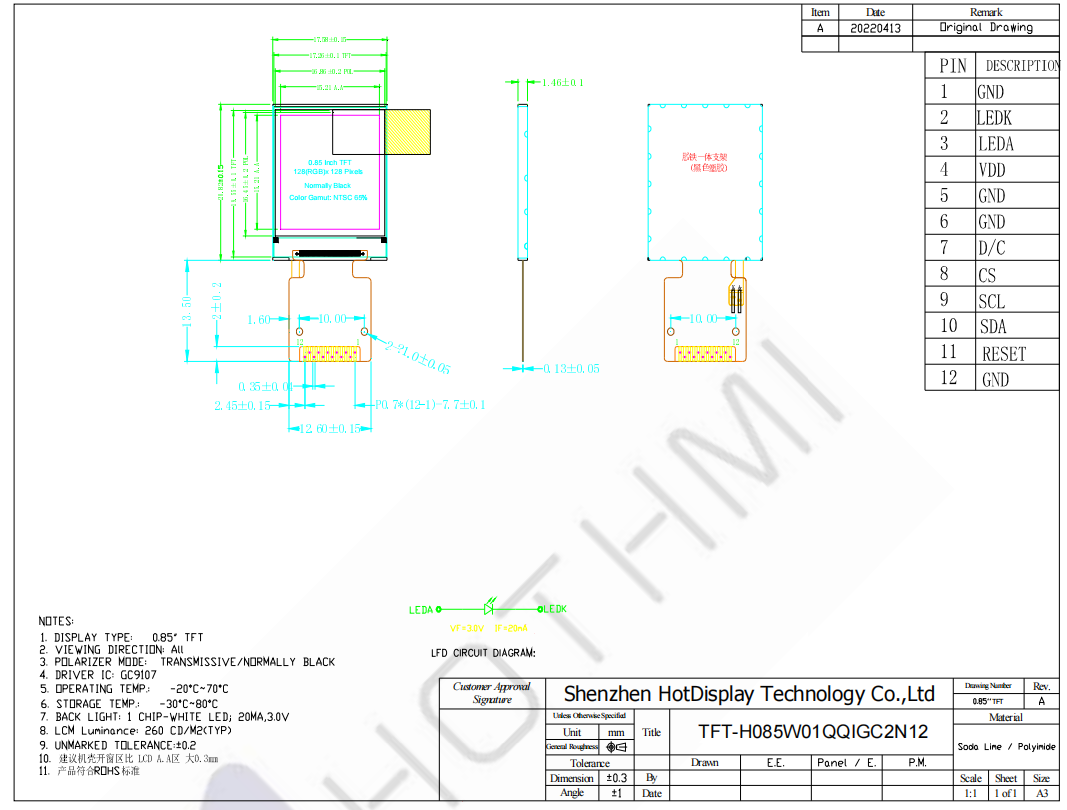

  • Model : 0.85 inch 128x128 resolution mini color display/IPS viewing angle/GC9107 TFT-H085W01QQIGC2N12

    Product type:TFT Display

    Show contents:128x128

    Outline size(mm) :17.58X20.82 x 1.46

    Size of View Window(mm):0.85

    Display size(mm) :0.85

    Effective size(mm):15.2064x15.2064

    Product application:handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle

    Visual angle:IPS

    Backlight type or brightness:white backlight

    Connection PIN Number:12PIN

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:+3.3 V

    Driver chip model:GC9107

    PDF download
Product description

0.85 inch 128x128 resolution TFT/0.85 inch mini color display/IPS viewing angle/4-wire SPI/GC9107

This TFT-H085W01QQIGC2N12 is a 128x128 dot 0.85 inch color TFT LCD module display with GC9107 controller, excellent display quality, full viewing angle, easy to be controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI. It can be used in any embedded system, industrial equipment, security and handheld devices that need to display with high quality and color images. It supports 4-wire serial spi interface. With optional fpc zif connector, easy to assemble or disassemble.

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen add-ons: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.
