Product type：TFT
Show contents：480x640
Outline size(mm) ：65.9*50.9*2.36
Display size(mm) ：2.8”
Effective size(mm)：57.6*43.2
Product application：Handheld smart devices
Visual angle：Full View (U80/D80/R80/L80)
Backlight type or brightness：800cd/m2
Connection PIN Number：FPC-30PIN
Interface mode：MIPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：3.3V
Driver chip model：ST7701<TFT>或 兼 容 芯 片

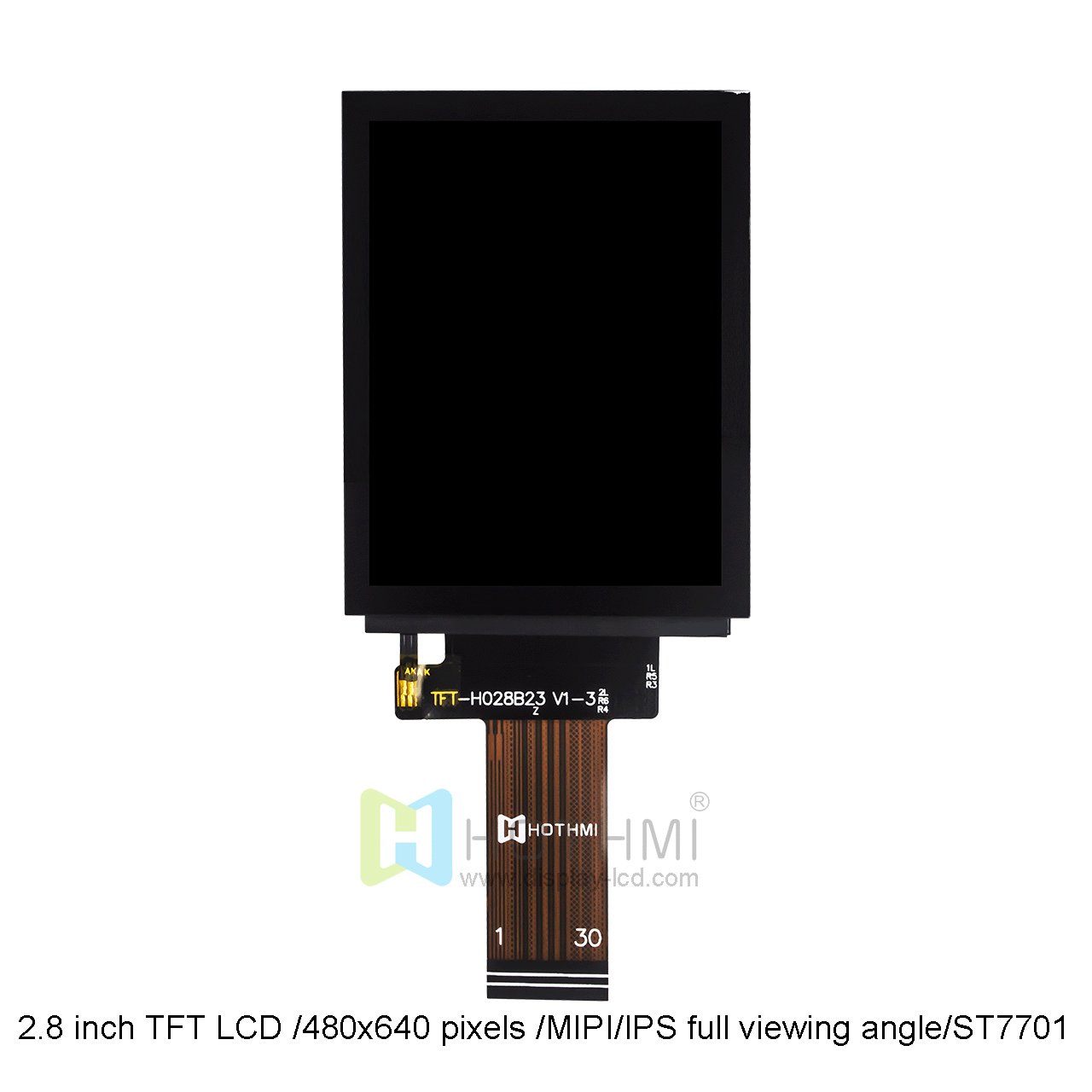

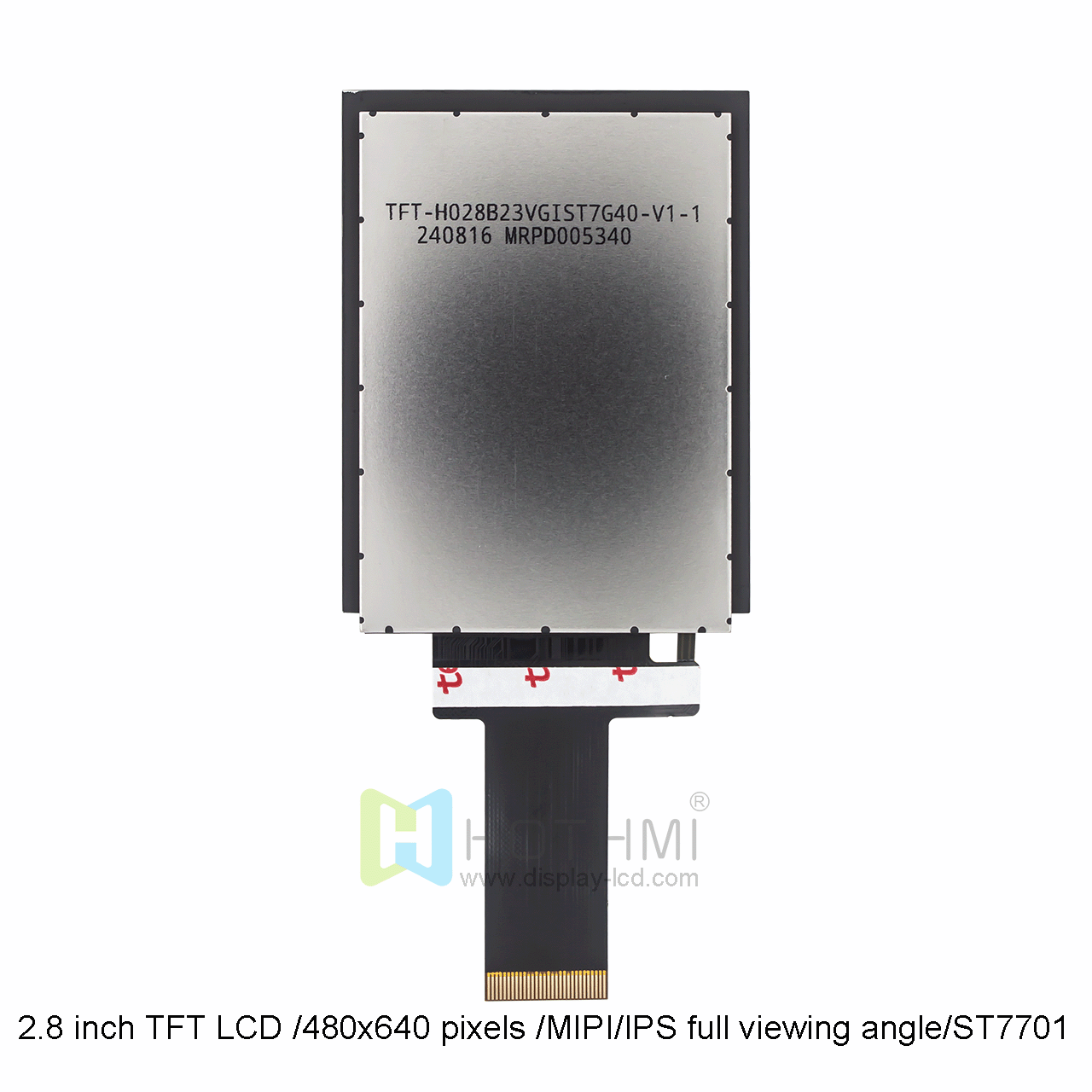

This 2.8-inch TFT LCD display is suitable for a variety of projects, from embedded systems to industrial equipment and handheld devices. It provides a clear 480x640 pixel resolution and a bright LED backlight brightness of 800 cd/m2, ensuring high-quality color image display.
In terms of connectivity, the MIPI interface improves the efficiency of communication with devices such as Arduino/C8051. This interface is not only flexible, but also supports fast data transmission, which makes it possible to update in real time, smooth animation and dynamic visual effects.
Although this display does not have touchscreen function, its compact size, low power consumption (using 3.3V power supply) and multi-domain vertical alignment (MVA) technology, but this product is IPS full viewing angle, no matter which direction you watch from, there is a good effect. This makes it an ideal choice for projects that do not require touch function but require portrait mode visual output.
In addition, the display is RoHS compliant and adheres to strict environmental and safety standards, reflecting the importance of environmental protection and user safety. Overall, this display combines performance, flexibility, and reliability for use in a wide range of modern electronic devices and projects.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
