Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  2.4寸TFT/240*320分辨率/SPI接口/全視角/陽光下可讀/TFT-H024A16QVIST6N10
  • Model : 2.4 inch TFT/240*320 resolution/SPI interface/full viewing angle/sunlight readable/TFT-H024A16QVIST6N10

    Product type:SPI-TFT

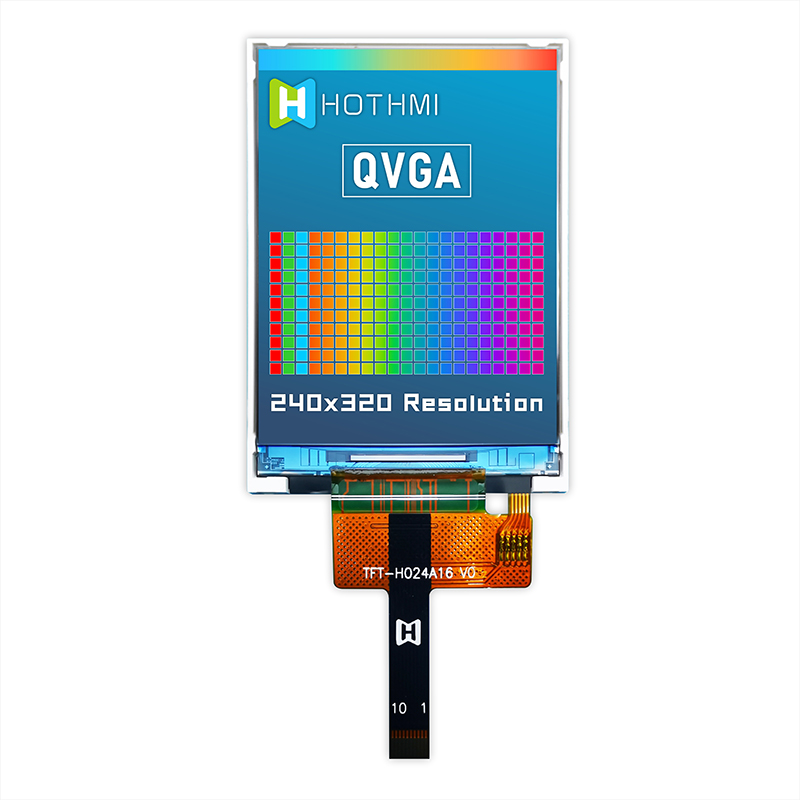

    Show contents:240x320

    Outline size(mm) :42.52x59.61x2.2

    Size of View Window(mm):2.4

    Display size(mm) :2.4

    Effective size(mm):36.72x48.96

    Product application:Outdoor instrumentation, vehicle

    Visual angle:Full view

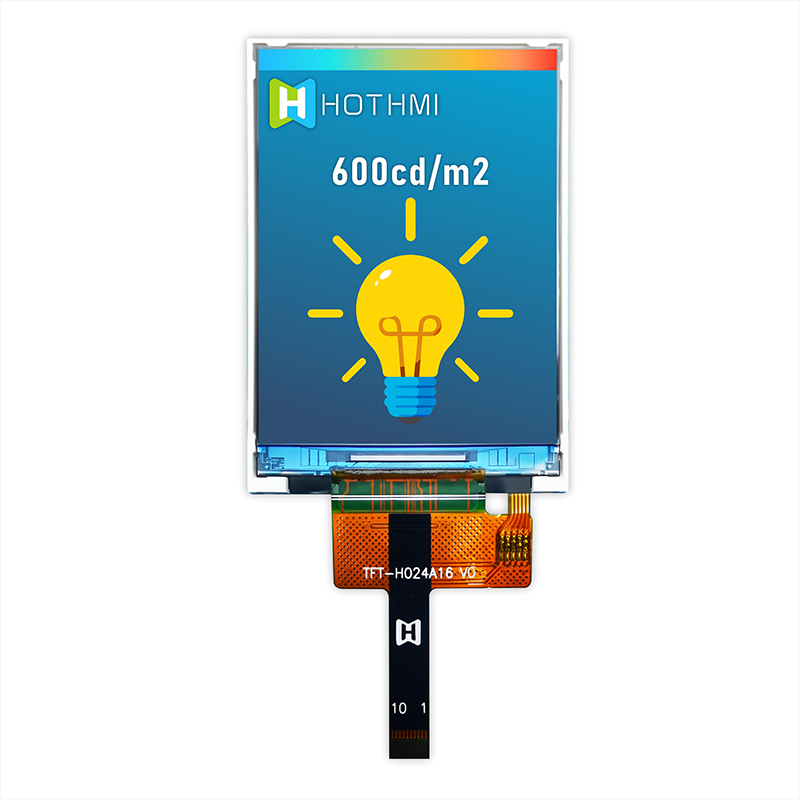

    Backlight type or brightness:600cd/m2

    Connection PIN Number:10pin

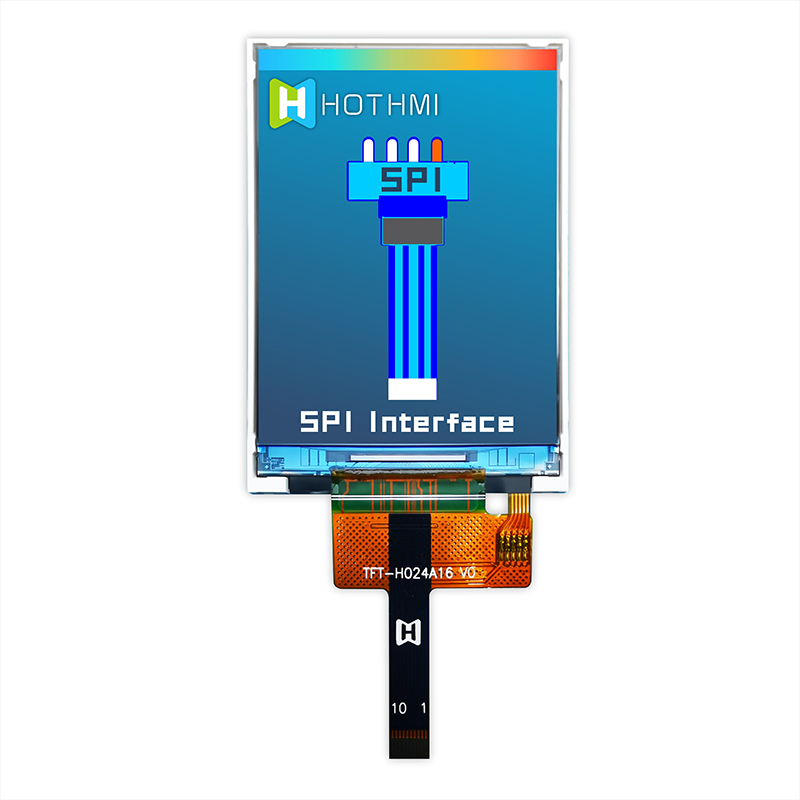

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-30~80℃

    Power supply voltage:3.3V

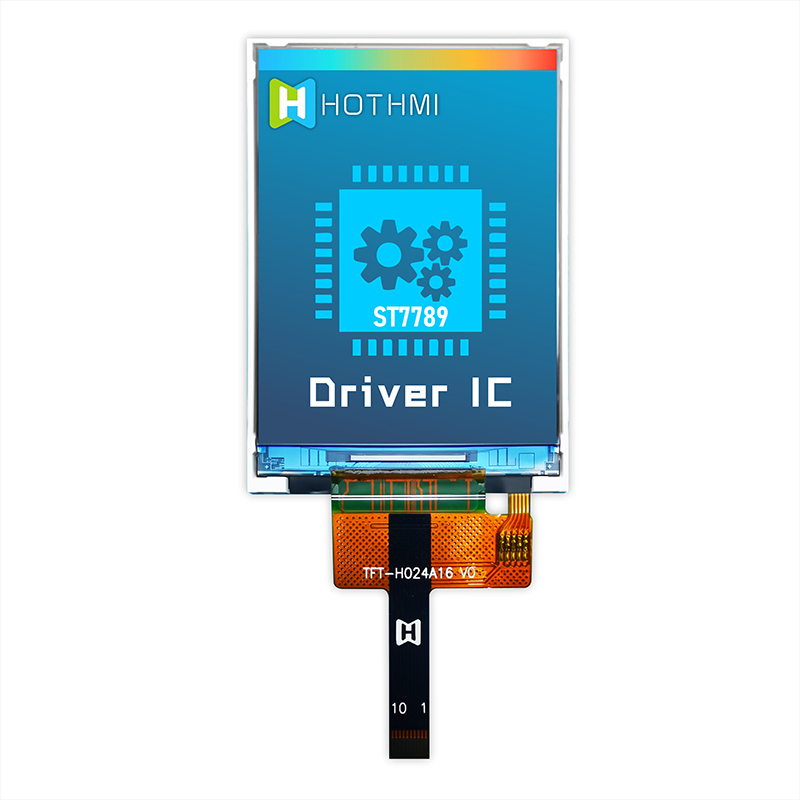

    Driver chip model:ST7789

    PDF download
Product description

describe


TFT-H024A16QVIST6N10 is a 2.4-inch miniature TFT display module with a resolution of 240x320 pixels. The micro-LCD module has a built-in ST7789 IC; it supports serial 3-wire/4-wire SPI interface. This model has a module size of 42.52x59.61 mm and an active area of 36.72x48.96mm; it has an analog supply voltage range of 2.5V to 3.7V (typically 3.3V).

TFT-H024A16QVIST6N10 is a miniature TFT display with portrait mode, if you want to use a touch screen, please contact us for more technical support. This 240x320 TFT LCD has a brightness of 600 cd/m2 (typ.) and can operate in temperatures from -30°C to 80°C; its storage temperature range is from -30°C to 80°C.
