Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  10.1寸TFT彩屏 /1024*600分辨率 /全視角IPS工藝 /LVDS接口 /TFT-H101A9WSIFTKC40
  • Model : 10.1 inch TFT /1024*600 resoliution/highlight/Full Viewl/TFT-H101A9WSIFTKC40

    Product type:TFT horizontal screen

    Show contents:1024x600

    Outline size(mm) :235.00x143.00x6.95

    Size of View Window(mm):10.1

    Display size(mm) :10.1

    Effective size(mm):222.72x125.28

    Product application:Industrial display

    Visual angle:Full view

    Backlight type or brightness:1000cd/m2

    Connection PIN Number:40PIN

    Interface mode:LVDS

    Special instructions:With CTP capacitive touch chip GT9271

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:EK79001+EK73215

    PDF download
Product description

Product Description

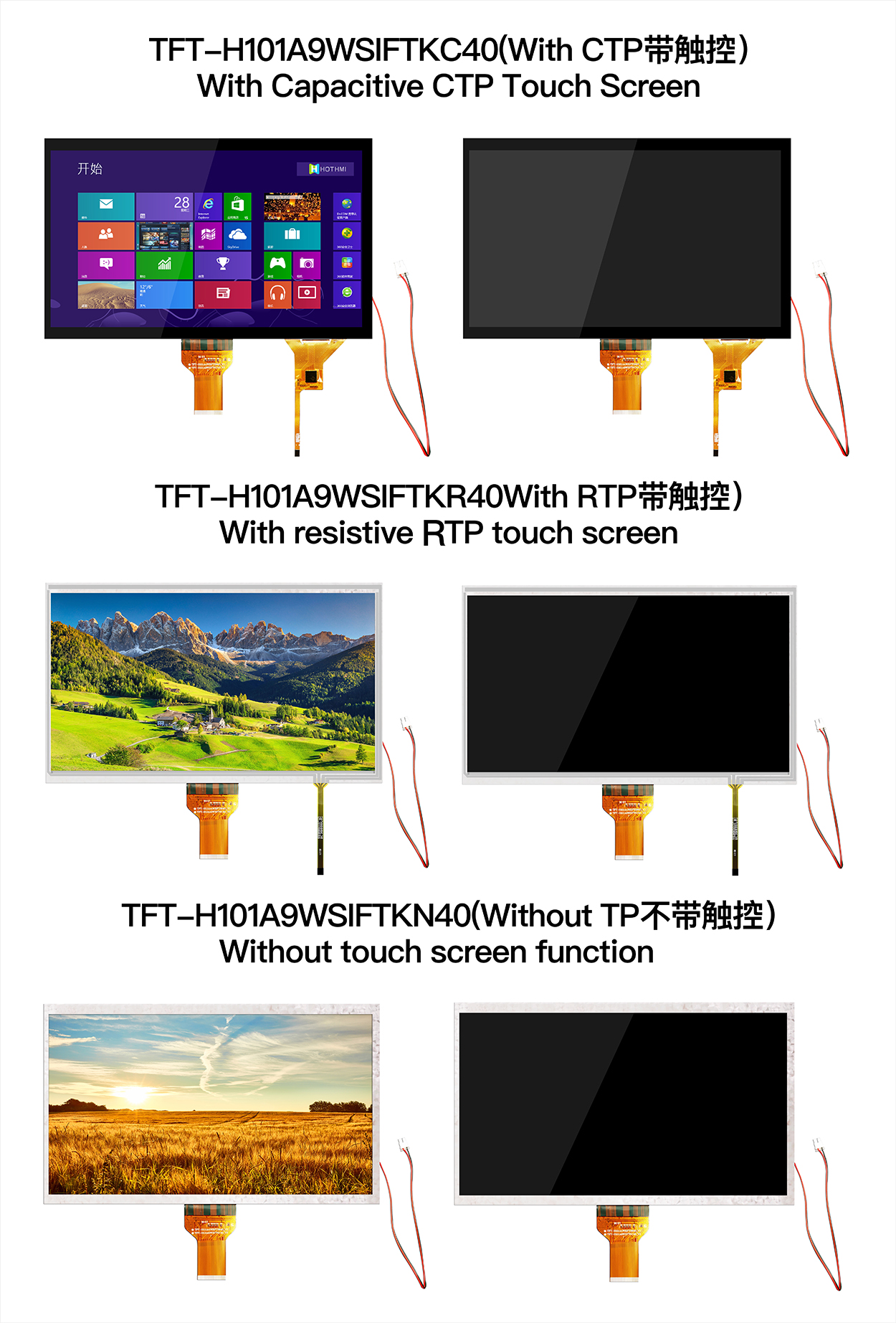

The TFT-H101A9WSIFTKC40 is a 10.1-inch wide temperature IPS TFT-LCD monitor with a projected capacitive touch screen with a resolution of 1024x600 pixels. The module has built-in EK79001+EK73215 driver IC and supports LVDS interface. TFT-H101A9WSIFTKC40 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical), contrast ratio 800:1 (typical), brightness 1000 nits (typical) value), glare panel, 16:9 aspect ratio. The touch screen has built-in GT9271 IC, which supports I2C interface and multi-touch function. The H101A9 model has a projected capacitive touch panel (PCAP), but no touch panel option (TFT-H101A9WSIFTKN40). The supply voltage (VCC) of the TFT-H101A9WSIFTKC40 is 3.0V to 3.6V, with a typical value of 3.3V. It can work in temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.
