Location：Home  >  Product center  >  TFT display  >  TFT display standard products | Full-view TFT color screen | High-brightness series TFT  >  8.0寸TFT彩屏|高清800*1280分辨率|全視角IPS工藝|MIPI 接口|TFT-H080B7HDINV6N31
  • Model : 8.0 inch TFT /800*1280 resoliution/IPS/SPI interface/TFT-H080B7HDINV6N31

    Product type：TFT

    Show contents：800x1280

    Outline size(mm) ：114.7x184.2x2.65

    Size of View Window(mm)：8.0

    Display size(mm) ：8.0

    Effective size(mm)：107.64x172.22

    Product application：Instrumentation

    Visual angle：Full View

    Backlight type or brightness：600cd/m2

    Connection PIN Number：FPC-30PIN

    Interface mode：MIPI

    Working temperature：-20~70℃

    Power supply voltage：2.8V

    Driver chip model：NV3051F1

Product description

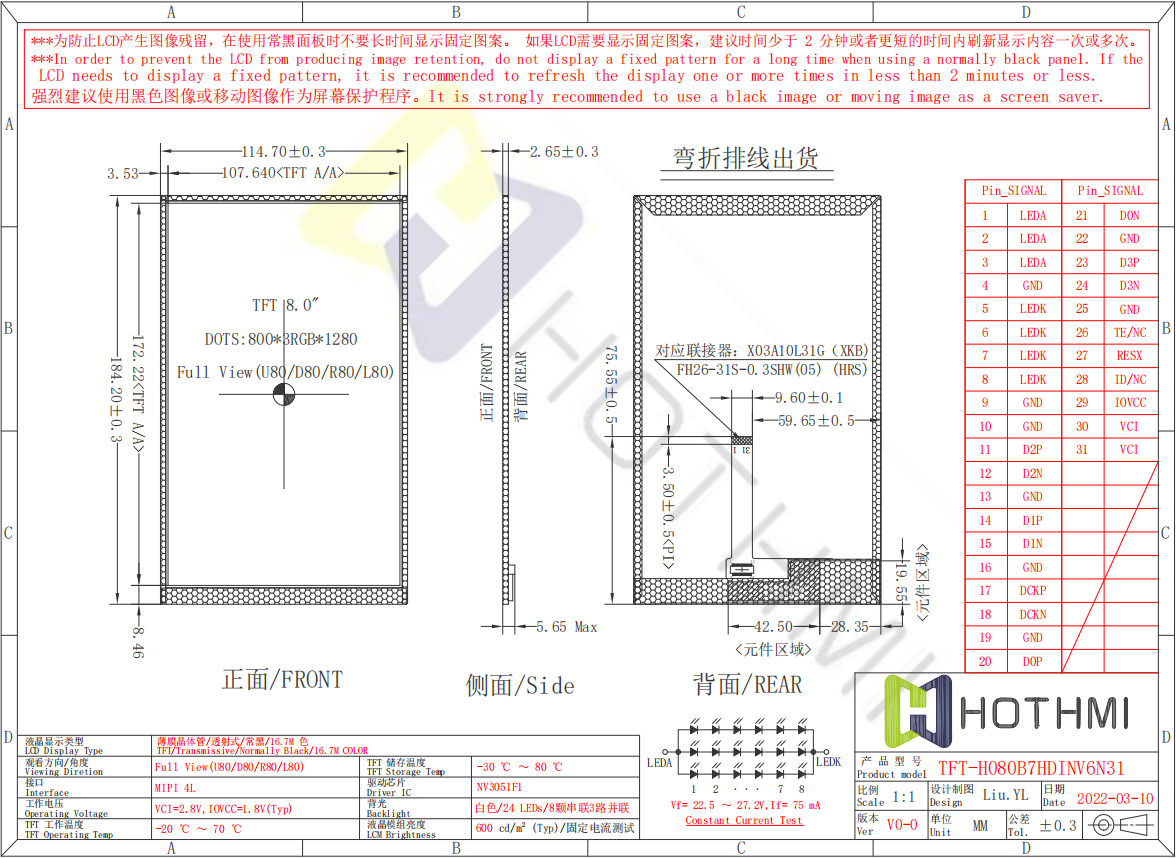

8.0 inch TFT /800*1280 resoliution/IPS/SPI  interface/TFT-H080B7HDINV6N31image.png
