Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  1.14寸手環(huán)標準屏/135*240分辨率/TFT-H011A1QCIST3N10
  • Model : 1.14 inch bracelet standard screen/135*240 resolution/TFT-H011A1QCIST3N10

    Product type:TFT LCD

    Show contents:135x240

    Outline size(mm) :17.6x31.0x1.65

    Size of View Window(mm):1.14

    Display size(mm) :1.14

    Effective size(mm):14.86x24.91

    Visual angle:Full View

    Backlight type or brightness:350cd/m2

    Connection PIN Number:FPC

    Interface mode:SPI

    Working temperature:-20~70℃

    Power supply voltage:2.8V

    Driver chip model:ST7789H2

    PDF download
Product description

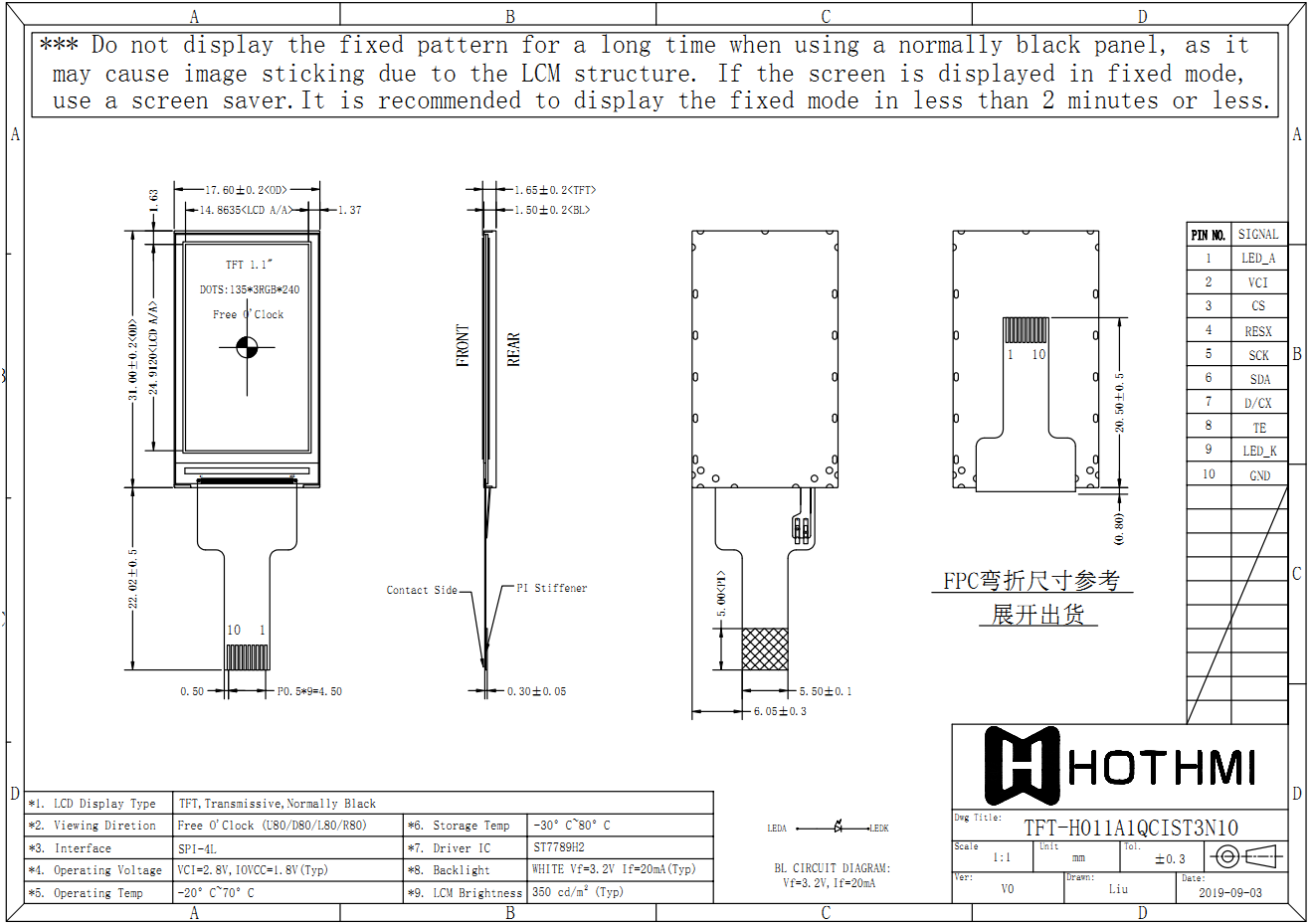

1.14 inch bracelet standard screen/135*240 resolution/TFT-H011A1QCIST3N10image.png
