Product type：TFT Module
Show contents：480x640

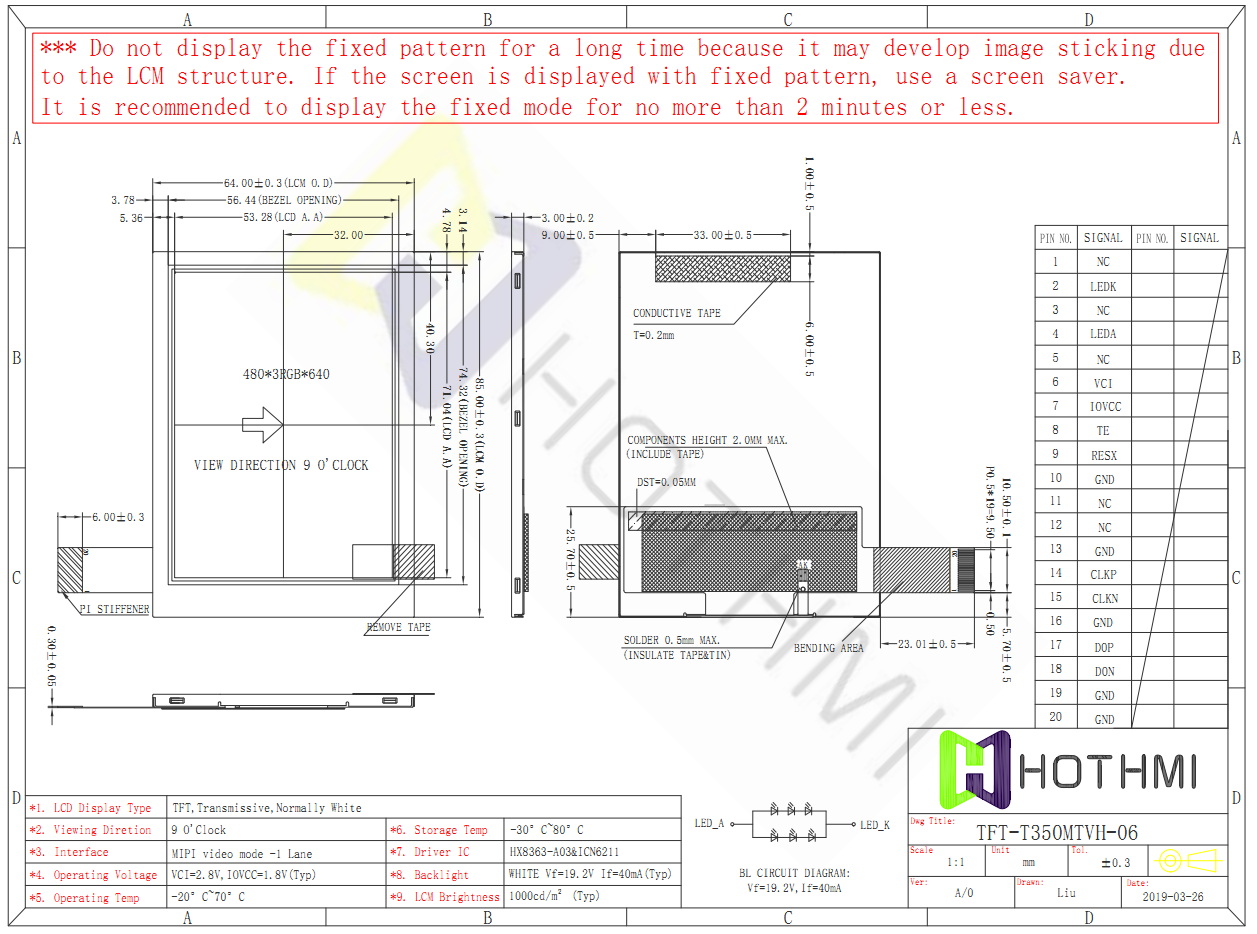

Outline size(mm) ：64.0x85.0x3.0
Size of View Window(mm)：3.5
Display size(mm) ：3.5
Effective size(mm)：53.28x71.04
Product application：數碼相機
Visual angle：12H/9H
Backlight type or brightness：1000cd/m2
Connection PIN Number：FPC-20PIN
Interface mode：MIPI
Working temperature：-20~70℃
Power supply voltage：2.8v
Driver chip model：HX8363-A03&ICN6211

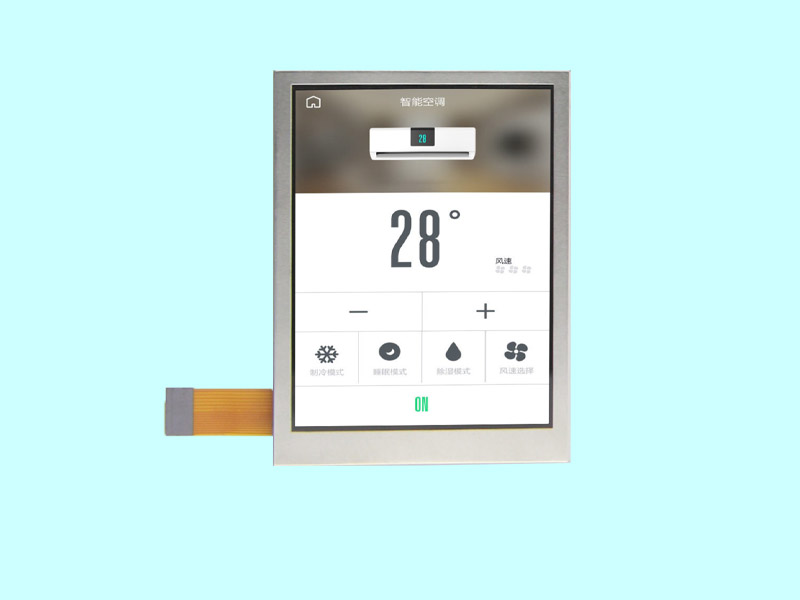

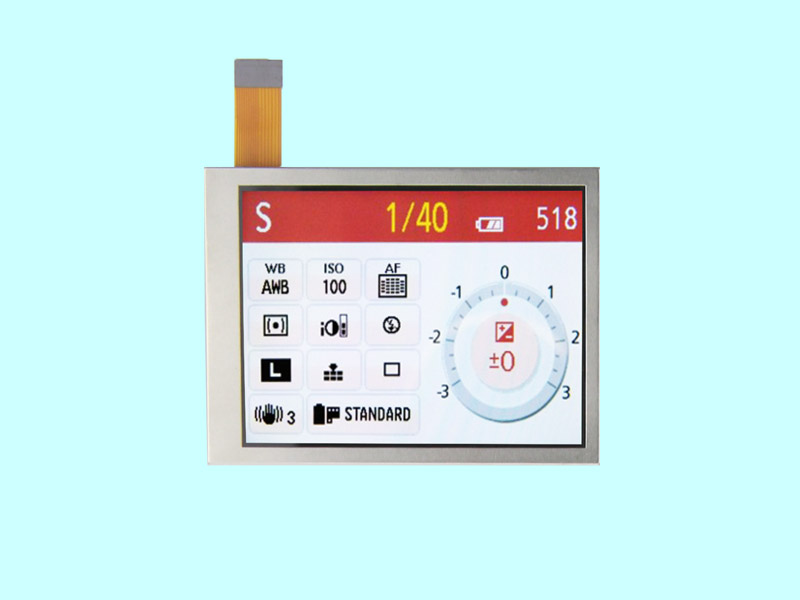

3.5''TFT/480*640Resolution/High brightness/TFT-T350MTVH-06
