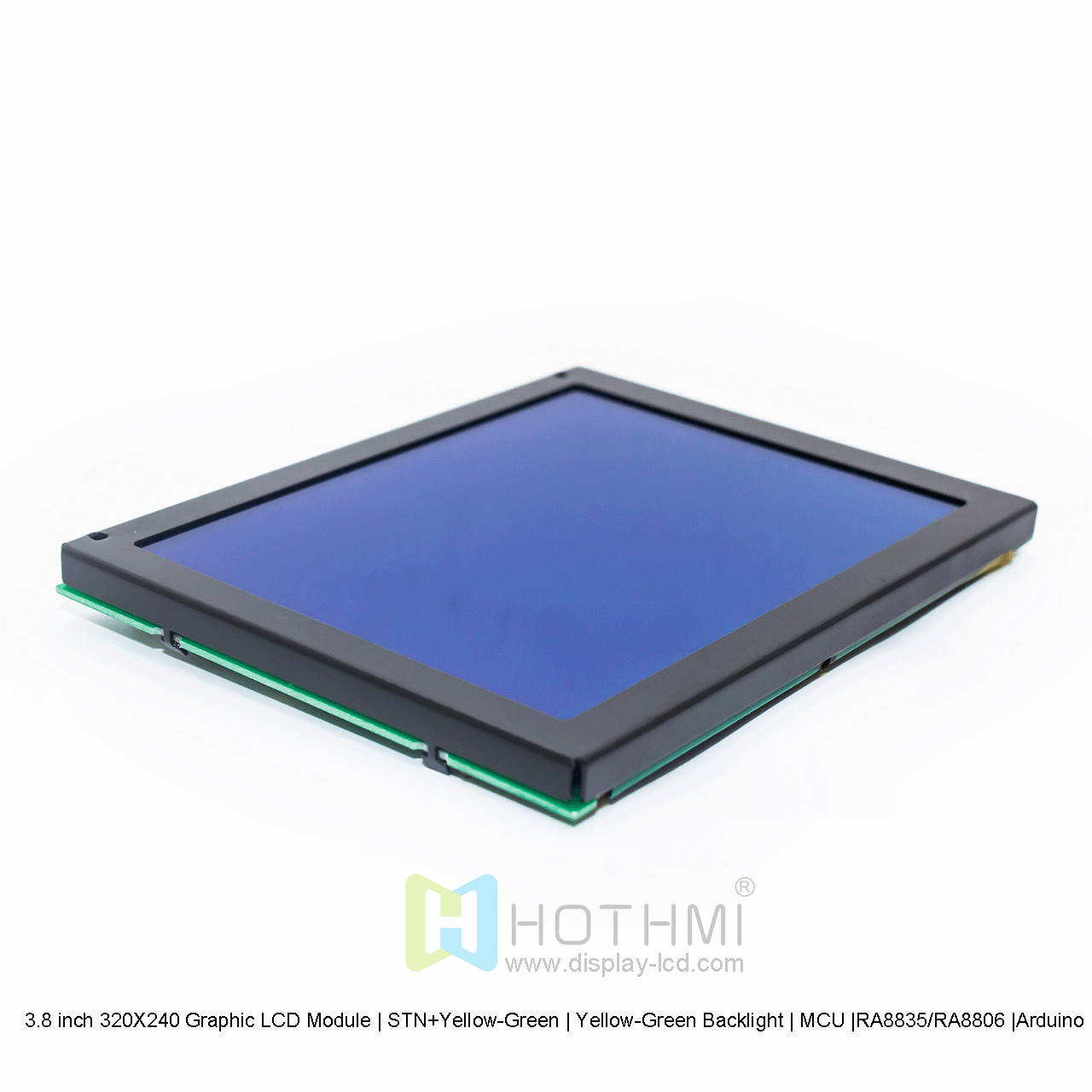

Product type：Graphic LCD Module
Show contents：320x240
Outline size(mm) ：92.0x71.3x9.0
Size of View Window(mm)：78.78x59.68
Display size(mm) ：76.78x57.58
Point spacing(mm)：0.24x0.22
Product application：Instruments
Visual angle：6H
Connection PIN Number：FFC-20PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：3.3V

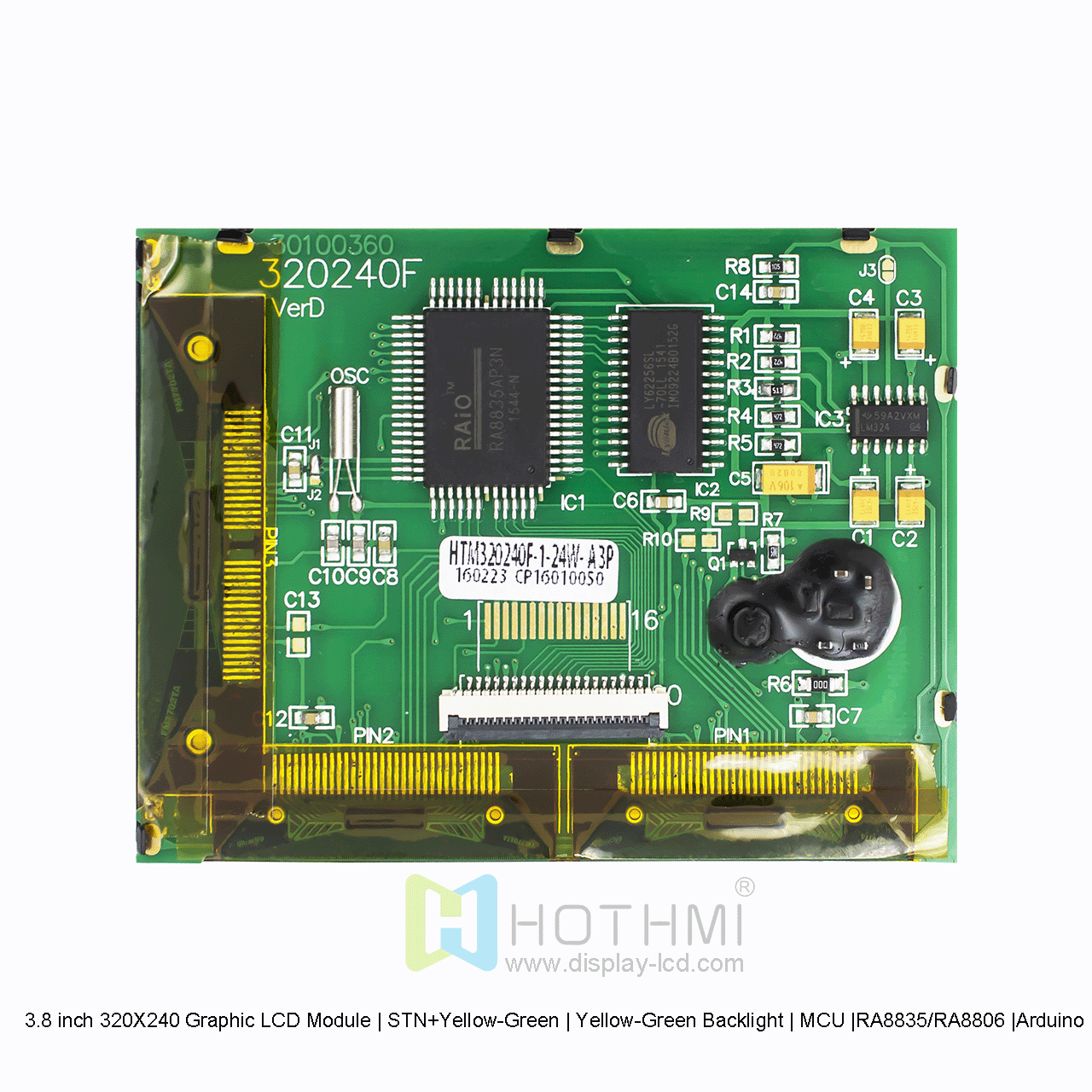

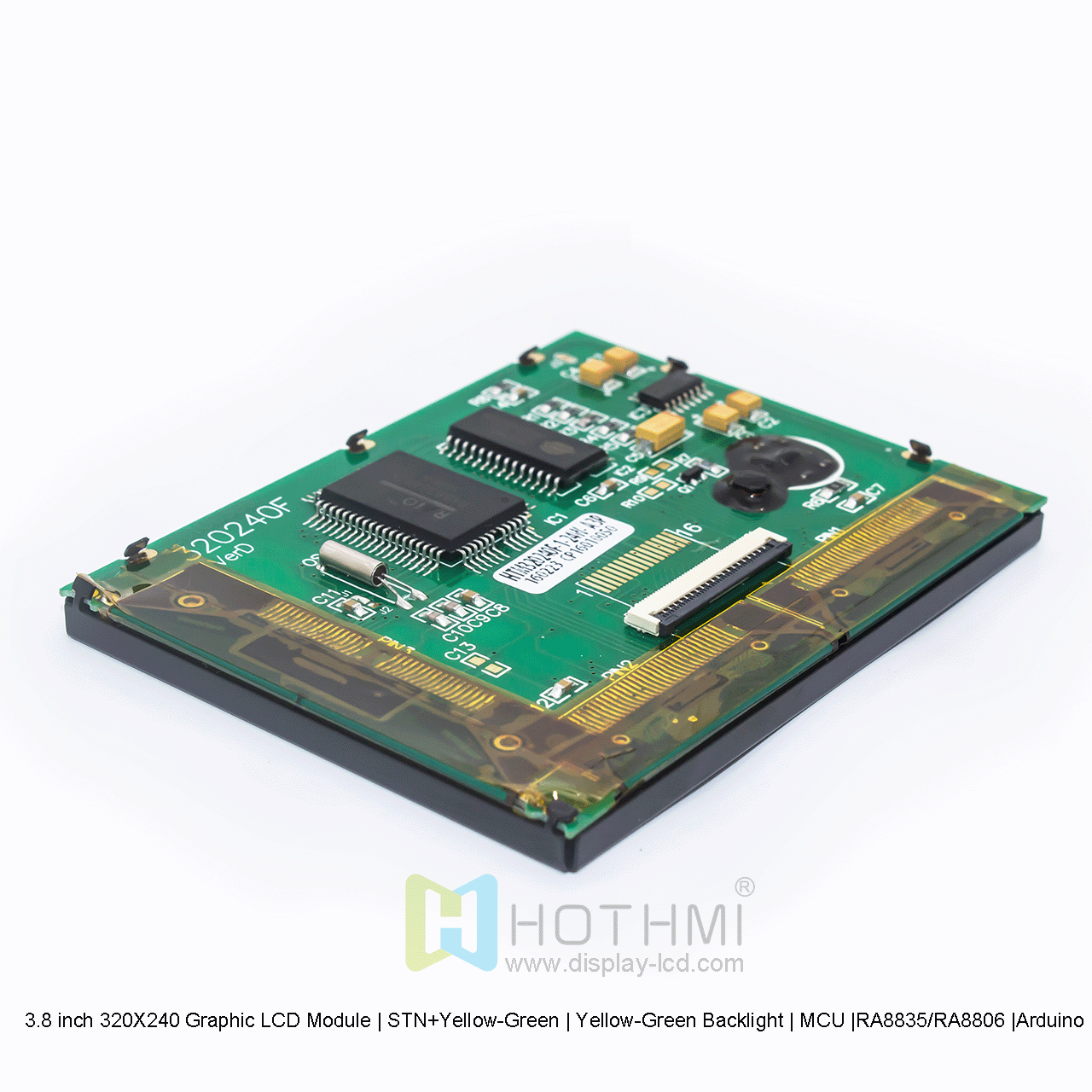

Driver chip model：RA8835

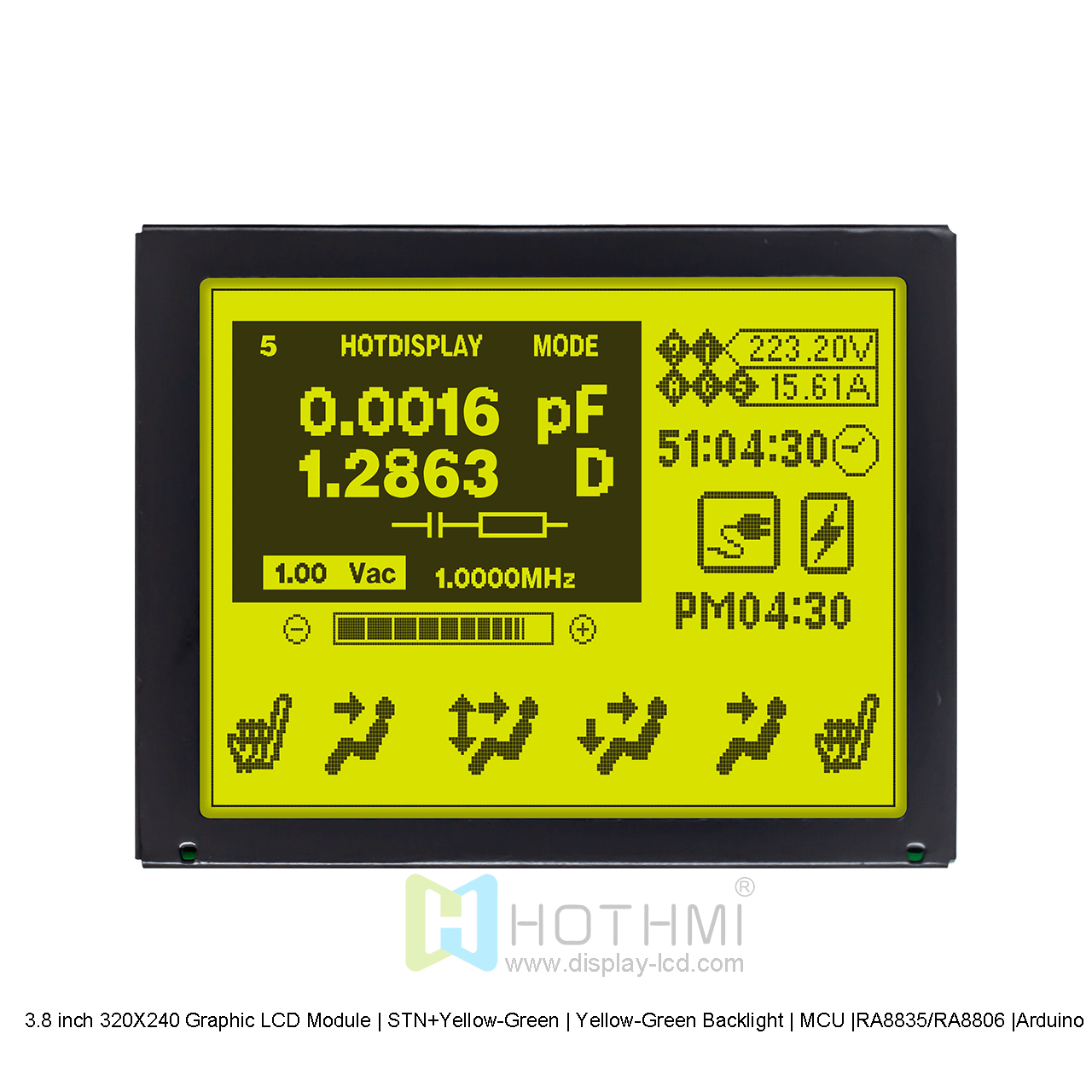

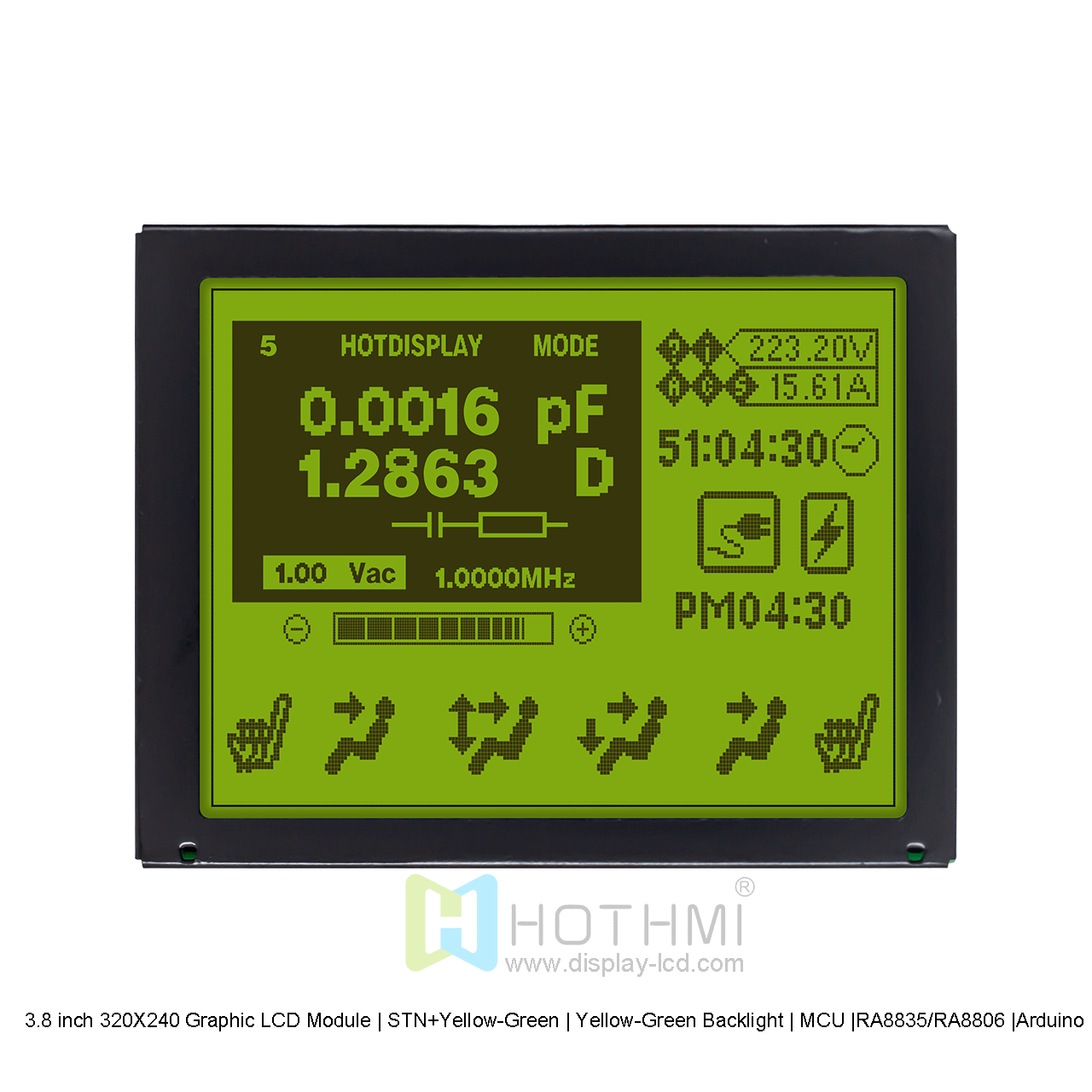

This HOT Display 320X240 Graphic LCD Module displays deep black pixels illuminated on a yellow-green background. This transflective LCD display is carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. This model can also be backlight-free, with the effect of a yellow-green background with dark pixels. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This product model is designed to withstand harsh working conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.
