Product type：Graphic LCD Module
Show contents：256x128
Outline size(mm) ：147.0x116.0x14.6
Size of View Window(mm)：114.0x64.0
Display size(mm) ：127.0x70.0
Point spacing(mm)：0.47x0.47
Product application：Instruments
Visual angle：6H
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V

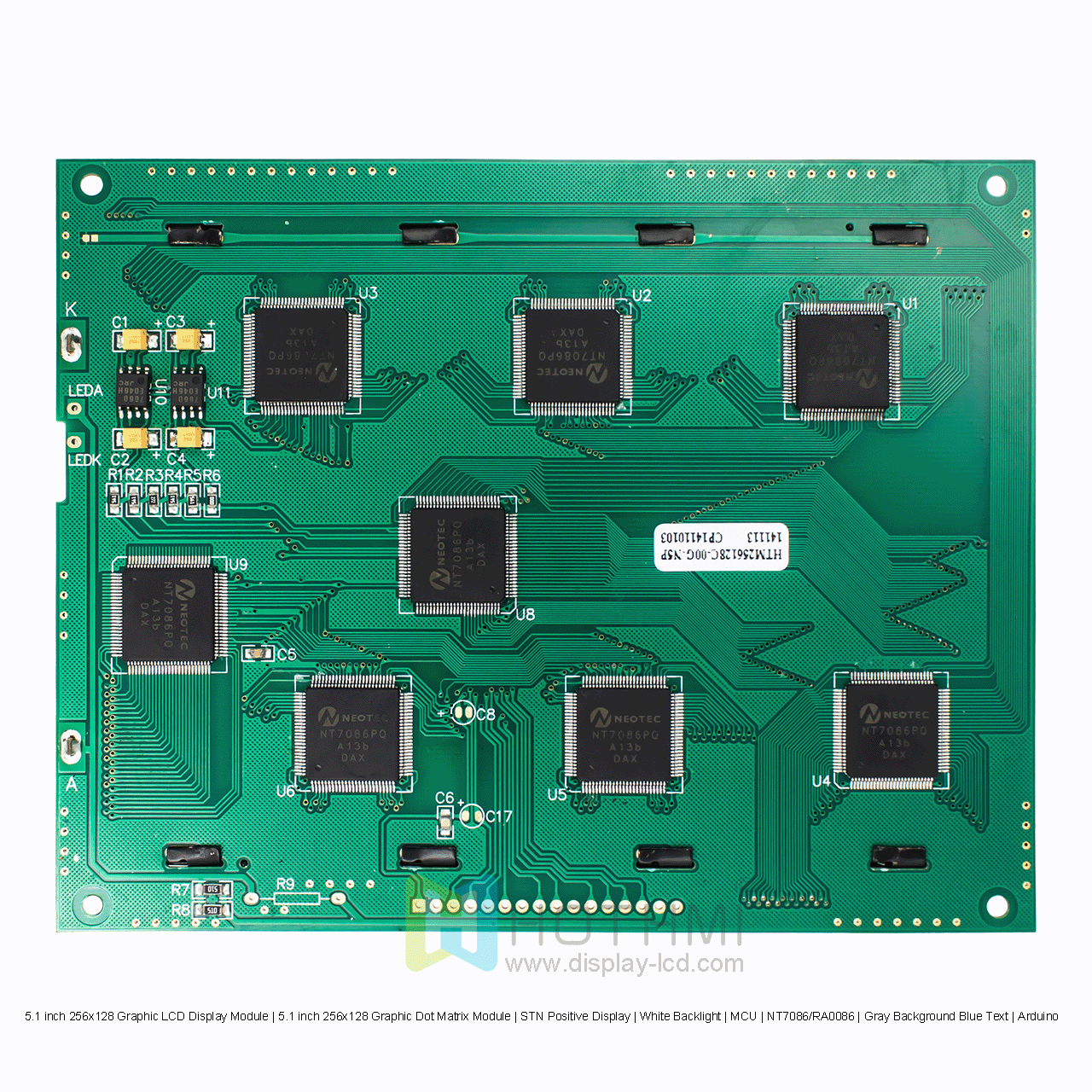

Driver chip model：NT7086/RA0086

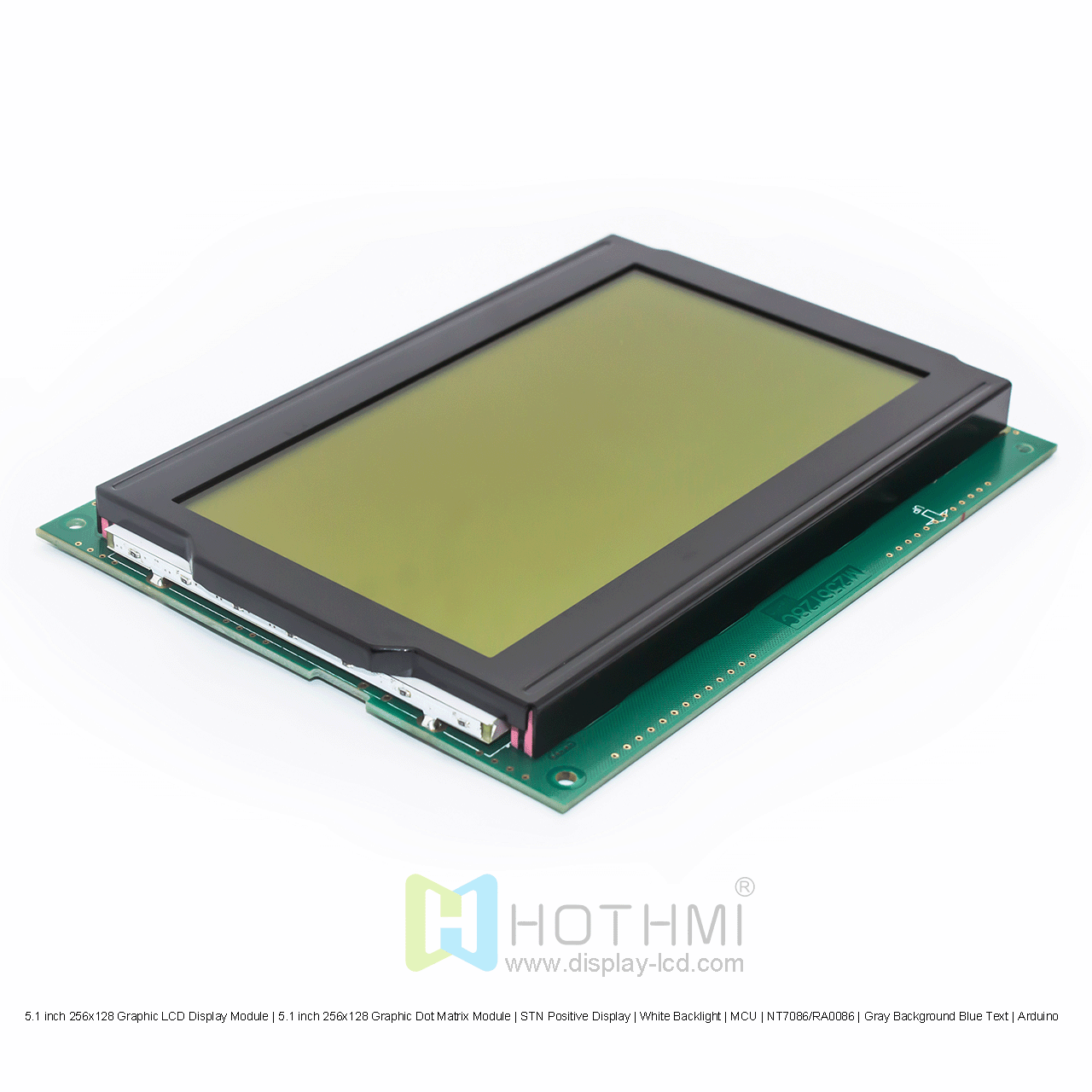

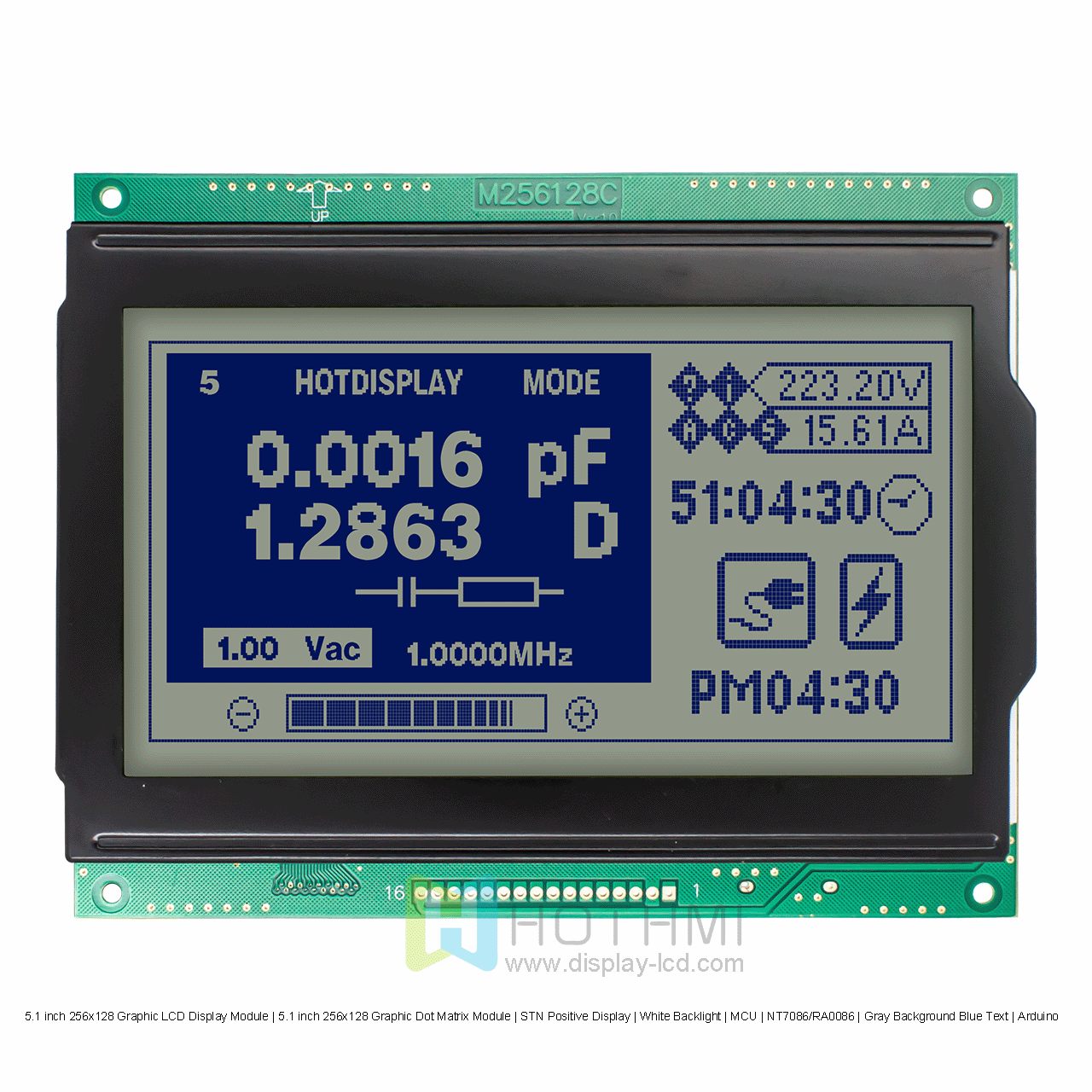

This HOT Display 256x128 Graphic LCD Display Module displays dark blue color pixels on a gray background. This semi-transparent polarizer LCD display is carefully designed. In bright environments, its semi-transparent properties reflect the content to the viewer, making it readable. In darker environments, the bright backlight also allows the viewer to read the display content clearly. It provides optimal visibility and impressive colors when used. The display has a built-in powerful backlight that provides high contrast and ensures readability of all graphics on the screen.
This graphic LCD display module has a built-in negative voltage. It is also fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. The HTM256128C model is designed to withstand harsh operating conditions and will not function properly when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 5V, and is RoHS compliant.
