Product type：Graphic LCD Module
Show contents：192x64
Outline size(mm) ：120.2x62.0x10.0
Size of View Window(mm)：103.92x38.94
Display size(mm) ：97.846x32.462
Point spacing(mm)：0.508x0.508
Product application：Instruments
Visual angle：6H
Connection PIN Number：21PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：AIP31108

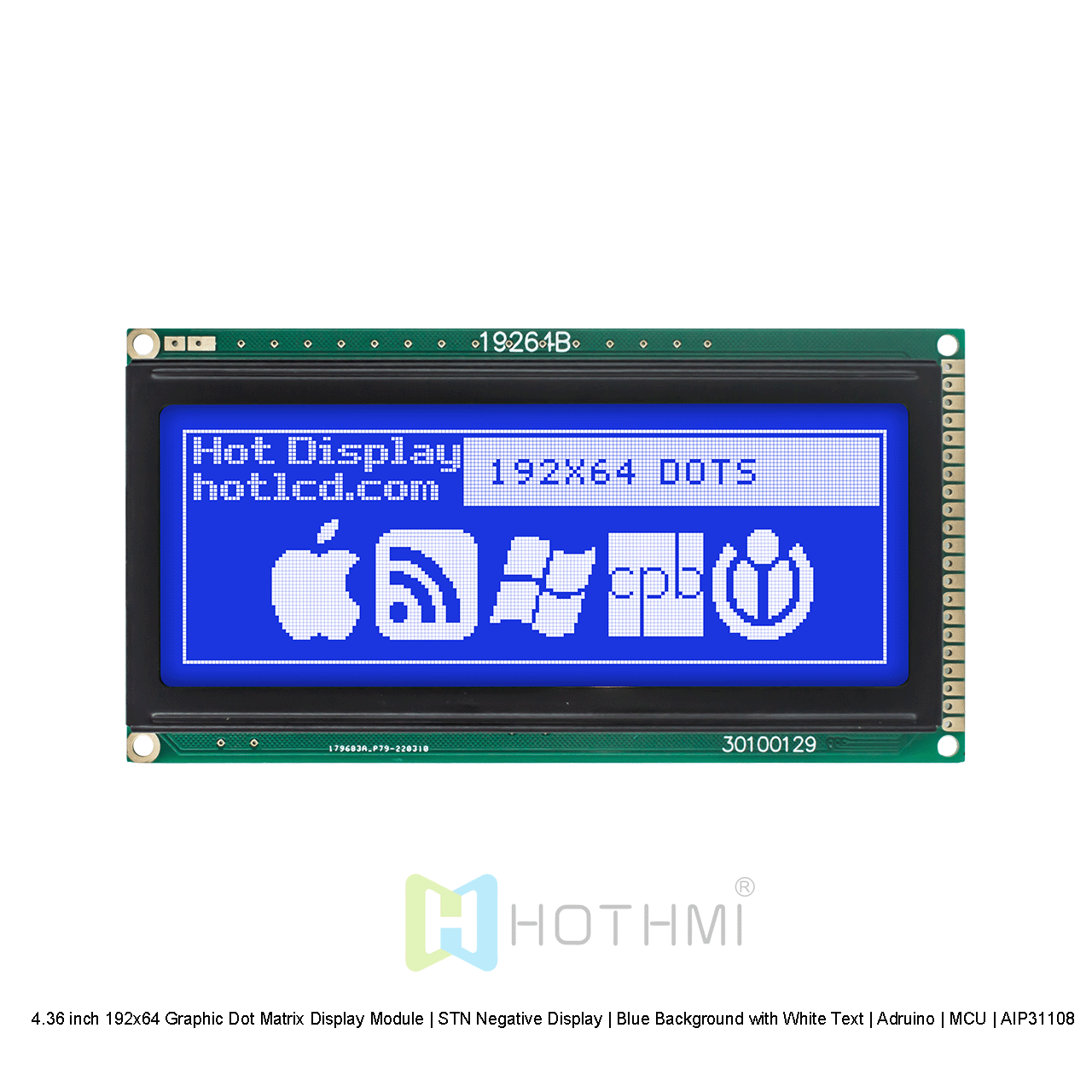

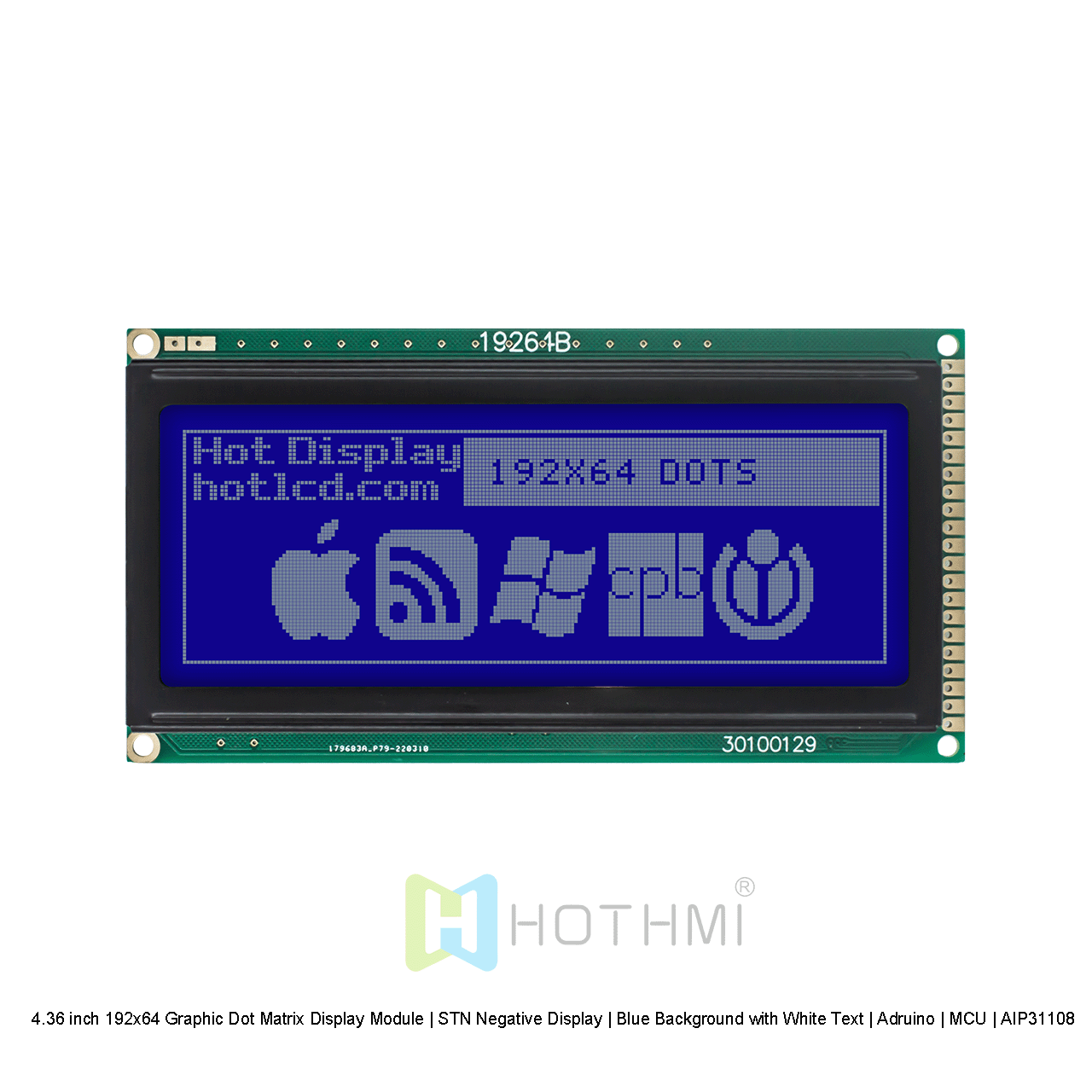

The 4.36 inch 192x64 Graphic Dot Matrix Display Module displays white pixels on a blue background. This fully transparent LCD display is carefully designed, and the LCD has a strong built-in backlight to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh operating conditions and operates well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates on a 5V supply voltage, and is RoHS compliant.
