Product type：Graphic LCD Module
Show contents：132x64
Outline size(mm) ：74x41.7x6.6
Size of View Window(mm)：54x30.2
Display size(mm) ：48.81x26.21
Point spacing(mm)：0.38x0.34
Product application：Instruments
Visual angle：6H
Backlight type or brightness：R/G/B
Connection PIN Number：18PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7565R

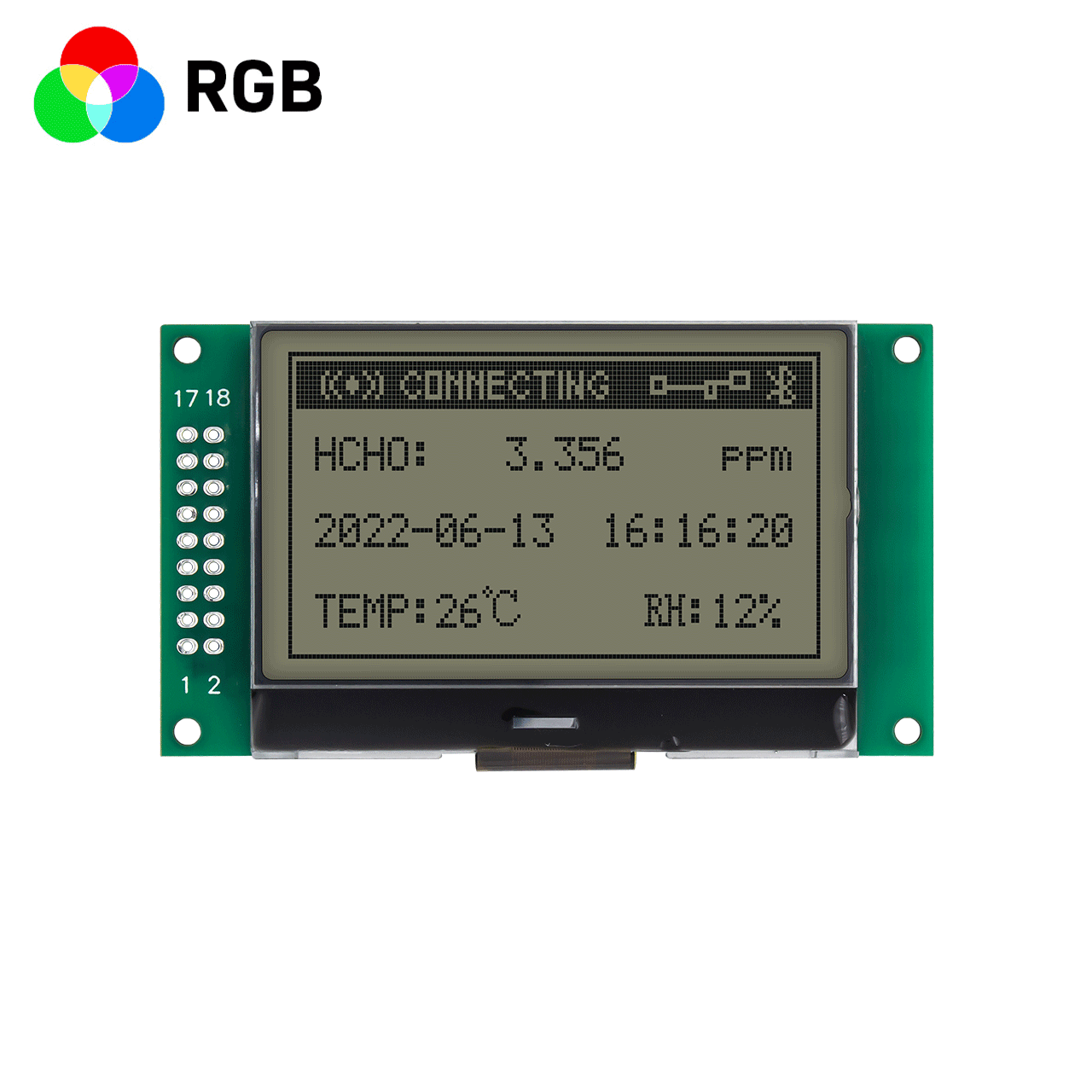

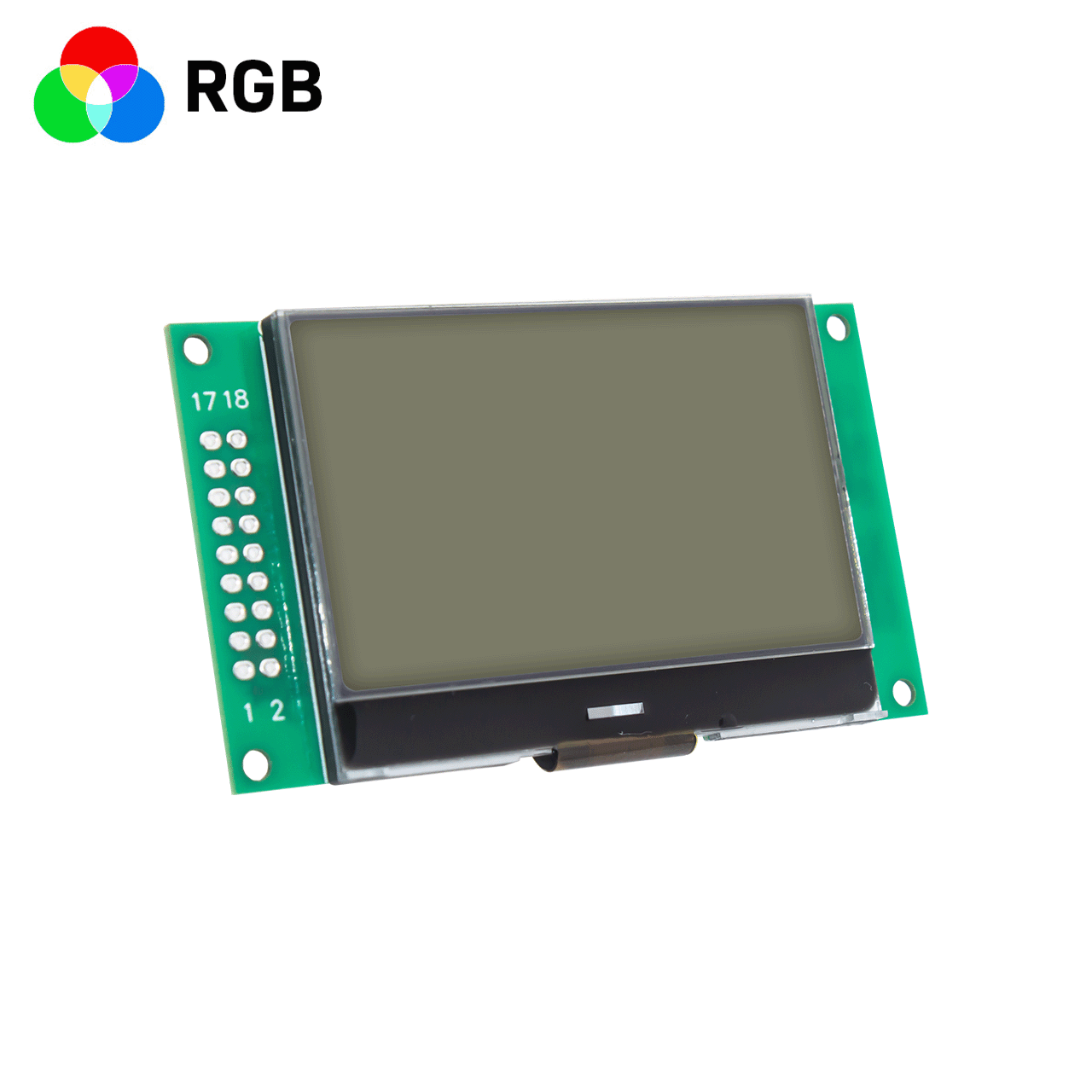

2.4-inch 132x64 LCD graphic LCD module HTM13264C-35S-A5P is this Hot Display132x64 graphic LCD module. It has three backlight colors of red, green and blue to choose from, and displays deep black pixels. This fully transparent LCD monitor is carefully designed. In a bright environment, the fully transparent polarizer makes full use of the backlight, and the displayed image has high contrast and is clearly visible. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read, regardless of lighting conditions.
This graphic LCD display module is created with built-in negative voltage and comes with a built-in ST7565R controller. It is also fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and performs exceptionally well when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates on 5V, and is RoHS compliant.
