Product type：TFT Display
Show contents：240x320
Outline size(mm) ：54.34x77.7x2.4
Size of View Window(mm)：3.2
Display size(mm) ：3.2
Effective size(mm)：48.6x64.8
Product application：handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle
Visual angle：IPS
Backlight type or brightness：350cd/m2
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7789V

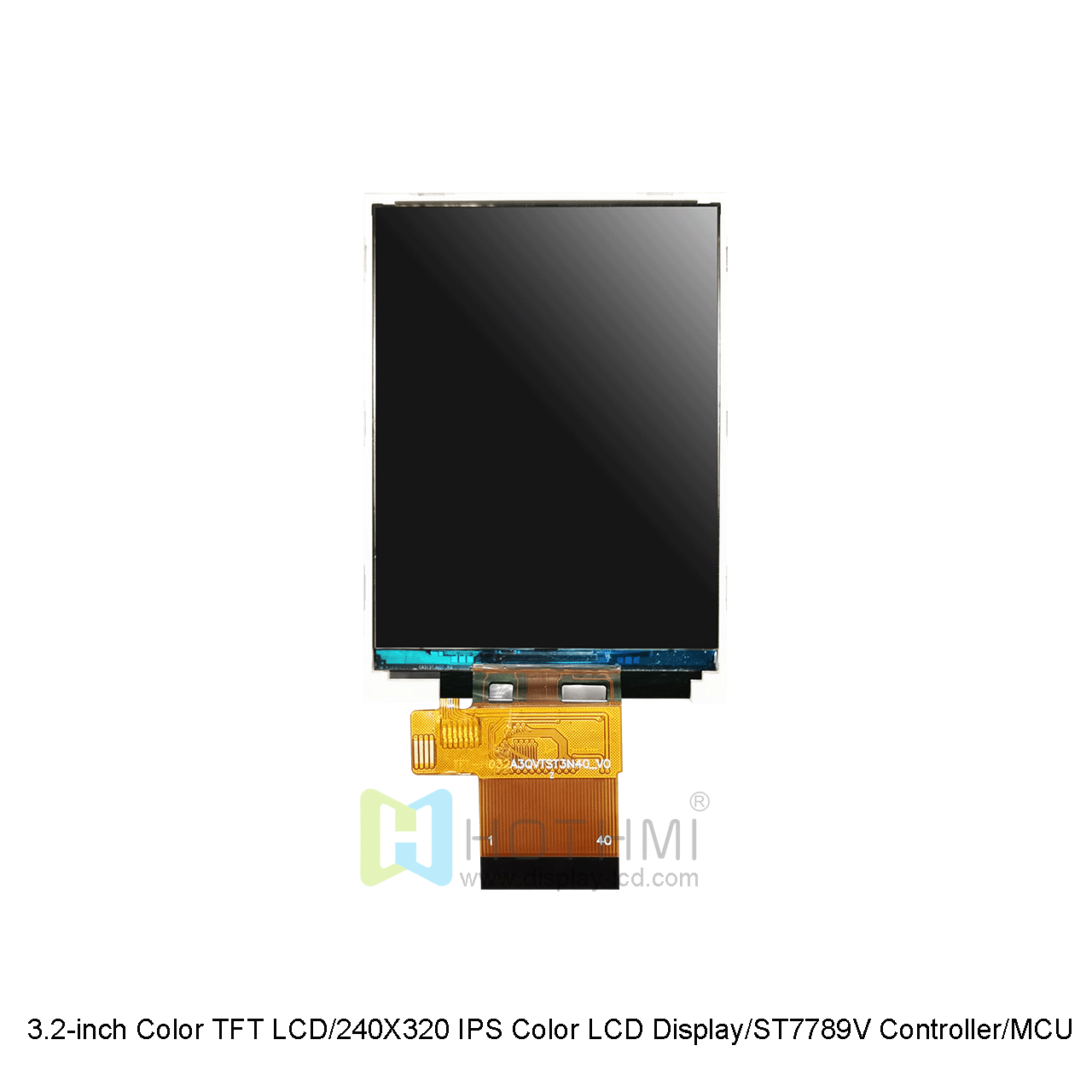

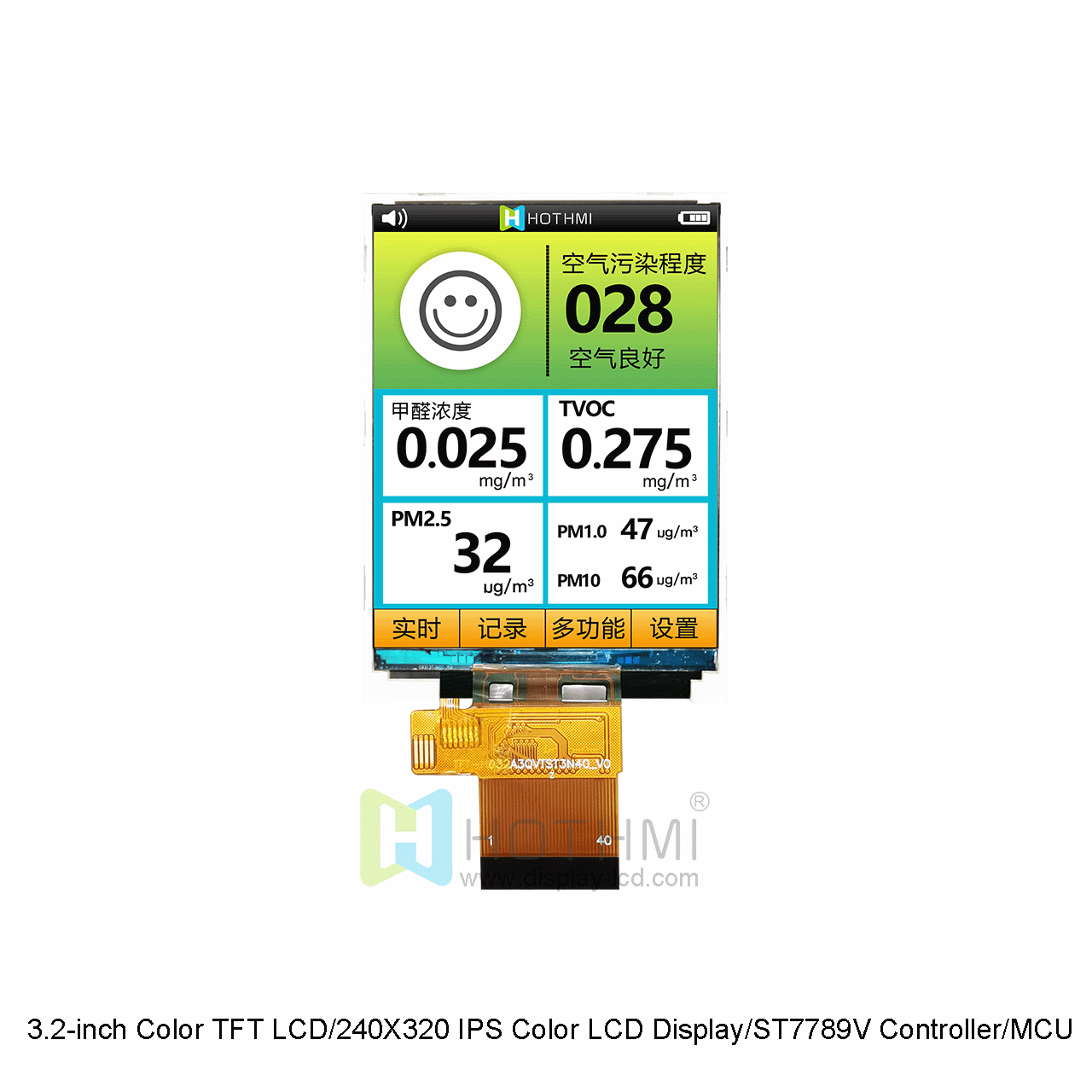

This 3.2-inch IPS TFT display TFT-H032A3QVTST3N40 has a resolution of 240x320 pixels. This TFT has an MCU interface, which provides additional benefits such as high-speed data transfer rates, lower EMI, and reduced wiring complexity. A high-brightness LED backlight is also included, with a typical brightness level of 350 cd/m2. Because this LCD has IPS technology built in, this display provides amazing clarity, excellent color reproduction, better image consistency, and high contrast at full viewing angles.
This tiny TFT can add a touch of color to your product. Use it on wearable devices, as a status alert display, put it on a button, this small display can be installed almost anywhere. In addition, this display is a low-voltage display - both the logic and backlight operate at 3.3v.

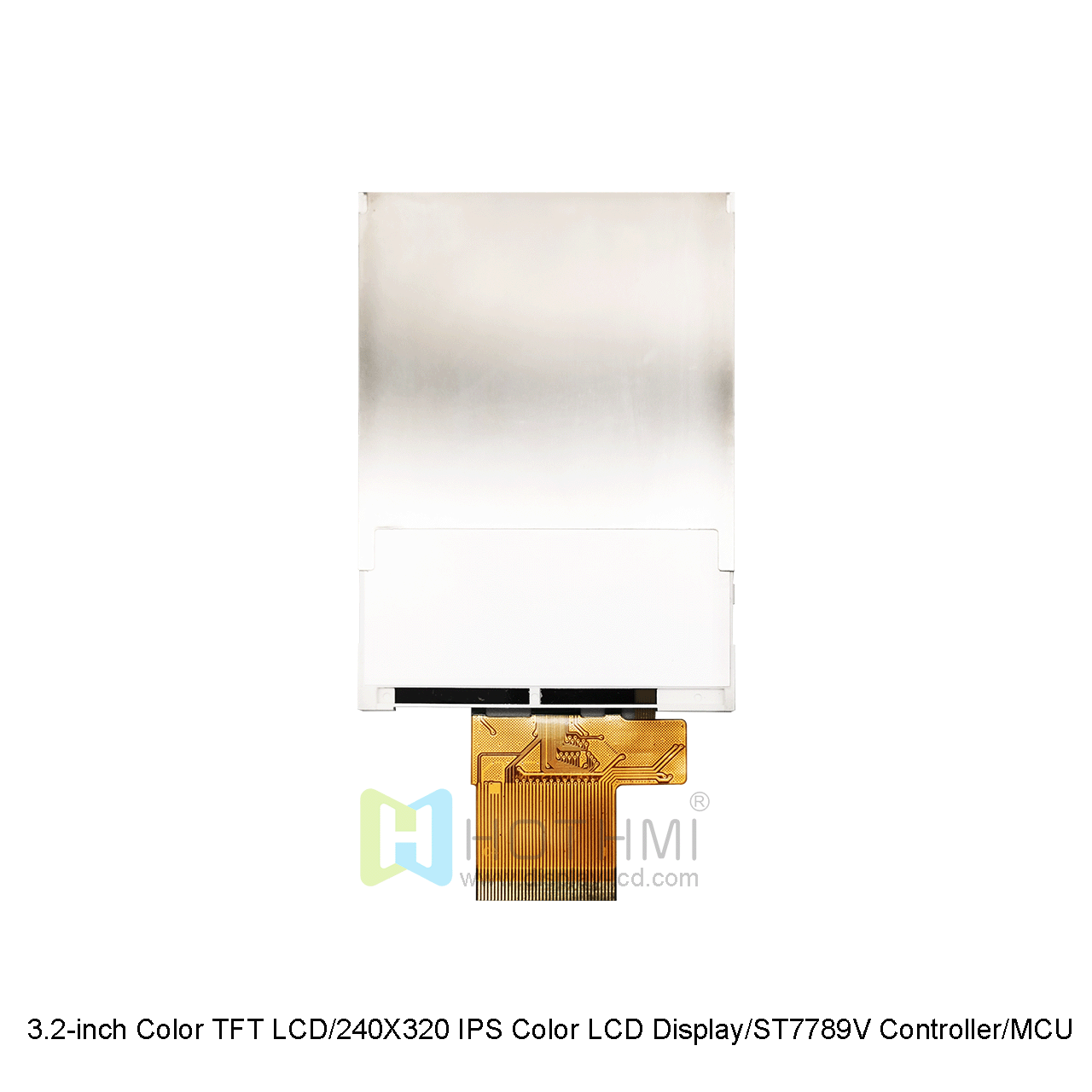

While this transmissive LCD does not include a touchscreen, its impressive quality and 3.3V power supply make it an excellent choice for projects that require high-end visual output but without touchscreen capabilities. This TFT display is powered by a built-in ST7789V driver IC. The driver optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. This LCD features an FPC connection method, ensuring easy electrical connections. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
