Show contents：400x1280
Outline size(mm) ：201.18x65.20x3.3
Size of View Window(mm)：7.8
Display size(mm) ：7.8
Effective size(mm)：190.08x59.4
Product application：industrial control systems, handheld electronic devices,
Visual angle：IPS
Backlight type or brightness：750cd/m2
Connection PIN Number：FPC-40 pin
Interface mode：MIPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7703

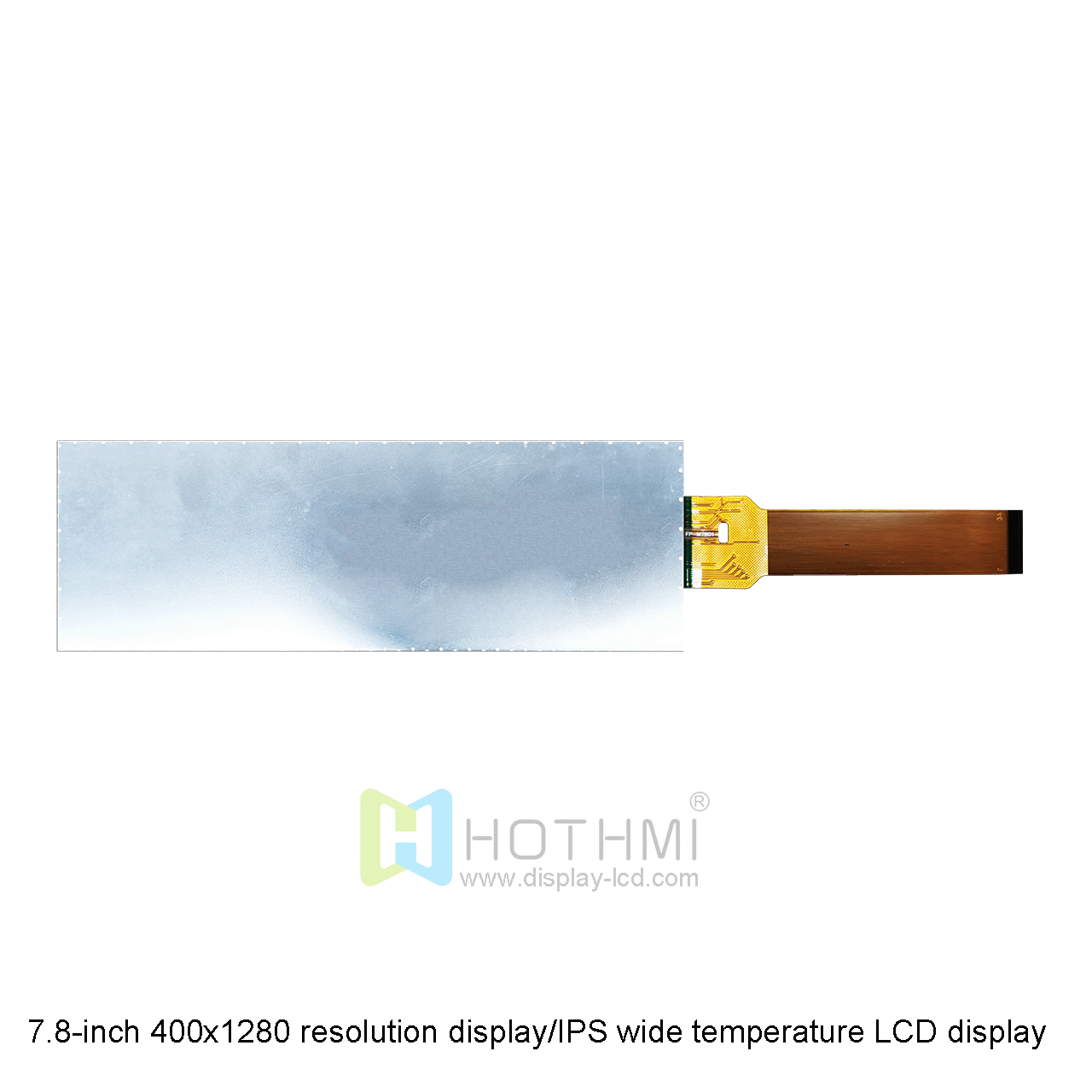

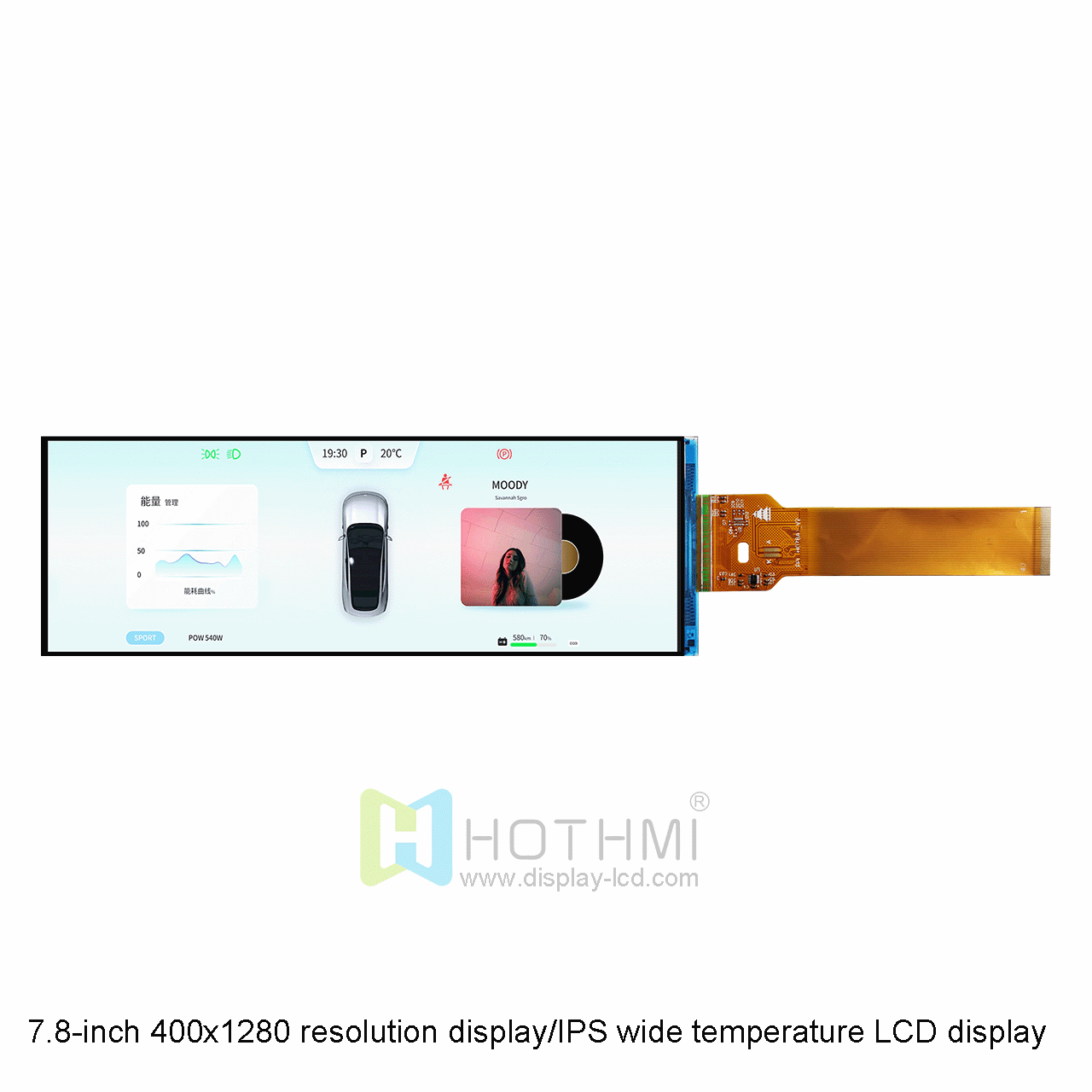

This standard 7.8 display TFT-H078A1ZAIST7N40 has a resolution of 400x1280 pixels and IPS full viewing angle. No matter which direction you watch it from, it has a high-quality effect. The brightness is 750cd/m2 and it is visible in sunlight. The compact size, 3.3V low voltage power supply and impressive display quality make this display an excellent choice for projects without touch function.
This 7.0-inch LCD display uses a 40PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by ST7703 or compatible controller. The controller optimizes the function of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include Internet of Things, industrial automation, consumer electronics, test and measurement, and handheld devices. Due to their compatibility with Android boards/RK boards, they are also perfect for DIY or prototype projects. The MIPI interface enables fast and efficient communication between Android boards/RKs, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
