Product type：TFT Display
Show contents：320x480
Outline size(mm) ：54.66x83.0x3.8
Size of View Window(mm)：3.5
Display size(mm) ：3.5
Effective size(mm)：48.96x73.44
Product application：industrial control systems, handheld electronic devices,
Visual angle：12H
Backlight type or brightness：400cd/m2
Connection PIN Number：FPC-15 pin
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7796<TFT>，GT911<CTP>

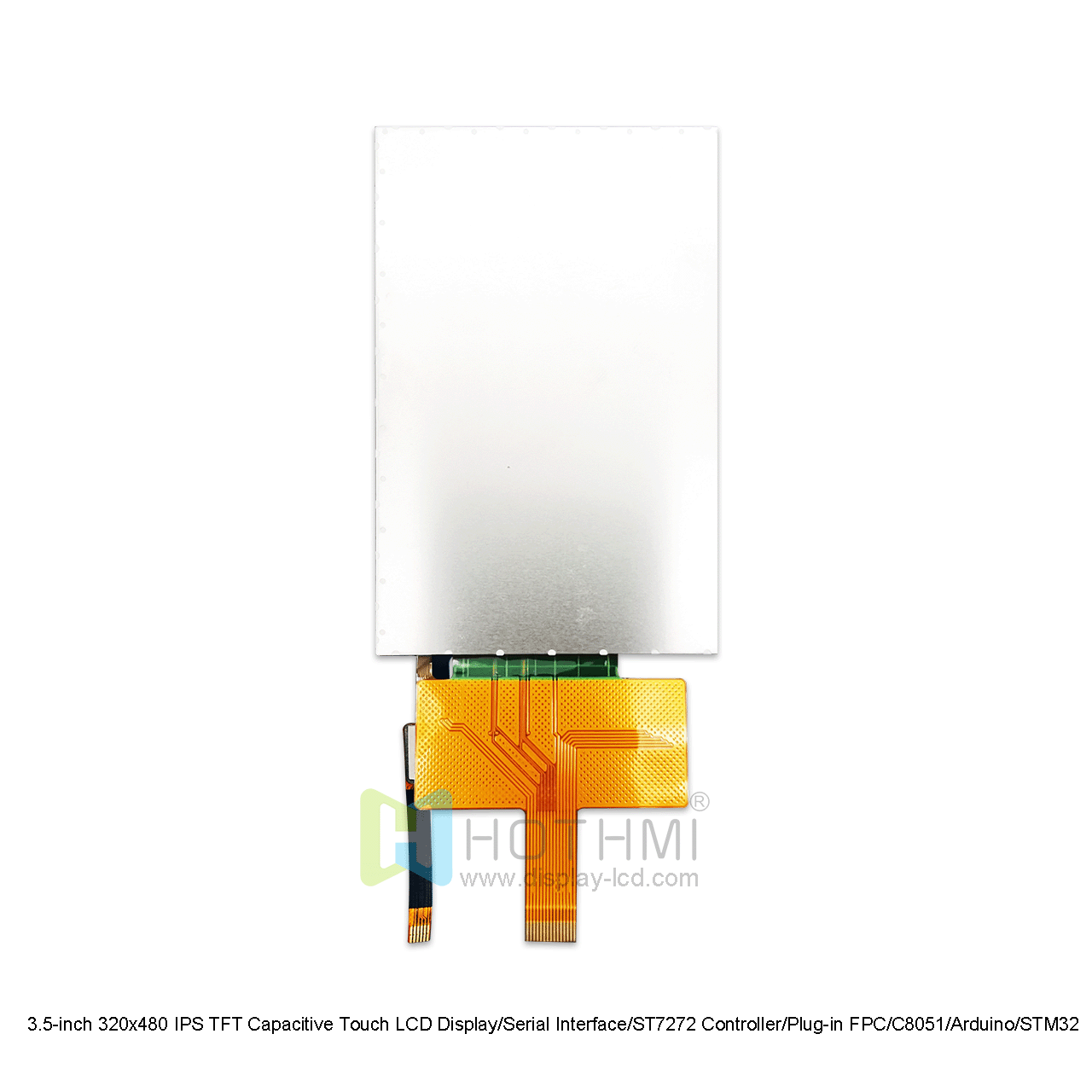

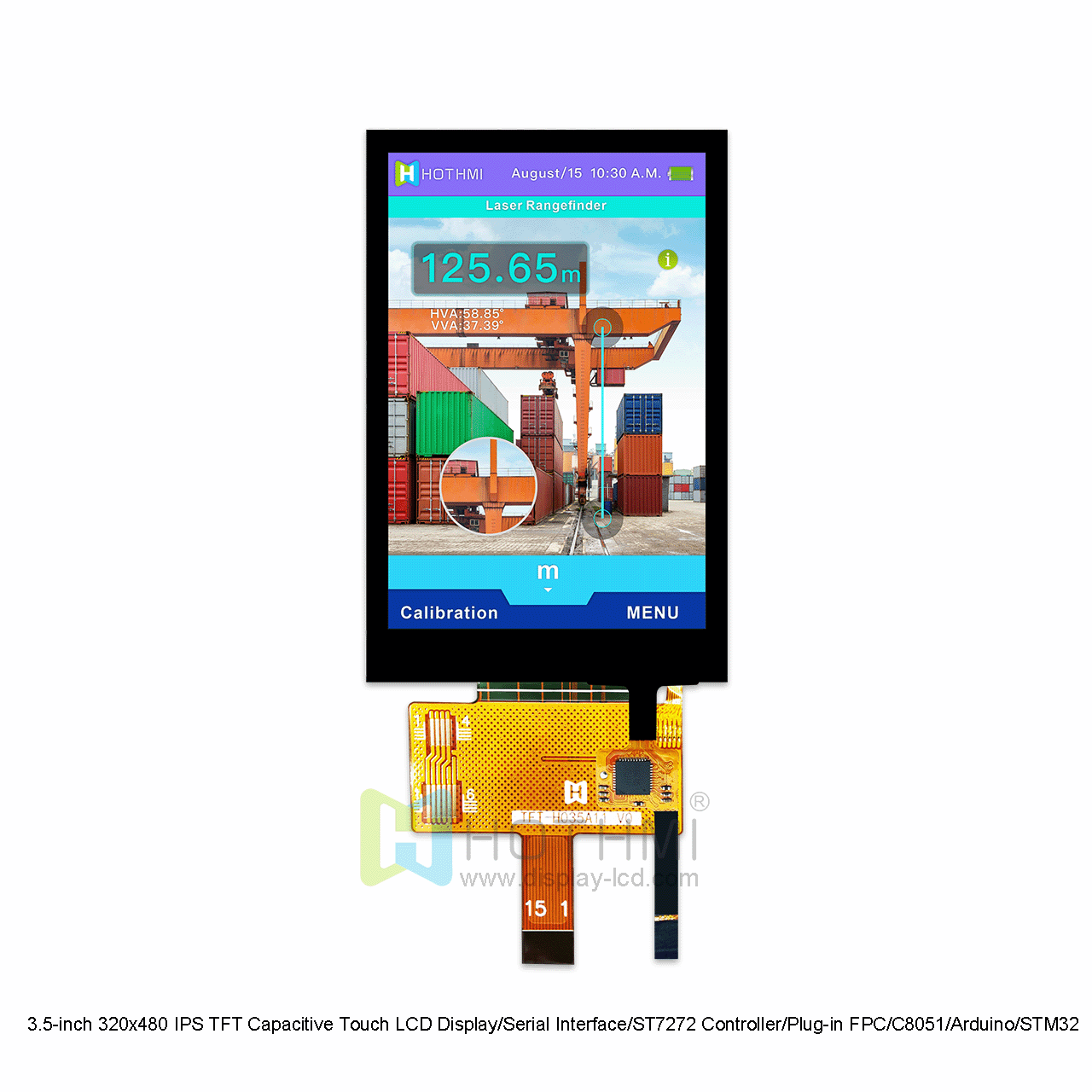

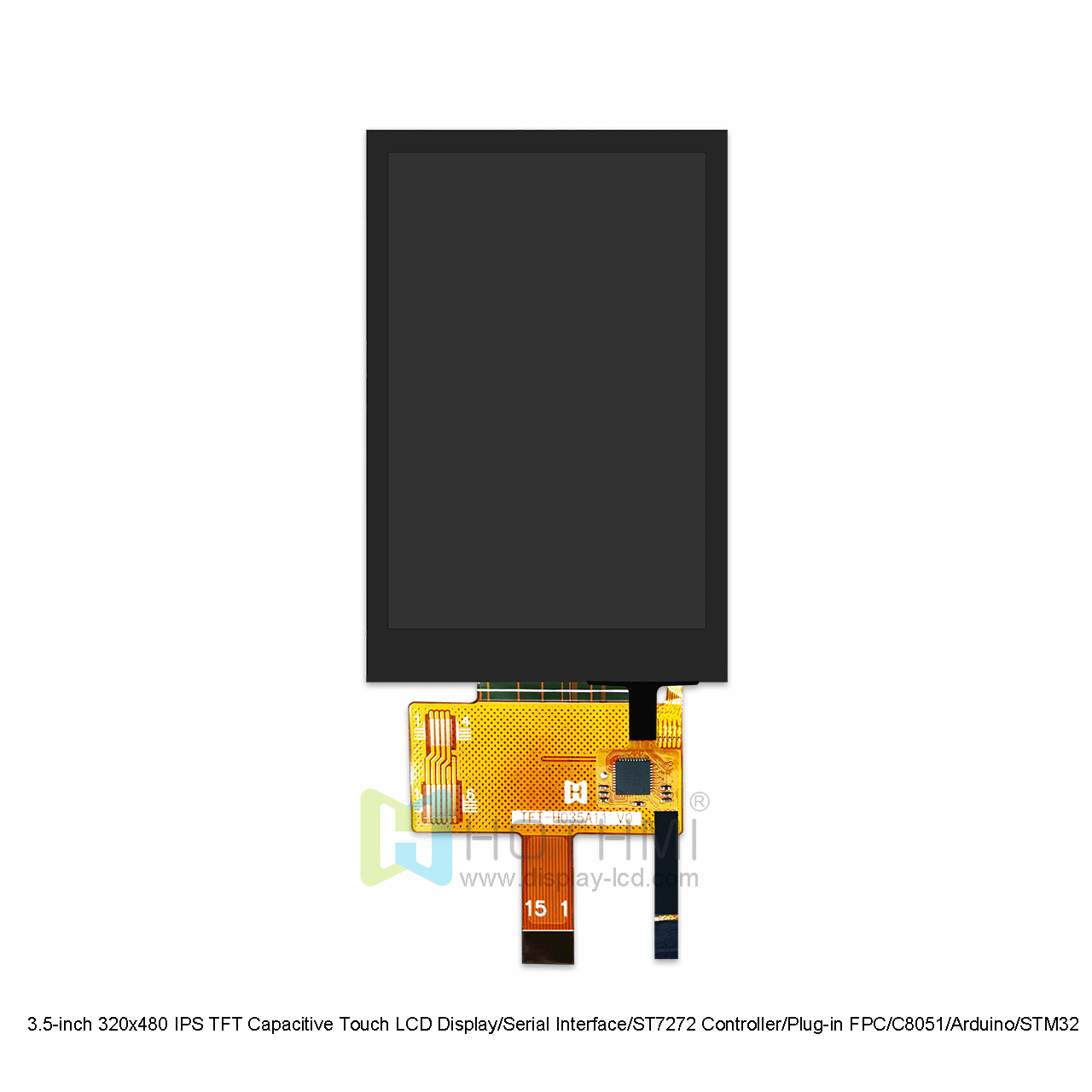

This standard 3.5-inch TFT LCD display TFT-H035A11HVTST5C15 has a resolution of 320x480 pixels, 12h(U60/D60/R70/L70) viewing angle, and high-quality viewing effects regardless of the direction. The standard brightness LED backlight brightness is 400 nits. The compact size, 3.3V low-voltage power supply, and impressive display quality of this display make it an excellent choice for projects that require portrait mode visual output without touch function.
This 3.5-inch LCD display uses a 15PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by the ST7796 controller. It can provide excellent performance and reliability. The controller optimizes the functions of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. They are also great for DIY or prototyping projects due to their compatibility with Arduino/STM32. The 3-Line or 4-Line serial interface enables fast and efficient communication between Arduino/STM32 displays, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
